ACUIX IP Rugged Housing and Dome
J4
Ethernet network
connector
J1
Terminal block with
power supply pins
J6
Terminal block with
alarm activation pins

Connecting the Wiring to the Housing Interface Board

14

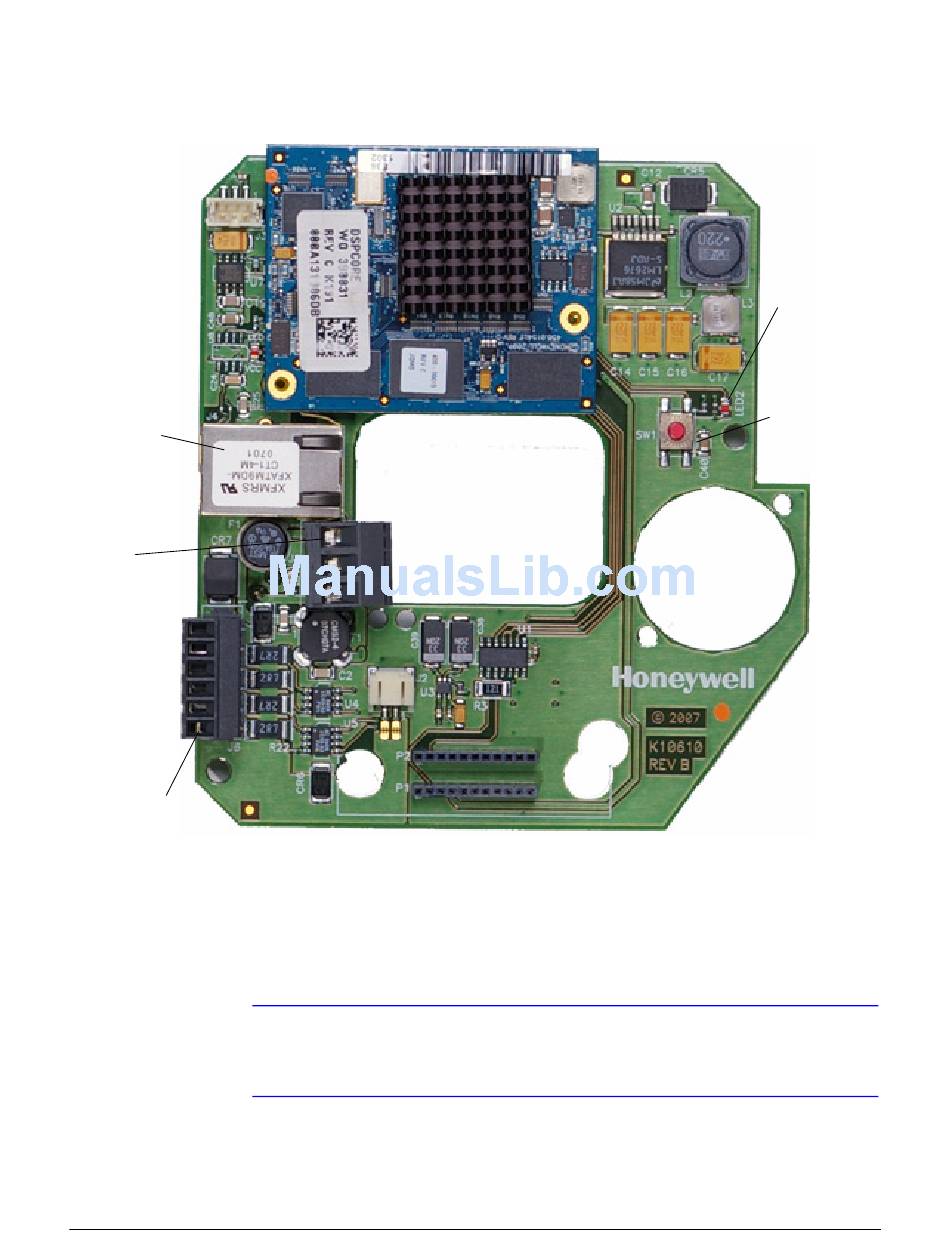

Figure 1-1
ACUIX IP Housing Interface Board Layout
Wiring access hole
Note
The terminal strips accept 16–30 AWG wire. If larger or smaller field-run wire
is required, a 16–30 AWG wire must be spliced onto the field wire for insertion
into the terminal strip.
1.
Route the field wiring (power, alarm and CAT5 network cable):
a.
Through the field wiring access hole in the housing, and
LED2
Blinks to indicate
the dome is
rebooting
SW1
Restore to factory
defaults
