This Manual is Designed to Make it as Easy as Possible
to Assemble, Install, Operate, and Maintain This Ceiling Fan

Tools Needed for Assembly

• One Phillips head screwdriver
(supplied)
• One stepladder
▲WARNING
This fan must be installed be a licensed electrician.
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in fi nding your place should you be interrupted.
▲WARNING
Do not install or use fan if any part is damaged or
missing. This product is designed to use only those
parts supplied with this product and/or any accessories
designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not
designated for use with this product could result in
personal injury or property damage.
IF ANY PART IS DAMAGED OR MISSING,
CALL: 1 3 0 0 4 6 9 3 2 6

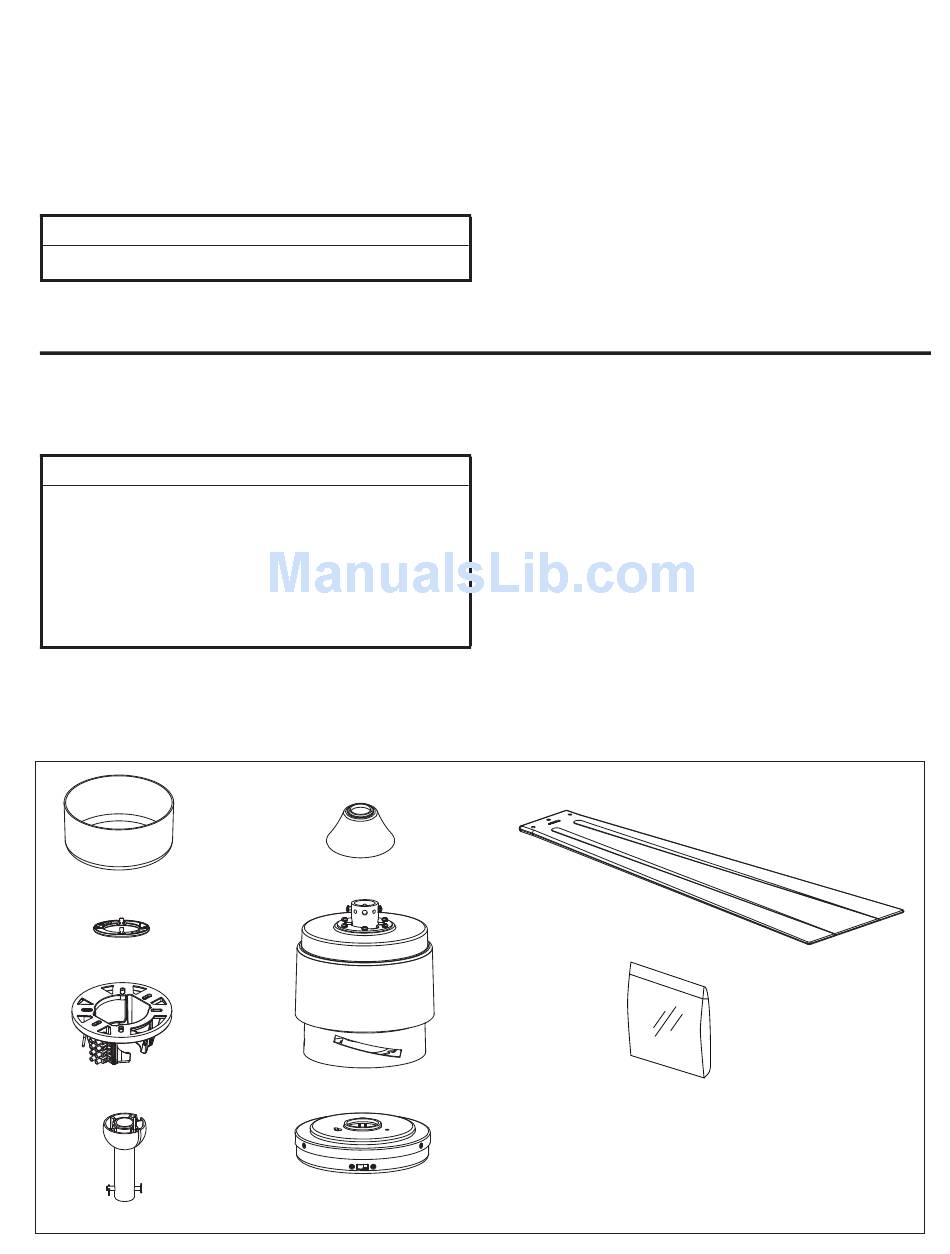

1. Check to see that you have received the following
parts:
NOTE: If you are uncertain of part description, refer to
exploded view illustration. (Figure 1, page 11)
Ceiling Canopy
Canopy
Screw Cover
Hanger Bracket
Downrod/
Hanger Ball
Assembly
• One small blade
screwdriver
• One wire stripper

Unpacking Instructions

Motor Coupling Cover
Fan Motor Assembly
Switch Cup Cover Assembly
Materials
Wiring and connectors must be of type required by
local regulations. The minimum wire would be a 3-
conductor (2-wire with ground).
• Fan Motor Assembly
• Downrod/Hanger Ball
Assembly
• Hanger Bracket
• Ceiling Canopy
• Canopy Screw Cover
• Motor Coupling Cover
• Switch Cup Cover Assembly
• Blade Set
Blade Set
Hardware Bags
3
• Hardware bags:
– 3 / -24 x 13 mm (blade to motor hub)
16
washer-head screws & fiber washers
– Phillips screwdriver, 10cm
– Blade Balance Kit
