The Sandella
®
Ceiling Fan
SANDELLA
Fan
®

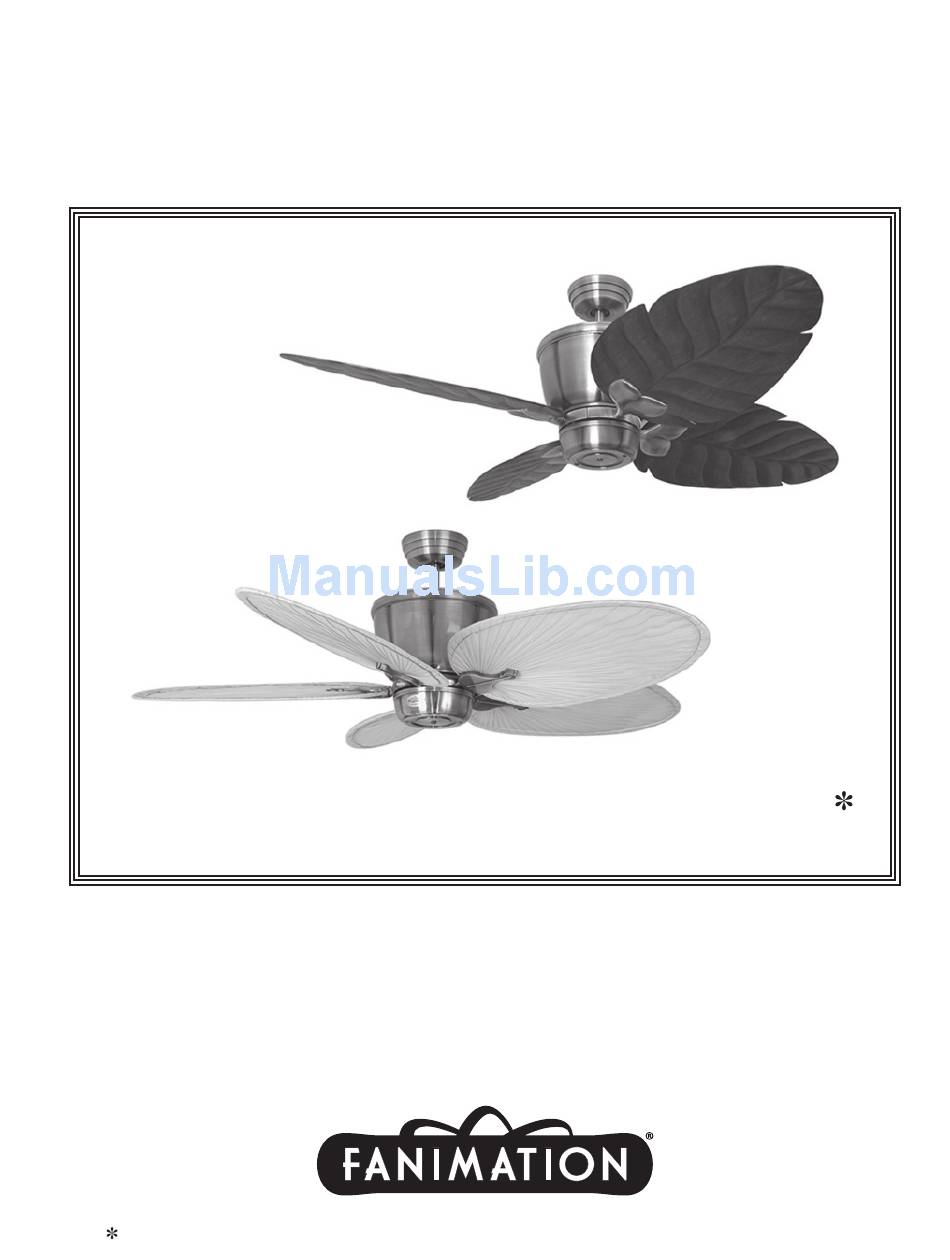

shown with
Wooden Blade Holders
SANDELLA
Fan
®
shown with
Traditional Blade Holders
Standard & Damp Location Models
Weight 34 lbs.
Model No. FP1820**
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
Damp Location Model; Top of fan is marked, "Suitable For Use In Damp Locations"
Advertisement
Table of Contents
Related Manuals for Fanimation Sandella FP1820 Series
Summary of Contents for Fanimation Sandella FP1820 Series
-
Page 1: Ceiling Fan
Wooden Blade Holders SANDELLA ® shown with Traditional Blade Holders Standard & Damp Location Models Weight 34 lbs. Model No. FP1820** OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS Damp Location Model; Top of fan is marked, “Suitable For Use In Damp Locations”... -
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Unpacking Instructions
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
1. Fan & Light, 3-speed, reversable remote control (C22), see page 7. NOTE: If you are using a Fanimation Light Fixture with your fan, see Ceiling Fan Light Kit Installation Instructions (packed with light kit) for wiring. How to Assemble Your Ceiling Fan 1. - Page 5 How to Assemble Your Ceiling Fan (cont'd) The Clevis Pin must go through the holes in the Downrod Support and the holes in the Downrod. Be sure to push the straight leg of the Hairpin Clip through the hole near the end of the Clevis Pin until the curved portion of the Hairpin Clip snaps around the Clevis pin.
-
Page 6: How To Hang Your Ceiling Fan
How to Hang Your Ceiling Fan ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire And Operate Your C22 Remote Control
How to Wire and Operate Your C22 Remote Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualifi... -
Page 8: How To Wire And Operate Your C23 Wall Control
How to Wire and Operate Your C23 Wall Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualifi... -
Page 9: Installing The Canopy Housing
Installing the Canopy Housing NOTE: This step is applicable after the neccessary wiring is completed. (see page 7 or 8) ▲WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the canopy housing and not pinched between the housing and the ceiling. 1. -
Page 10: How To Install The Wood Blade Holders
How to Install the Wood Blade Holders 1. Lay the side of the blade holder on a flat surface with the inside of the blade holder facing up. This is the side with the threaded posts. 2. Position the wood blade (B4000 Series only) over the blade holder with the threaded posts showing. -
Page 11: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. -
Page 12: Parts List
Before discarding packaging materials, be certain all parts have been removed When ordering repair parts, always give the following information: Contact your retail store for repair parts. Parts List Model #FP1820** Description How To Order Parts • Part Number • Part Description •... -
Page 13: Exploded-View Drawing
The Sandella Side B Side A NOTE: The illustration shown is not to scale or its actual confi guration may vary. Wires partially removed for clarity. FP1820** ® Exploded-View Ground Wire (Green) Figure 18 Ground Wire (Green) FAN OFF... - Page 14 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 773-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/01...
