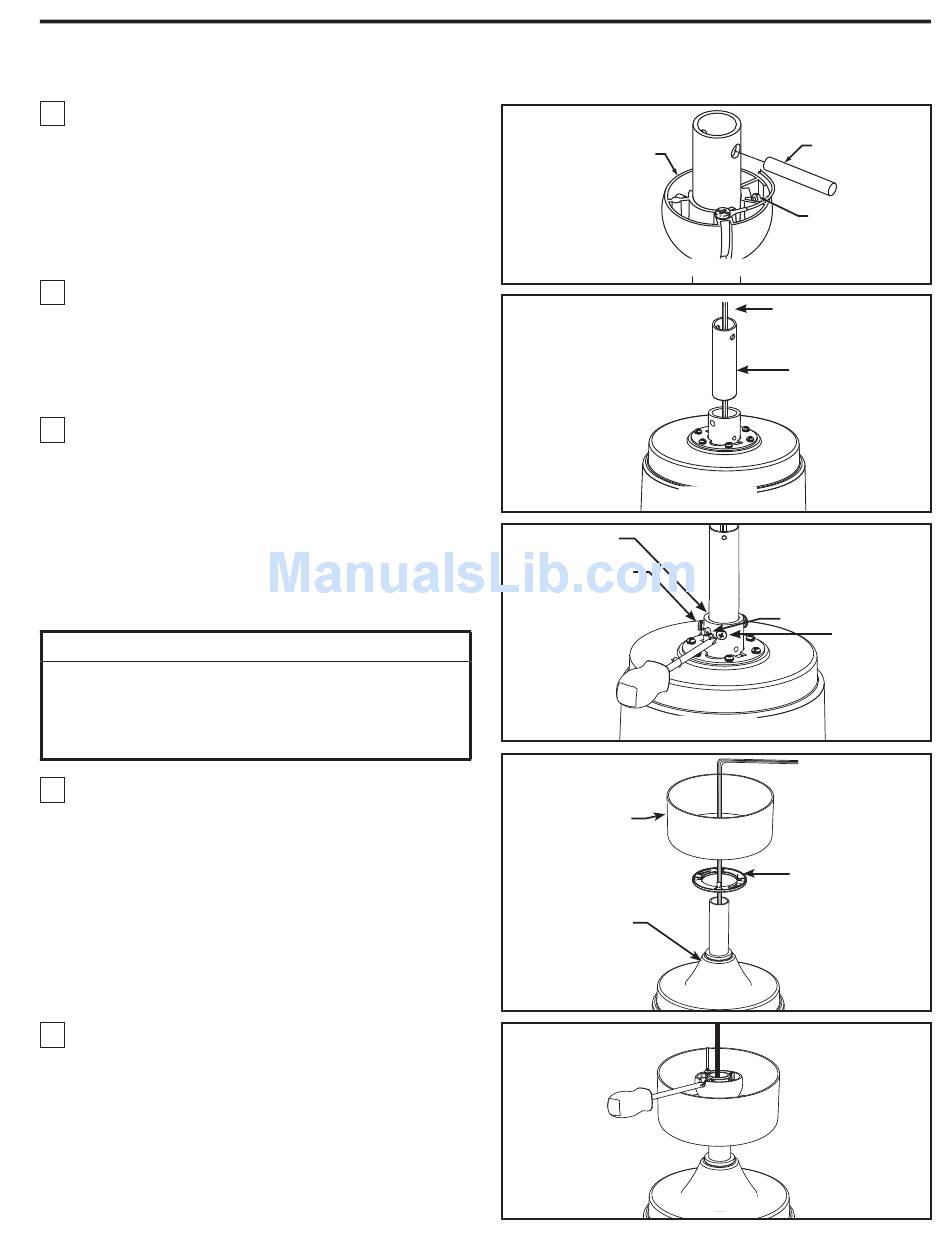

1. Remove the hanger ball by loosening the setscrew

in the hanger ball until the ball falls freely down the

downrod. Remove the pin from the downrod, then

remove the hanger ball. Retain the pin and hanger

ball for reinstallation in Step 5. (Figure 1)

2. The fan comes with green/yellow, blue, brown and

orange 2 m length wires. Separate and untwist the four

wires. Route the wires through the downrod. (Figure 2)

NOTE: You will be using either the 15 cm downrod supplied

with your fan or an optional longer downrod purchased

separately for high ceilings.

3. Loosen the two setscrews in the downrod support.

Align the clevis pin holes in the downrod with the

holes in the downrod support. Install the clevis pin

and secure with the hairpin clip. Be sure to push the

straight leg of the hairpin clip through the hole near

the end of the clevis pin until the curved portion of the

hairpin clip snaps around the clevis pin. The hairpin

clip must be properly installed to prevent the clevis

pin from working loose. Pull on the downrod to make

sure the clevis pin is properly installed. (Figure 3)

▲WARNING

It is critical that the clevis pin in the downrod support

is properly installed and the setscrews and nuts are

securely tightened. Failure to verify that the pin and

setscrews are properly installed could result in the fan

falling.

4. Route wires through motor coupling cover, canopy

screw cover and ceiling canopy with open side facing

up. (Figure 4)

5. Reinstall the hanger ball on the downrod as follows.

Route the four 2 m length wires and cable through the

hanger ball. Position the pin through the two holes in

the downrod and align the hanger ball so the pin is

captured in the groove in the top of the hanger ball.

Pull the hanger ball up tight against the pin. Securely

tighten the setscrew in the hanger ball. A loose

setscrew could create fan wobble. (Figure 5)
