Ledj LEDJ283A User Manual

Exterior fixture
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

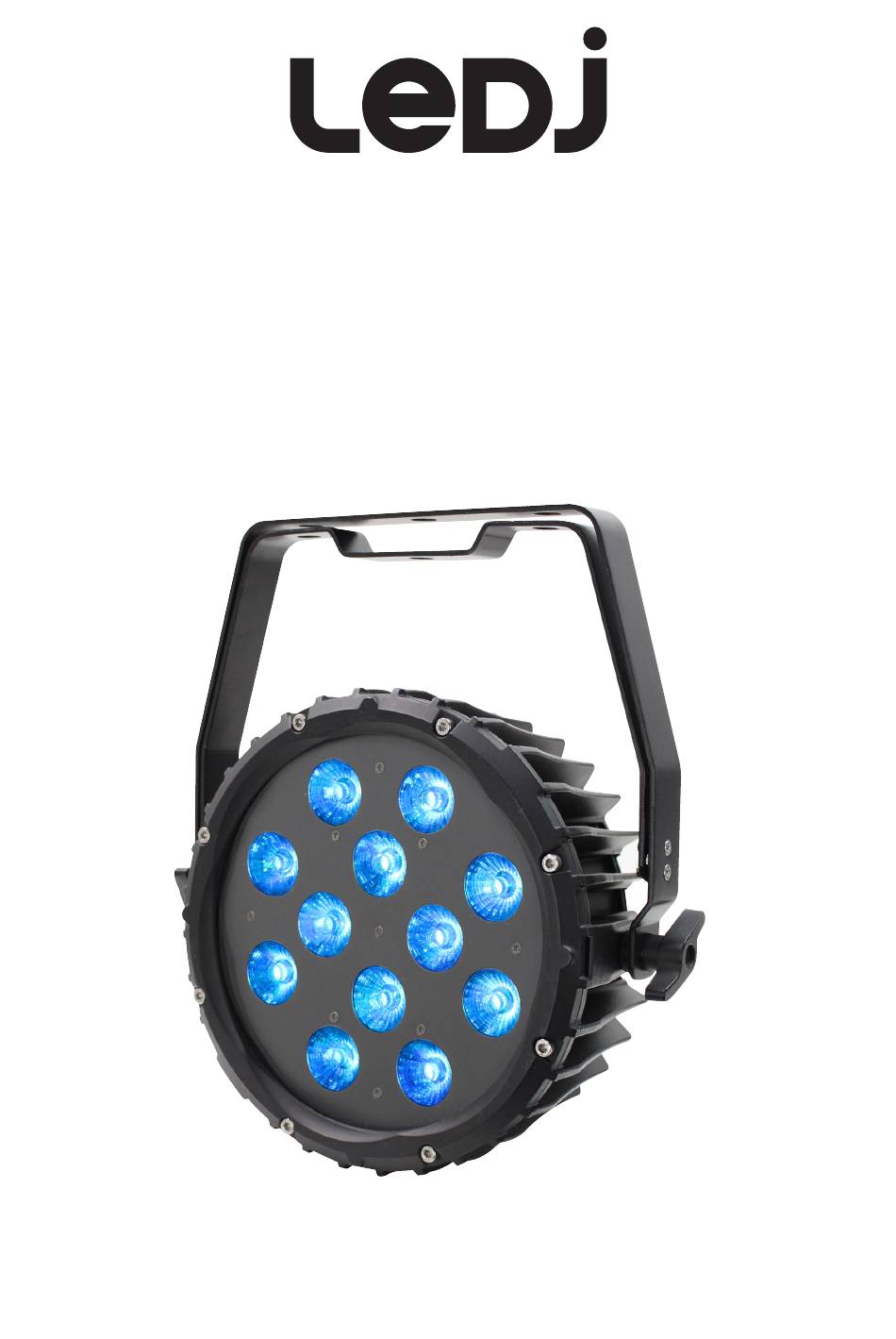

Spectra Par 12HEX10 PRO
Exterior Fixture
User Manual
Order code: LEDJ283A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEDJ283A and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj LEDJ283A

Summary of Contents for Ledj LEDJ283A

  • Page 1 Spectra Par 12HEX10 PRO Exterior Fixture User Manual Order code: LEDJ283A...

  • Page 2: Safety Advice

    Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •...
  • Page 3 0 - 100% dimming and variable strobe Specifications Spectra Par 12HEX10 PRO Power consumption 130W Power supply 100~240V, 50/60Hz Dimensions 327 x 308 x 139mm Weight 4.53kg Order code LEDJ283A 25° - Lux FULL ON 12800 3200 1420 1700 3720 86.7 48.8 31.2 5400...
  • Page 4 Operating instructions 10 channel mode: IMPORTANT! PLEASE NOTE: The LED display Channel Value Function for this fixture has a menu locking function 000-255 Master dimmer (0-100%) where after 30 seconds of inactivity it will lock. 000-255 Red (0-100%) To unlock the menu hold the “MODE” and 000-255 Green (0-100%) “DOWN”...

  • Page 5: Master/Slave Mode

    Operating instructions Built-in program mode: Pr. 0 1 To access the built-in program mode press “MODE” until the display shows on the LED display. Press “SETUP” to confirm the setting. Use the “UP” and “DOWN” buttons to select a program from Pr.

  • Page 6: Auto Mode

    Operating instructions Auto mode: Auto To access the auto mode press “MODE” until the display shows on the LED display. The fixture Pr. 0 2 Pr. 1 2 will now run through its built in programs . To exit out of any of the above options, Pr.

  • Page 7: Dmx Setup

    DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address.

  • Page 8: Line Termination

    DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing.

  • Page 9: Power Linking

    Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be connected together. The maximum number of fixtures that can be connected is 12 fixtures @ 240V or 6 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.

  • Page 10: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life.
  • Page 11 www.prolight.co.uk Spectra Par 12HEX10 PRO User Manual...
  • Page 12 www.prolight.co.uk Spectra Par 12HEX10 PRO User Manual...

This manual is also suitable for:

Spectra par 12hex10 pro
