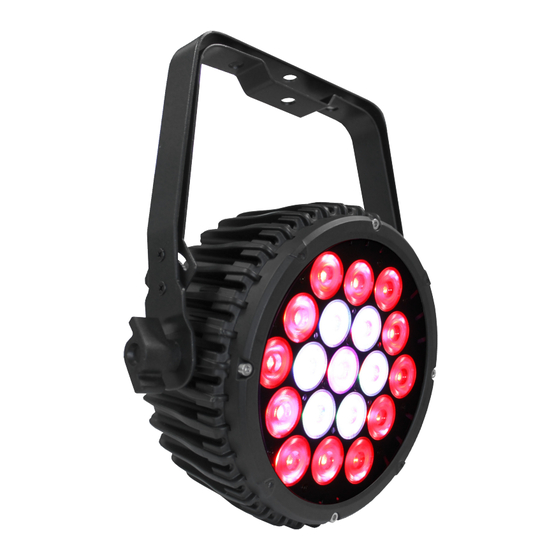

INTENSE 19T3 RGB
LED SLIM PANEL
Order code: LEDJ255
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEDJ255 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj LEDJ255

Summary of Contents for Ledj LEDJ255

  • Page 1 INTENSE 19T3 RGB LED SLIM PANEL Order code: LEDJ255 User manual...

  • Page 2: Safety Instructions

    LEDJ Intense 19T3 RGB LED Slim Panel Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    LEDJ Intense 19T3 RGB LED Slim Panel Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

  • Page 4: Technical Specifications

    LEDJ Intense 19T3 RGB LED Slim Panel Technical specifications You should find inside the LEDJ carton the following items: 1, Intense 19T3 RGB LED Slim Panel 2, Instruction manual 3, Power cable Technical Specifications: DMX Channels: 3, 6, 9 or 11 selectable...
  • Page 5 LEDJ Intense 19T3 RGB LED Slim Panel Operations DMX mode: To access the DMX mode, press the “MODE” button on the LED display to show “d001” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the desired DMX address setting from “d001 - d512”.
  • Page 6 LEDJ Intense 19T3 RGB LED Slim Panel Operations Sound active mode To access the sound active mode, press the “MODE” button on the LED display to show “SU00” on the LED display. Now use the “UP” and “DOWN” buttons to set sound sensitivity level from 00-31.
  • Page 7 LEDJ Intense 19T3 RGB LED Slim Panel DMX Charts 9 channel DMX chart: CHANNEL VALUE FUNCTION 0-255 Red 1 0-100% 0-255 Green 1 0-100% 0-255 Blue 1 0-100% 0-255 Red 2 0-100% 0-255 Green 2 0-100% 0-255 Blue 2 0-100%...
  • Page 8 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Intense 19T3 RGB can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 9 LEDJ Intense 19T3 RGB LED Slim Panel DMX Set up DATA Cable (DMX cable) requirements (for DMX operation): • The Intense Series can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 10 LEDJ Intense 19T3 RGB LED Slim Panel Notes Notes:...
  • Page 11 LEDJ Intense 19T3 RGB LED Slim Panel Notes Notes:...
