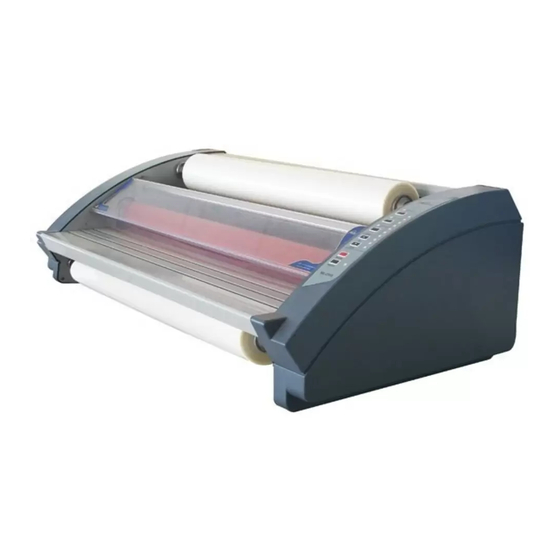

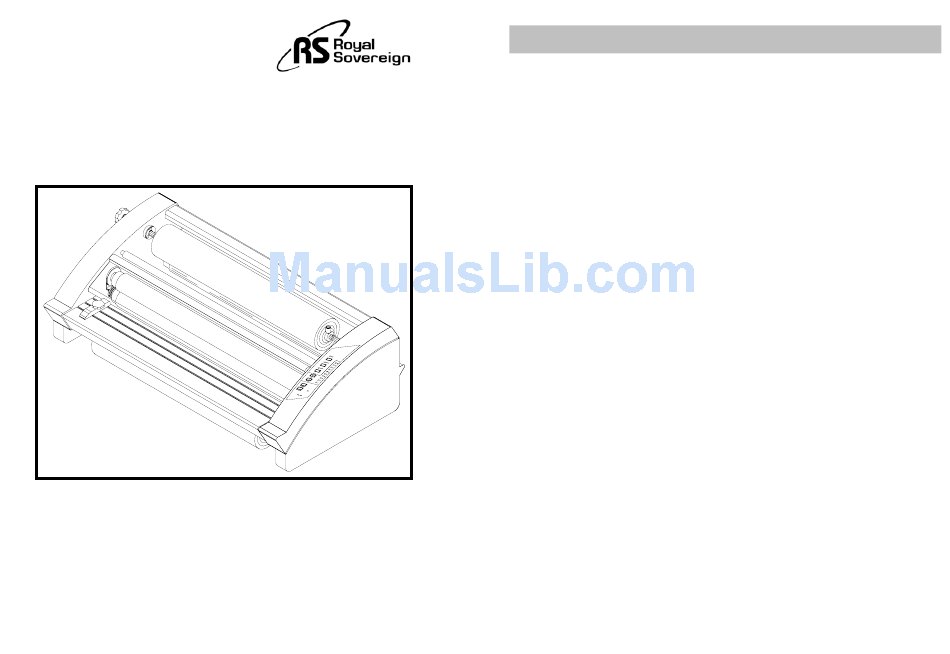

TABLE TOP LAMINATOR
RSL-2701 OWNER'S MANUAL
Please read instructions carefully before use.

TABLE OF CONTENTS

▣Introduction ----------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 3
▣Safety Precautions --------------------------------------------------------------------------- 4
▣Parts -------------------------------------------------------------------------------------------- 5
▣Features Guide ------------------------------------------------------------------------------- 6
--------------------------------------------------------------------
------------------------------------------------------------
▣Maintenance --------------------------------------------------------------------------------- 11
------------------------------------------------------------------- 12
▣Specifications ------------------------------------------------------------------------------- 13
----------------------------------------------------------------------------------- 14
2
8
8

Advertisement

loading

Related Manuals for Royal Sovereign RSL-2701

Summary of Contents for Royal Sovereign RSL-2701

  • Page 1: Table Of Contents

    TABLE OF CONTENTS ▣Introduction ----------------------------------------------------------------------------------- 3 ▣Package Contents --------------------------------------------------------------------------- 3 TABLE TOP LAMINATOR ▣Safety Precautions --------------------------------------------------------------------------- 4 RSL-2701 OWNER’S MANUAL ▣Parts -------------------------------------------------------------------------------------------- 5 ▣Features Guide ------------------------------------------------------------------------------- 6 ▣Operating Instructions -------------------------------------------------------------------- ▣Film Loading and Threading ------------------------------------------------------------ ▣Maintenance --------------------------------------------------------------------------------- 11 ▣Trouble shooting guide ------------------------------------------------------------------- 12 ▣Specifications ------------------------------------------------------------------------------- 13...

  • Page 2: Introduction

    SAFETY PRECAUTIONS INTRODUCTION Thank you for purchasing RSL-2701 Table Top Laminator. It has been designed and manufactured to provide years of continuous service. For WARNING high quality lamination, please read this instruction manual thoroughly. Failure to comply with any of the following safety procedures could result in serious injury.

  • Page 3: Features Guide

    PARTS FEATURES GUIDE Run and stop the machine ③ ⑧ ① Reverse the rollers to undo jams ④ and correct misfed documents ⑨ Reduce roller speed ⑥ (1~10 speed settings) ⑤ Increase roller speed ② (1~10 speed settings) ⑦ 1- Upper Film Film Application Temperature 2- Lower Film 210°...

  • Page 4: Operating Instructions

    FPower Switch (1) - Located on the rear of OPERATING INSTRUCTION the machine. “I” (on) “0” (off). (Fig. 2) 1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2) Cross Cutter (2) - Used to cut off the ②...
  • Page 5 4. Insert the film shaft into the roll of film LOADING UPPER ROLL FILM ▲ from the right side with the copper end last. Align and insert the core adapter on the left 1. Slightly slide the shaft to the right and end of the film core.

  • Page 6: Maintenance

    LOADING LOWER ROLL FILM TROUBLE SHOOTING GUIDE ▲ 1. Repeat steps 1-5 to load lower roll film. Problem Cause Remedy 2. Once the upper and lower film is on the shaft, pull the film from the top roll down to the bottom roll to make certain that the film is aligned properly.

  • Page 7: Specifications

    The warranty made herein is in lieu of all other warranties, expressed or implied, including any Driving motor DC geared motor warranty or merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal injury (unless primarily caused by its negligence), loss of profit, or Temperature control Digital(micom) other incidental or consequential damages arising out of the use or inability to use this equipment.
