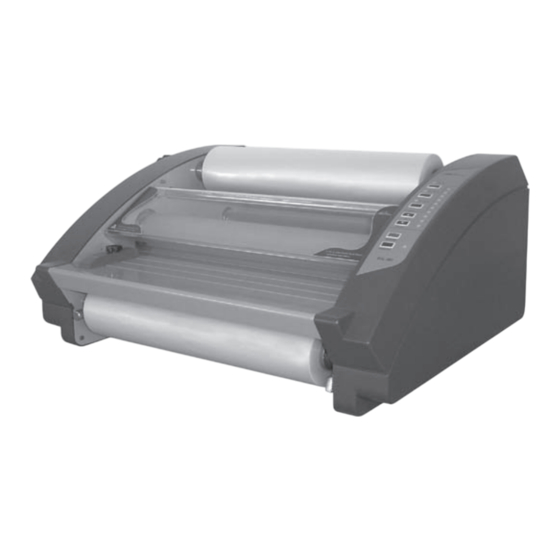

Royal Sovereign RSL-2701S Owner's Manual

Hide thumbs Also See for RSL-2701S:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
RSL-2701U
(for CANADA MODEL)
RSL-2701S
(for USA MODEL )
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab
on www.royalsovereign.com
Royal Sovereign International Inc.
www.royalsovereign.com

Advertisement

Table of Contents
loading

Related Manuals for Royal Sovereign RSL-2701S

Summary of Contents for Royal Sovereign RSL-2701S

  • Page 1 OWNER'S MANUAL RSL-2701U (for CANADA MODEL) RSL-2701S (for USA MODEL ) Read all instructions carefully before use. For any Customer Support needs please choose the Customer Support tab on www.royalsovereign.com Royal Sovereign International Inc. www.royalsovereign.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TOpIC pAgE 1. Introduction ..............................3 2. Package Contents ............................. 3 3. Safety Precautions ............................4 4. Parts ................................. 5 5. Control Panel ..............................6 6. Features Guide ..............................8 7. Film Loading and Threading ..........................9 8.

  • Page 3: Introduction

    TABLE TOP LAMINATOR 1. INTRODUCTION Thank you for purchasing the Table Top Laminator. It has been designed and manufactured to provide years of continuous service. For high quality lamination, please read this instruction manual thoroughly. This manual will provide you with complete operating and maintenance information. 2.

  • Page 4: Safety Precautions

    3. SAFETy pRECAUTIONS Failure to comply with any of the following safety procedures could result in serious injury. please read the instructions carefully and keep for future reference. 1. Only a licensed electrician should install wiring and outlet for the laminator. 2.

  • Page 5: Parts

    TABLE TOP LAMINATOR 4. pARTS 1. Upper Film 2. Lower Film 3. Idle Bar 4. Hot Rollers 5. Feed Table 6. Paper Guide 7. Control Panel 8. Tension Knob 9. Power Switch *10. (2701S model only) Single/Double Laminating Switch “O” (on) “I” (off). * For Single-side Laminating.

  • Page 6: Control Panel

    5. CONTROL pANEL Film Application Temperature 270 ~310 ˚F 270 ~310 ˚F 270-310 F Film Application Temperature 230 ~270 ˚F 230 ~270 ˚F 230-270 F Film Application Temperature 210 ~230 ˚F 210~230 ˚F 210-230 F Increase roller speed (1~10 speed settings) Reduce roller speed (1~10 speed settings) DOWN...
  • Page 7 TABLE TOP LAMINATOR Film Application Thickness 125mic 125mic(100~125mic) * (100~125mic) 5 mil 125 mic 270-310 F 100 - 125 mic Film Application Thickness 50~100mic 50~100mic(50~75mic) * (50~75mic) 2 - 4 mil 50-100 mic 50 - 75 mic 230-270 F Film Application Thickness 25~38mic 25~38mic(25~38mic) * (25~38mic)

  • Page 8: Features Guide

    6. FEATURES gUIDE Power Switch 1 Located on the rear of the machine. “I” (on) “0” (off). (Fig. 2) Cross Cutter 2 Used to cut off the laminated web. (Fig. 2) Feed Guide 3 Figure 2 The feed guide permits alignment of the item(s) to be laminated. To position the adjustable guide, loosen the knob, slide it to the desired position and tighten the knob to secure the feed guide in place.

  • Page 9: Film Loading And Threading

    TABLE TOP LAMINATOR 7. FILM LOADINg & ThREADINg Figure 6 1. Slightly slide the upper film shaft to the right and pull it out from the machine. (Fig. 7) Figure 7 2. Take both lock core adapters off from the shaft. (Fig. 8) Figure 8...
  • Page 10 3. Insert one of the core adapters into the right end of the film core. For film with poly-in (adhesive side is inside the web), make sure the adhesive side is facing upward. (Fig. 9) Figure 9 4. Insert the film shaft into the roll of film from the right side with the copper end last.
  • Page 11 TABLE TOP LAMINATOR LOADINg LOWER ROLL FILM 1. Repeat steps 1-5 to load the lower roll film. 2. Once the upper and lower film is on the shaft, pull the film from the top and roll down to the bottom roll to make certain that the film is aligned properly.
  • Page 12 LAMINATINg SINgLE SIDED (RSL-2701S USA Model only) Press the switch into the location “SINGLE ”. Figure 13...

  • Page 13: Operation Instructions

    TABLE TOP LAMINATOR 8. OpERATION INSTRUCTIONS 1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2) 2. Choose appropriate laminating temperature and speed. (Fig. 1) 3. Do not begin laminating until the blinking light is steady (approximately 8 minutes). 4.

  • Page 14: Trouble Shooting Guide

    10.TROUBLE ShOOTINg gUIDE Symptom Cause possible Solution 1. Check safety cover is 1.Safety cover is opened properlyclosed 2. Power cord is not plugged in Rollers do not operate after the RUN/ 2. Plug in the power cord STOP button is pressed 3.

  • Page 15: Specification

    TABLE TOP LAMINATOR 11. SpECIFICATIONS MODEL RSL-2701U RSL-2701S RSL-2701 RSL-2701S RSL-380S AC100V 60Hz Power supply AC120V 60Hz AC220~240V AC 220~240V 50/60Hz 50/60Hz Power consunmption 1450W 1500W Max laminating width 685mm 380mm Film thickness 25~250mic /1~10mil 25~125mic/1~5mil Max laminating speed 2.5m/min 3m/min Ready time 10min...

  • Page 16: Warranty

    The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential damages arising out of the use or inability to use this equipment.

This manual is also suitable for:

Rsl-2701uRsl-2701
