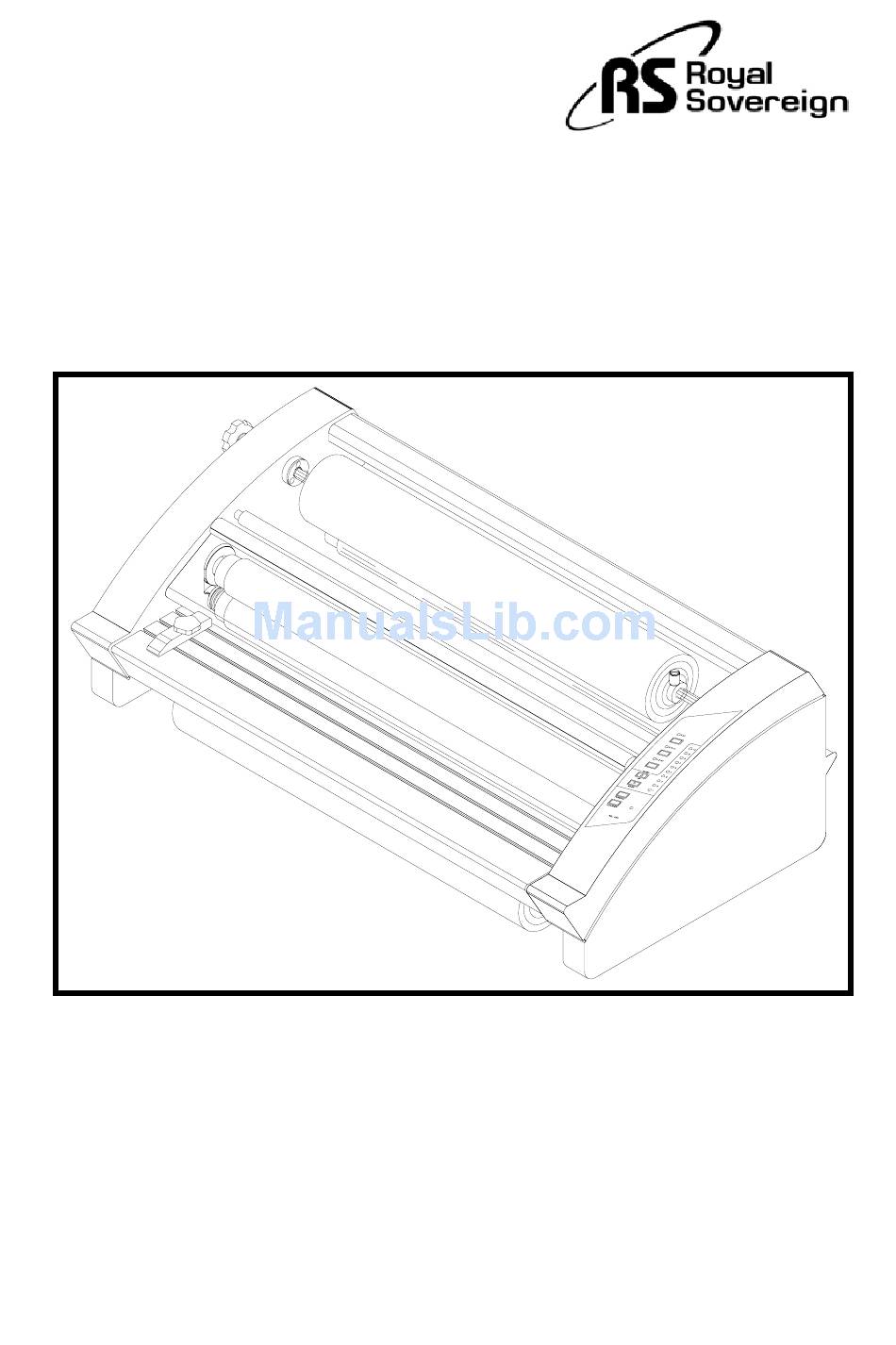

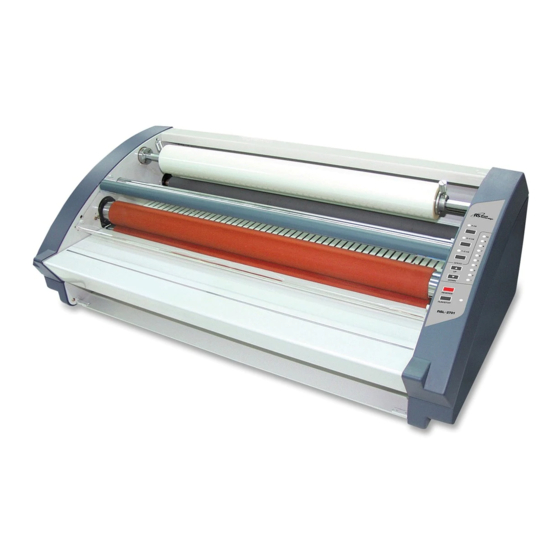

- Page 1 TABLE TOP LAMINATOR RSL-2701S OWNER’S MANUAL Please read instructions carefully before use.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ▣Introduction ----------------------------------------------------------------------------------- 3 ▣Package Contents --------------------------------------------------------------------------- 3 ▣Safety Precautions --------------------------------------------------------------------------- 4 ▣Parts -------------------------------------------------------------------------------------------- 5 ▣Features Guide ------------------------------------------------------------------------------- 6 ▣Operating Instructions -------------------------------------------------------------------- ▣Film Loading and Threading ------------------------------------------------------------ ▣Maintenance --------------------------------------------------------------------------------- 12 ▣Trouble shooting guide ------------------------------------------------------------------- 13 ▣Specifications ------------------------------------------------------------------------------- 14 ▣Warranty ----------------------------------------------------------------------------------- 15... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing RSL-2701S Table Top Laminator. It has been designed and manufactured to provide years of continuous service. For high quality lamination, please read this instruction manual thoroughly. This manual will provide you with complete operating and maintenance information. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING Failure to comply with any of the following safety procedures could result in serious injury. 1. Insure the unit is plugged into a properly grounded outlet with the correct voltage. 2. Only licenses electricians should service or repair the electrical wiring. 3. -
Page 5: Parts
PARTS ○ ③ ⑧ ① ④ ⑨ ⑥ ⑤ ② ⑦ 1- Upper Film 2- Lower Film 3- Idle Bar 4- Hot Rollers 5- Feed Table 6- Paper Guide 7- Control Panel 8- Tension Knob 9- Power Switch 10- Single/Double Laminating Switch “O”... -
Page 6: Features Guide
Reduce roller speed (1~10 speed settings) 50~100 mic Increase roller speed 25~38 mic (1~10 speed settings) SPEED Film Application Thickness 125mic 125mic DOW N Film Application Thickness 50mic~100mic REV ERSE 50mic~100mic RUN/ST OP Film Application Thickness 25mic~38mic RSL-2701S RSL-2701 25mic~38mic Figure 1... - Page 7 FEATURES GUIDE-2 Run and stop the machine Reverse the rollers to undo jams and correct misfed documents Reduce roller speed (1~10 speed settings) Increase roller speed (1~10 speed settings) Film Application Tem perature 210° F~230° F 210° F~230° F Film Application Tem perature 230°...
- Page 8 Power Switch (1) - Located on the rear of the machine. “I” (on) “0” (off). (Fig. 2) Cross Cutter (2) - Used to cut off the ① laminated web. (Fig. 2) ② Figure 2 Feed Guide (3) –The feed guide permits alignment of the item(s) to be laminated.
-
Page 9: Operating Instructions
OPERATING INSTRUCTION 1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2) 2. Choose appropriate laminating thickness and speed. (Fig. 1) 3. Do not begin laminating until the blinking light is steady (approximately 8 minutes). 4. -
Page 10: Film Loading And Threading
FILM LOADING & THREADING Upper Idler bar roll film Laminating direction Roller Lower Idler bar roll film Figure 6 LOADING UPPER ROLL FILM ▲ 1. Slightly slide the shaft to the right and pull it out from the machine. Figure 7 2. - Page 11 Figure 8 3. Insert one of the core adapters into the right end of the film core. For film with poly-in (adhesive side is inside the web), make sure the adhesive side is facing upward. (Fig. 9) Figure 9 4. Insert the film shaft into the roll of film from the right side with the copper end last.
-
Page 12: Maintenance
Figure 12 LOADING LOWER ROLL FILM ▲ 1. Repeat steps 1-5 to load lower roll film. 2. Once the upper and lower film is on the shaft, pull the film from the top roll down to the bottom roll to make certain that the film is aligned properly. Then tighten the lower locking core screws. -
Page 13: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Problem Cause Remedy 1. Safety cover is opened. 1. Check safety cover is Rollers do not operate 2. Power cord is not properly closed. after the RUN/STOP plugged in 2. Plug in the power Button is pressed 3. -
Page 14: Specifications
SPECIFICATIONS MODEL RSL-2701S AC 120V，60Hz 220-240V，50/60Hz Power supply 1500W Power consumption 1450W Max laminating width 685(mm) / 27(in) Film thickness 25~250(mic) / 1~10(mil) 25~125(mic) / 1~5(mil) Max laminating speed 2.5(m/min) / 8.2(ft/min) Ready time 10 min Heating method Hot Roller... -
Page 15: Warranty
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential damages arising out of the use or inability to use this equipment.
