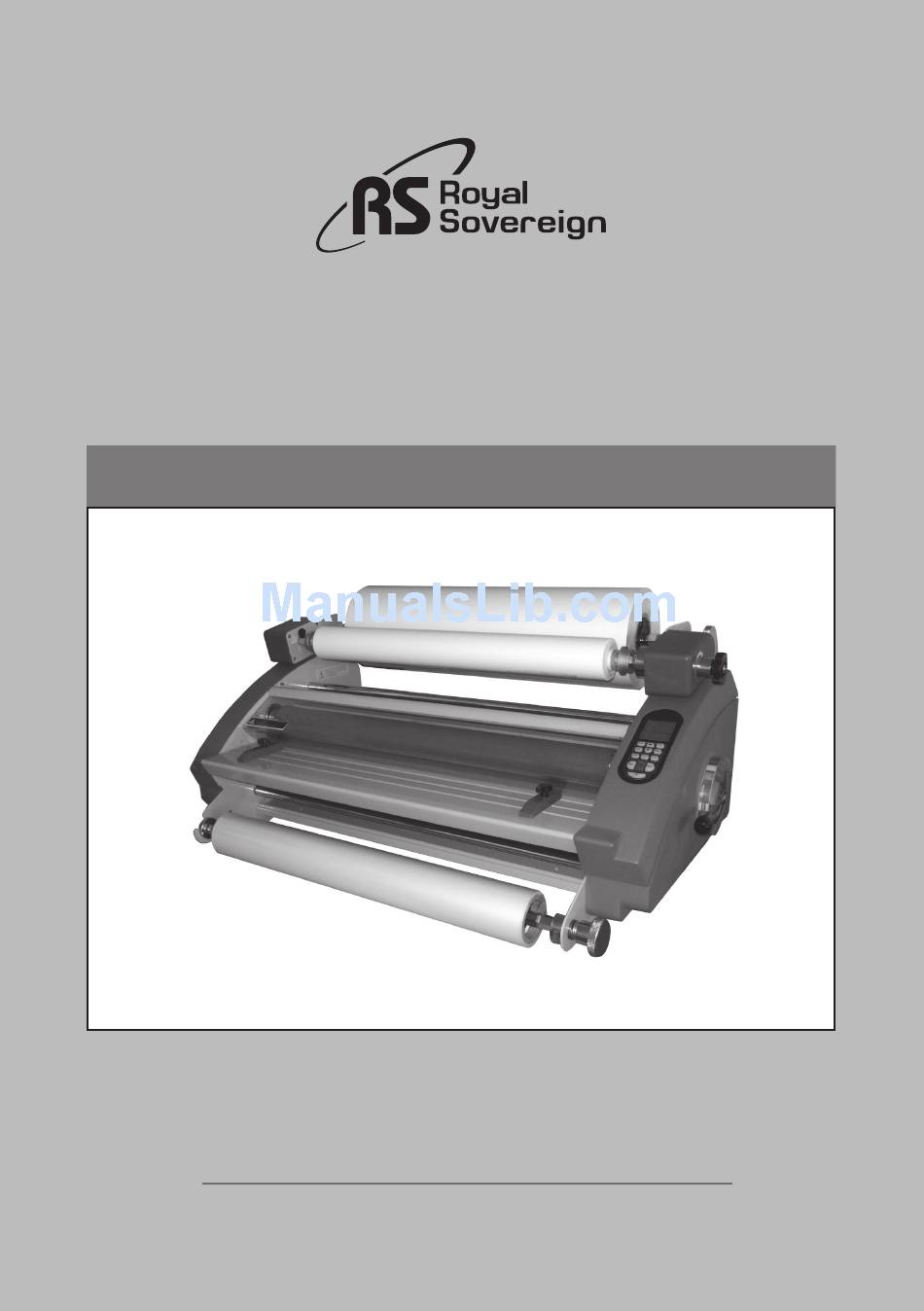

OWNER'S MANUAL
RSL-382S/2702S Laminator
Read all instructions carefully before use.
For any Customer Support needs please choose the
Customer Support tab
on www.royalsovereign.com
Royal Sovereign International Inc.
www.royalsovereign.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSL-382S and is the answer not in the manual?

Questions and answers

Related Manuals for Royal Sovereign RSL-382S

Summary of Contents for Royal Sovereign RSL-382S

  • Page 1 OWNER'S MANUAL RSL-382S/2702S Laminator Read all instructions carefully before use. For any Customer Support needs please choose the Customer Support tab on www.royalsovereign.com Royal Sovereign International Inc. www.royalsovereign.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TOPIC PAGE 1. Introduction ......................2 2. Safety Precautions ....................2 3. Included with Laminator ..................3 4. Product Identification ..................3 5. Loading Film ......................4 6. Threading Film 6.1. Hot Film ..................... 5-6 6.2. Cold Film ...................... 7 6.3.

  • Page 3: Introduction

    RSL-382S/2702S 1. INTRODUCTION Thank you for choosing a Royal Sovereign laminator. It has been designed and manufactured to provide years of continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon receipt of your laminator, please inspect the box, the machine and all other contents for shipping damage.

  • Page 4: Included With Laminator

    3. INCLUDED WITH LAMINATOR PART NAME REMARK PART NAME REMARK FUSE(65TS) FUSE(65TS) (AC250V 10A) (AC250V 20A) Power supply: Power supply: 220V~240V 100V~120V 4. PRODUCT IDENTIFICATION PART NAME PART NAME UPPER FILM GUIDE-DOCUMENT TAKE-UP BOBBIN HANDLE-TENSION IDLE BAR PRESSURE LEVER HOT ROLLER CONTROL PANEL SAFETY COVER KNOB-TENSION...

  • Page 5: Loading Film

    RSL-382S/2702S 5. LOADING FILM Picture 1 Picture 2 Picture 3 Picture 4 1. As shown in picture 1, insert auto grips onto the upper/lower film shaft. 2. As shown in picture 2, using the special tool, fix the auto grips on the film shaft with set-screws.

  • Page 6: Threading Film

    6. THREADING FILM 6.1. HOT FILM UPPER ROLL FILM ADHESIVE SIDE UPPER IDLE BAR ROLL GLOSSY SIDE ADHESIVE SIDE GLOSSY SIDE LOWER ROLL FILM SECOND IDLE BAR FIRST IDLE BAR 1. Turn the power switch on("I" position). Power switch is located in the rear of the unit on the left side. 2.
  • Page 7 RSL-382S/2702S 8. Carefully pull up the laminate from the lower roll up towards the first idle bar and then around the back side of the second Idler (Caution: lower roller may be hot).(Picture 3) 9. Tack the lower film to the upper film that is resting on the main roller (Picture 4).

  • Page 8: Cold Film

    (Royal Print-Pro Film) and lower shaft with pressure sensitive mounting adhesive films or backing paper (Royal Sovereign White-Mount or Clear-Mount). 2. Pull the upper laminate under the upper idle bar and separate the release liner from the laminate.

  • Page 9: Mounting

    RSL-382S/2702S 6.3. MOUNTING 1. Lay the decaled image face down on a flat surface. Carefully peel back and put a crease along the edge of the release liner (Approximately 1 inch or 25mm, Figure 1). Figure 1 2. With the image facing up, align the image onto the board.

  • Page 10: Singling Laminating

    6.4. SINGLING LAMINATING OPP FILM IDLE BAR OPP FILM ROLLER LAMI ROLLER PULL IDLE BAR SHAFT--DECURLING 1. Turn the power switch on("I" position). Power switch is located in the rear of the unit on the left side. 2. Follow the steps in the "Loading Film" procedure by loading the upper shaft with OPP Film.

  • Page 11: Control Of Roller Pressure

    RSL-382S/2702S 7. CONTROL OF ROLLER PRESSURE To set, pull the pressure lever outward and turn to one of the following positions. ¢ Ù OPEN: For detaching and cleaning rollers. ¢ Ú 6MM: For laminating 6mm[0.24in] thick board. ¢ Û 5MM: For laminating 5mm[0.2in] thick board.

  • Page 12: Control Panel

    8. CONTROL PANEL 1. UPPER: To change upper roller temperature by pressing button, then up or down arrow. (range 32~302°F or 0~150°C) 2. LOWER: To change lower roller temperature pressing button, then up or down arrow. (range 32~302°F or 0~150°C) 3.

  • Page 13: Laminating Steps

    RSL-382S/2702S 9. LAMINATING STEPS 9.1. HOT LAMINATING 1. Turn on the power switch located on the rear of the machine. 2. Set the pressure lever to the "Laminating mode". 3. Increase the roller temperature. If you already have a setting in the memory that...
  • Page 14 Useful Information ¡ ª 1. You can preset up to 9 temperature and speed settings in the memory for faster easier use. 2. When laminating continuously "WAIT" may appear on the display, if this occurs lower the speed by 1 increment, "READY" should appear and you may continue laminating.

  • Page 15: Cold Laminating

    RSL-382S/2702S 9.2. COLD LAMINATING 1. Put cold roll film on upper shaft. Load backing paper on the lower shaft as per illustration 6.2 on page 7. 2. Pull COLD film and fix it so that the Release Liner can be wound on take-up mandrel clockwise.

  • Page 16: Using Cross Cutter

    10. USING CROSS CUTTER The cross cutter is located on the rear exit table of the machine. 1. After lamination, move the cutter approximately to the center of the completed application at the desired point of detachment (Figure 1). 2. Grasp film with one hand, press the cutter downward into the application and slide it first to one end of the application, then to the other end to complete the cut (Figure 2 &...

  • Page 17: Troubleshooting

    RSL-382S/2702S 12. TROUBLESHOOTING Symptom Cause Possible Solution a. Power switch is in "0" a. Put the power switch to Machine will (Off) position the "I" (On) position not turn on: b. Tripped circuit breaker. b. Reset the circuit breaker. c. Blown main power fuse.

  • Page 18: Recommended Temperature And Speed Settings

    13. Recommended Temperature and Speed Settings. Preset User Film thickness Remark Temp Speed Func'No Temp Speed Opp film 32 micron (230 (1.3 mil) Opp film 32 micron (266 (1.3 mil) Opp film 32 micron (266 (1.3 mil) 38 micron (1.5 mil) (230 75 micron (3 mil)

  • Page 19: Specifications

    RSL-382S/2702S 14. SPECIFICATIONS Description RSL-2702S RSL-382S Power supply AC 100, 200, 220~240V 50/60Hz 120V 60Hz Power consumption 1500W 1200W Max. laminating width 685mm / 27" 380mm / 14.9" Film thickness 25~250 mic / 1~10mil / Opp film 32mic Single 200~250g...

  • Page 20: Warranty

    Royal Sovereign International and cannot be modified or amended. Royal Sovereign’s sole and exclusive liability and the customer’s sole and exclusive remedy under this warranty shall be, at Royal Sovereign’s option, to repair or replace any such defective part or product. These remedies are only available if Royal Sovereign’s examination of the product discloses to Royal Sovereign’s satisfaction that such defects...
