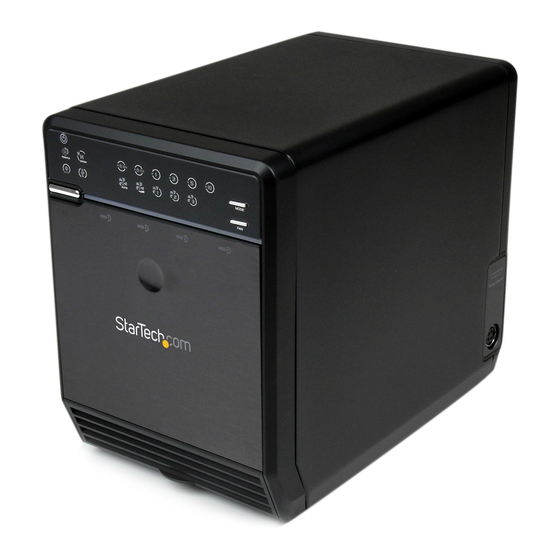

4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure
StarTech ID: SAT3540U3ER
The SAT3540U3ER 4-Drive USB 3.0/eSATA to 3.5" SATA RAID Enclosure is a high-performance external RAID storage
solution that supports up to 4 high capacity (tested with up to 4TB per bay) 3.5-inch SATA hard drives over a USB 3.0 or
eSATA connection.
The 4-bay RAID enclosure can be connected to the host/source computer through USB or eSATA and automatically builds
your SATA RAID array based on your selection (Spanning, RAID 0, RAID 1, RAID 1+0, RAID 3, and RAID 5 supported),
delivering a simple, yet flexible external storage solution.
Designed for convenience, the enclosure features front panel LED indicators that provide RAID information and simple hard
drive status and activity monitoring. The enclosure also features a built-in, 3-speed 80mm fan with automatic or manual
controls that enable you to customize the speed of the fan as necessary to ensure suitable operating temperatures for
optimized drive performance.
Advertisement
Table of Contents
Related Manuals for StarTech.com SAT3540U3ER
Summary of Contents for StarTech.com SAT3540U3ER

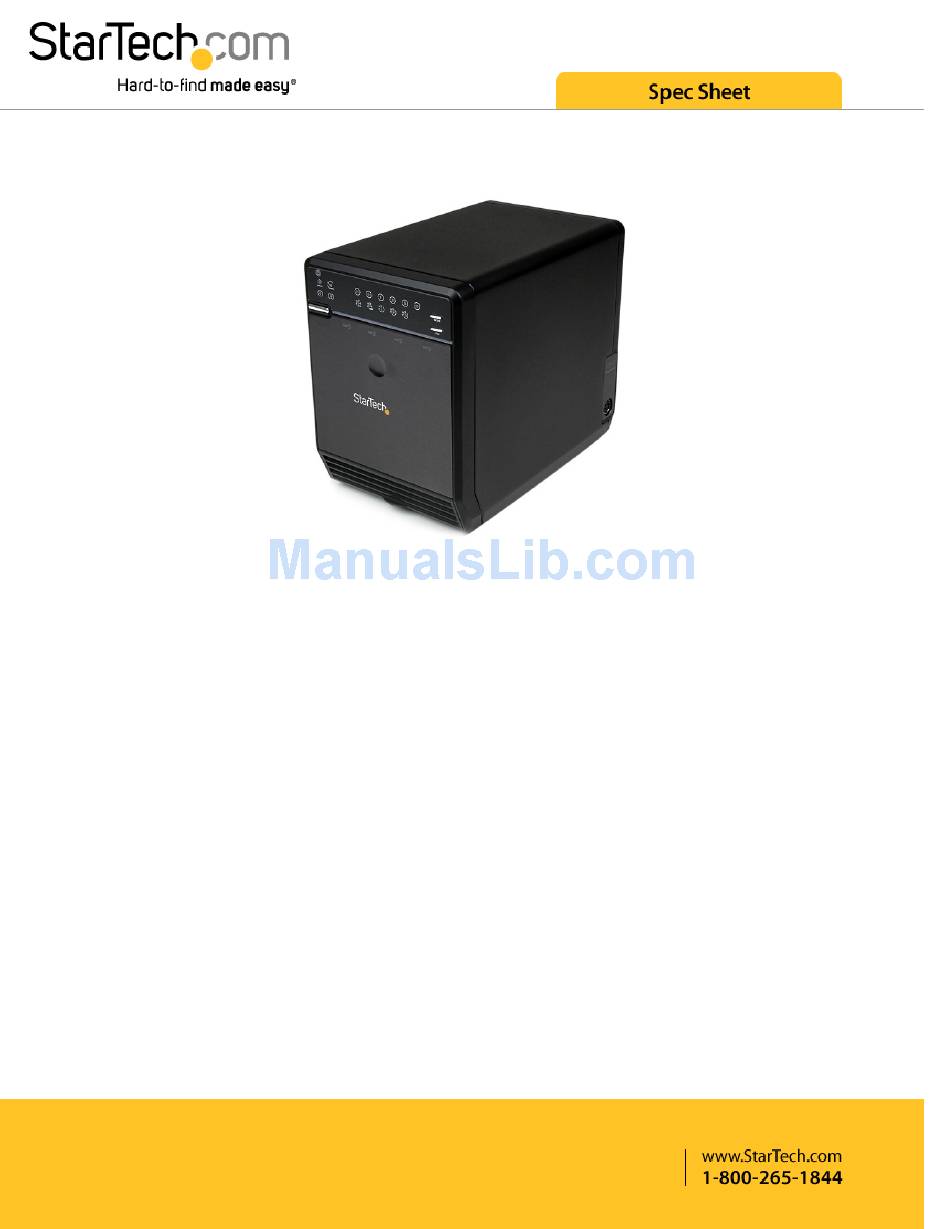

- Page 1 StarTech ID: SAT3540U3ER The SAT3540U3ER 4-Drive USB 3.0/eSATA to 3.5" SATA RAID Enclosure is a high-performance external RAID storage solution that supports up to 4 high capacity (tested with up to 4TB per bay) 3.5-inch SATA hard drives over a USB 3.0 or eSATA connection.
- Page 2 Applications and Solutions • Add external RAID storage without worrying about driver or software support • Maximizing the transferability of storage between different computer systems • Large volume external storage with redundancy for backups or archiving important data • Video editing or photography professional/enthusiasts working with very large file sizes...
- Page 3 Features • SuperSpeed USB 3.0 host interface, with transfer rates up to 5 Gbps • SATA revision 2 compliant eSATA host interface, supporting transfer rates up to 3.0Gbps • Supported RAID modes: 0 (stripe), 1 (mirror), 3 (parity disk), 5 (striped parity), 10 (1+0), Span/Concatenation •...
-
Page 4: Technical Specifications
Technical Specifications • Warranty: 2 Years • Number of Drives: 4 • Chipset ID: JMicron JMB394 + JMB355 + JMS539 • Max Drive Capacity: Currently tested with up to 4 TB 5400 RPM hard drives per bay (16TB total) • Product Height: 6.69 in [170 mm] •... - Page 5 • System and Cable Requirements: Available USB or eSATA port...
