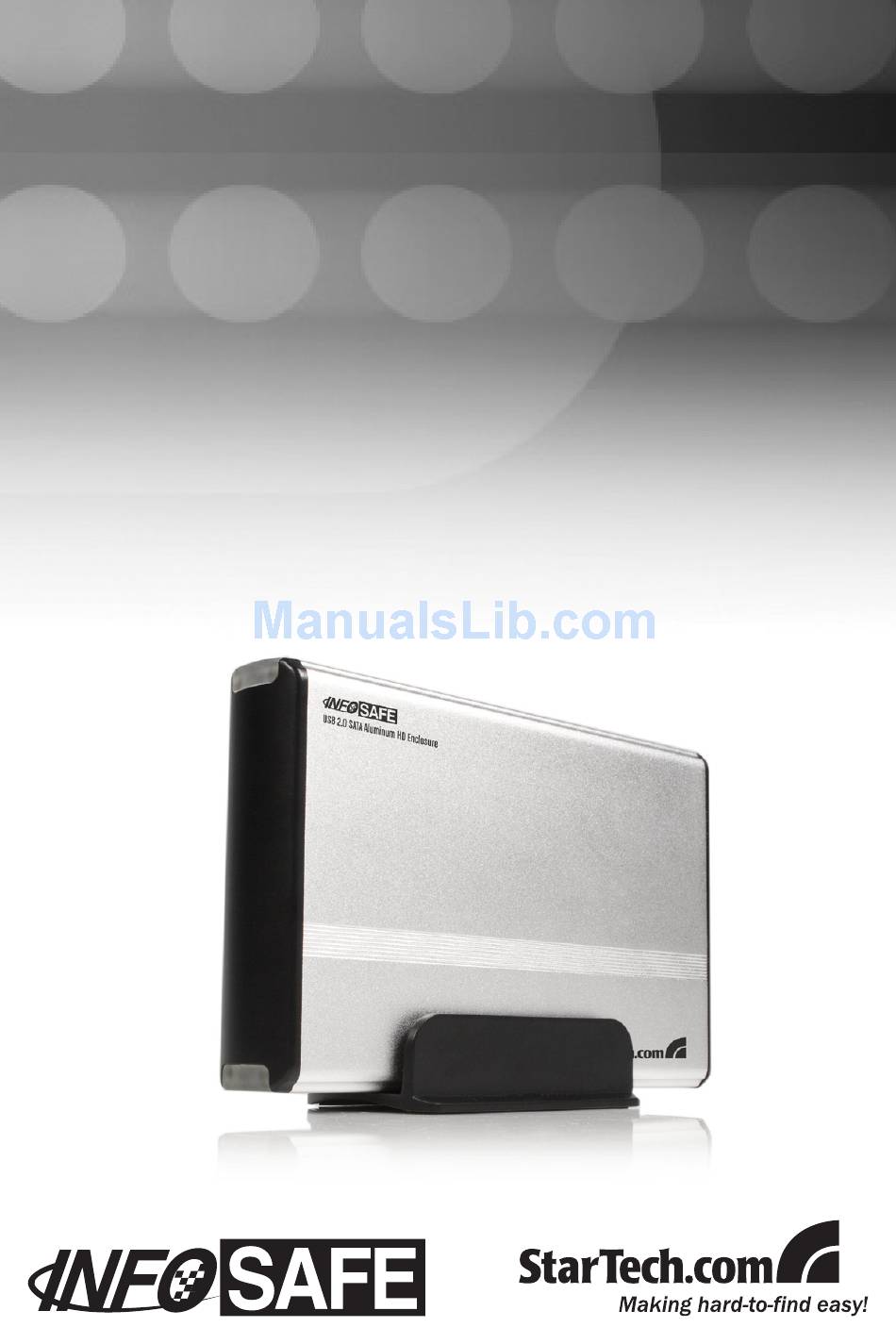

- Page 1 3.5” USB 2.0 SATA Aluminum HD Enclosure SAT3510U2V...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..................1 Features ..................1 System requirements..............1 Package contents ................1 Hardware Guide ................2 Installation ..................3 Technical Specifications ............... 6 Technical Support ................7 Warranty Information ..............7... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com SAT3510U2V InfoSafe 3.5” USB 2.0 SATA Aluminum Hard Drive Enclosure. This cost-effective stor- age solution suits a wide variety of applications including file and applica- tion sharing between desktop and notebook computers, data archiving, or simply backing up existing hard drives to preserve data security. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide Front Panel View Rear Panel View Power/Activity LED Power/Activity LED DC 12V Power Adapter Port On/Off Switch USB type B Port Power Adapter Screw Kit Plastic Stand USB A-B Cable... -
Page 6: Installation
Instruction Manual Installation Remove the Rear Panel, to expose the internal SATA connections: Position the hard drive you wish to install such that the SATA connection is facing towards the SATA interface connector provided by the SAT3510U2V front panel:... - Page 7 Instruction Manual With the hard drive connected to the rear panel, turn the drive over to expose it’s base. Fasten the hard drive to the front panel rails on both sides, using the screws provided (2): Fasten the front panel (with drive attached) to the body of the enclosure;...
- Page 8 Instruction Manual Fasten both sides of the case to lock the hard drive in place: Fasten the rear panel to the drive enclosure on both sides using the screws (2) provided.
-
Page 9: Technical Specifications
Instruction Manual Once the drive has been secured within the enclosure, connect the DC 12V power adapter to the power adapter port. Connect the remaining end of the power adapter to an available power outlet. Connect the USB A-B cable to the USB B port on the rear panel of the enclosure, then connect the remaining end of the cable to the host computer. -
Page 10: Technical Support
Warranty Information This product is backed by a one year warranty. In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
