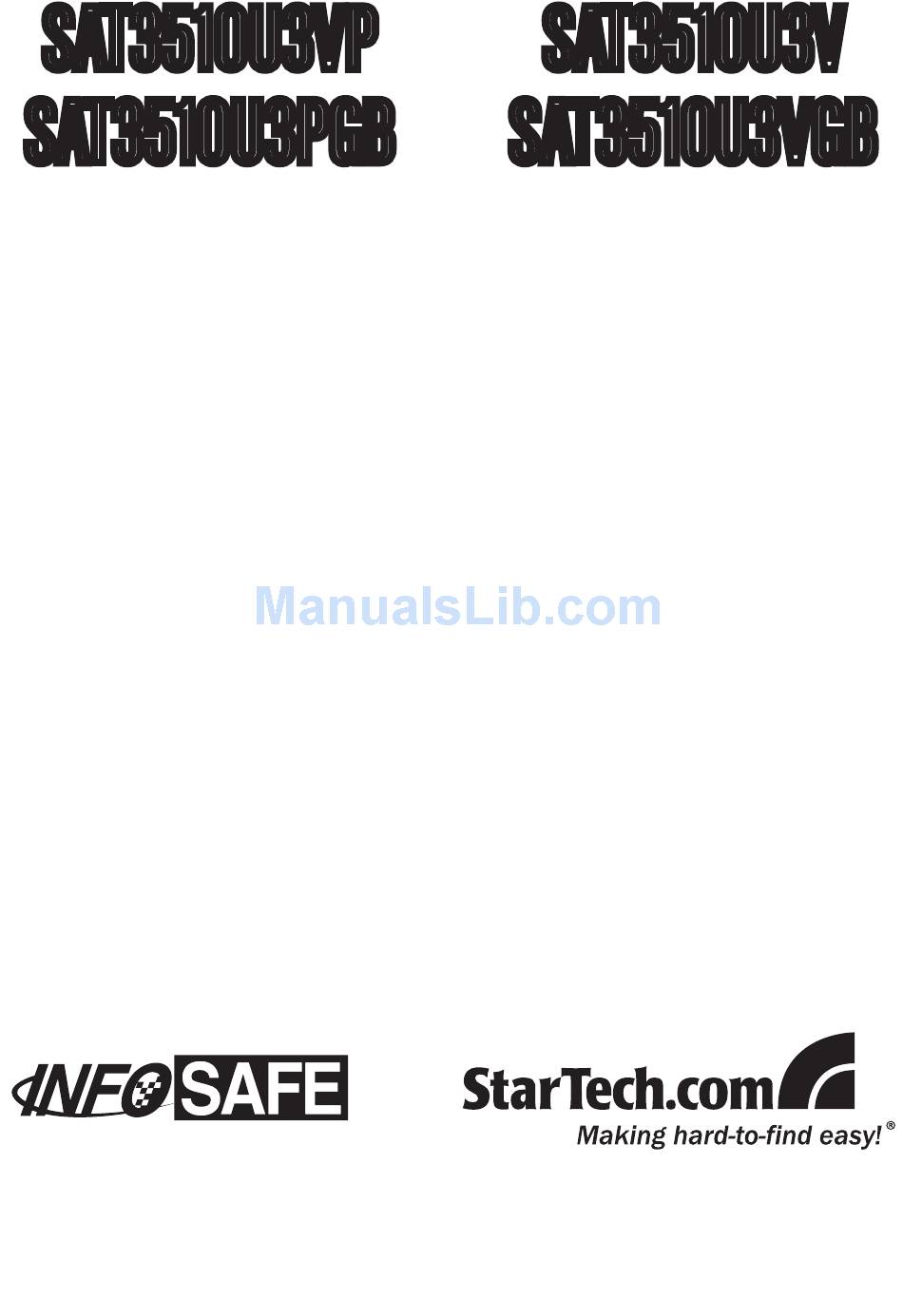

- Page 1 SAT3510U3VP SAT3510U3V SAT3510U3PGB SAT3510U3VGB Instruction Manual SATA Hard Drive Enclosure 3.5” SuperSpeed USB 3.0 to SATA Hard Drive Enclosure Manual Revision:07/26/2010 For the most up-to-date information, please visit www.startech.com...
- Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
-
Page 3: Table Of Contents
Packaging Contents............. 1 System Requirements ............1 Installation ..............2 Hardware Installation ............2 Driver Installation ..............4 PCIe USB 3.0 Card Installation (SAT3510U3VP/ SAT3510U3PGB only) ............5 Driver Installation ..............6 Verifying Installation ............. 6 Using the Enclosure ..........7 Specifications ............ -
Page 4: Introduction
Packaging Contents • 1 x External Hard Drive Enclosure • 1 x USB 3.0 cable • 1 x PCI Express USB 3.0 card (SAT3510U3VP, SAT3510U3PGB only) • 1 x Screw kit • 1 x Power Adapter • 1 x Software CD •... -
Page 5: Installation
Installation WARNING! Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation 1. Remove the rear panel, to expose the internal SATA connections: 2. - Page 6 4. Fasten the front panel (with drive attached) to the body of the Enclosure; be cautious that the drive and front panel are properly aligned with the body of the Enclosure, to prevent damage to the LEDs. 5. Fasten both sides of the case to lock the hard drive in place:...
-
Page 7: Driver Installation
6. Fasten the rear panel to the Drive Enclosure on both sides using the screws (2) provided. 7. Once the drive has been secured within the Enclosure, connect the DC power adapter to the DC power port. Connect the remaining end of the power adapter to an available power outlet. -
Page 8: Pcie Usb 3.0 Card Installation (Sat3510U3Vp/Sat3510U3Pgb Only)
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 9: Driver Installation
Driver Installation Windows XP/Server 2003/Vista/7 1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer’s CD/DVD drive. 2. AutoPlay should automatically launch the Driver installation screen. If not, open “My Computer”... -
Page 10: Using The Enclosure
Using the Enclosure Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. - Page 11 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 12: Specifications
Specifications Bus Interface USB 3.0 Chipset ID JMicron JMS539 1 x USB 3.0 type B female Connectors 1 x DC Power LEDs 1 x Power/Activity Maximum Data Transfer Rate USB 3.0: 5 Gbps 3.5” SATA 1.5/3.0/6.0 Gbps Compatible Hard Drives compatible hard drives 12VDC, 2000mA, center Power Adapter... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
