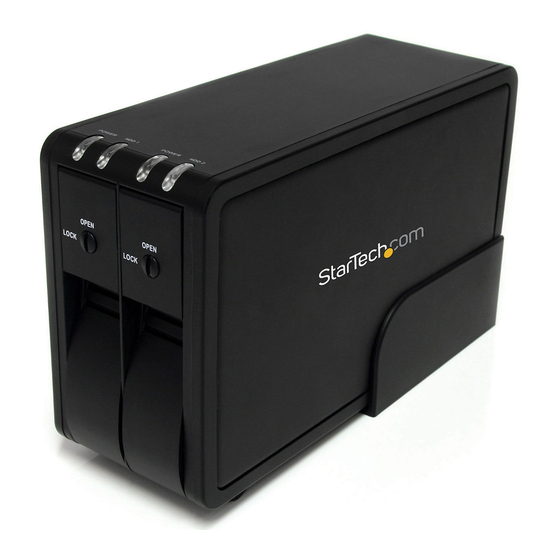

SuperSpeed USB 3.0 to Dual 3.5in SATA
Trayless HDD Enclosure
SAT3520U3R
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/29/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SAT3520U3R
Summary of Contents for StarTech.com SAT3520U3R
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/29/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Using the Storage Device ..............5 RAID Modes ..............................6 Specifications ..................7 Technical Support ..................8 Warranty Information ................8... -
Page 4: Introduction
Introduction The SAT3520U3R USB 3.0 to Dual 3.5in SATA Trayless Hard Drive Enclosure makes adding fast external storage easy, by turning any two 3.5in internal SATA hard drives into an external hard drive. Featuring a trayless system that eliminates having to mount and fasten the hard drive into the enclosure or tray, for quick and easy installation or removal. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
8. Connect the USB 3.0 cable from the enclosure to the host computer system. NOTE: A USB 2.0 cable can be used in place of the USB 3.0 cable, however the enclosure will only run at USB 2.0 speeds. 9. Select the RAID mode you wish to use with the slide switch on the rear of the enclosure and press the RESET button. -
Page 8: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using brand new hard drives that do not contain any data, or after changing between RAID Modes, then you will first need to prepare the hard drive for use before you can write data to them. From the main desktop, right-click on “My Computer” (“Computer”... -
Page 9: Raid Modes
RAID Modes RAID Mode Description Normal (JBOD) leaves the hard drives as independent disks. The operating system will treat them each separately. Normal Different sized hard drives can be used in this mode. RAID 0 (Stripe) combines both hard drives into a single large disk array. -
Page 10: Specifications
Specifications Number of Drive Bays Host Interface SuperSpeed USB 3.0 Chipset ID JMicron JMS551 1 x USB 3.0 type B female External Connectors 1 x DC Power 2 x Drive Power LEDs 2 x Drive Activity Fans 1 x 55mm Maximum Data Transfer Rate USB 3.0: 5 Gbps Compatible Hard Drives... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
