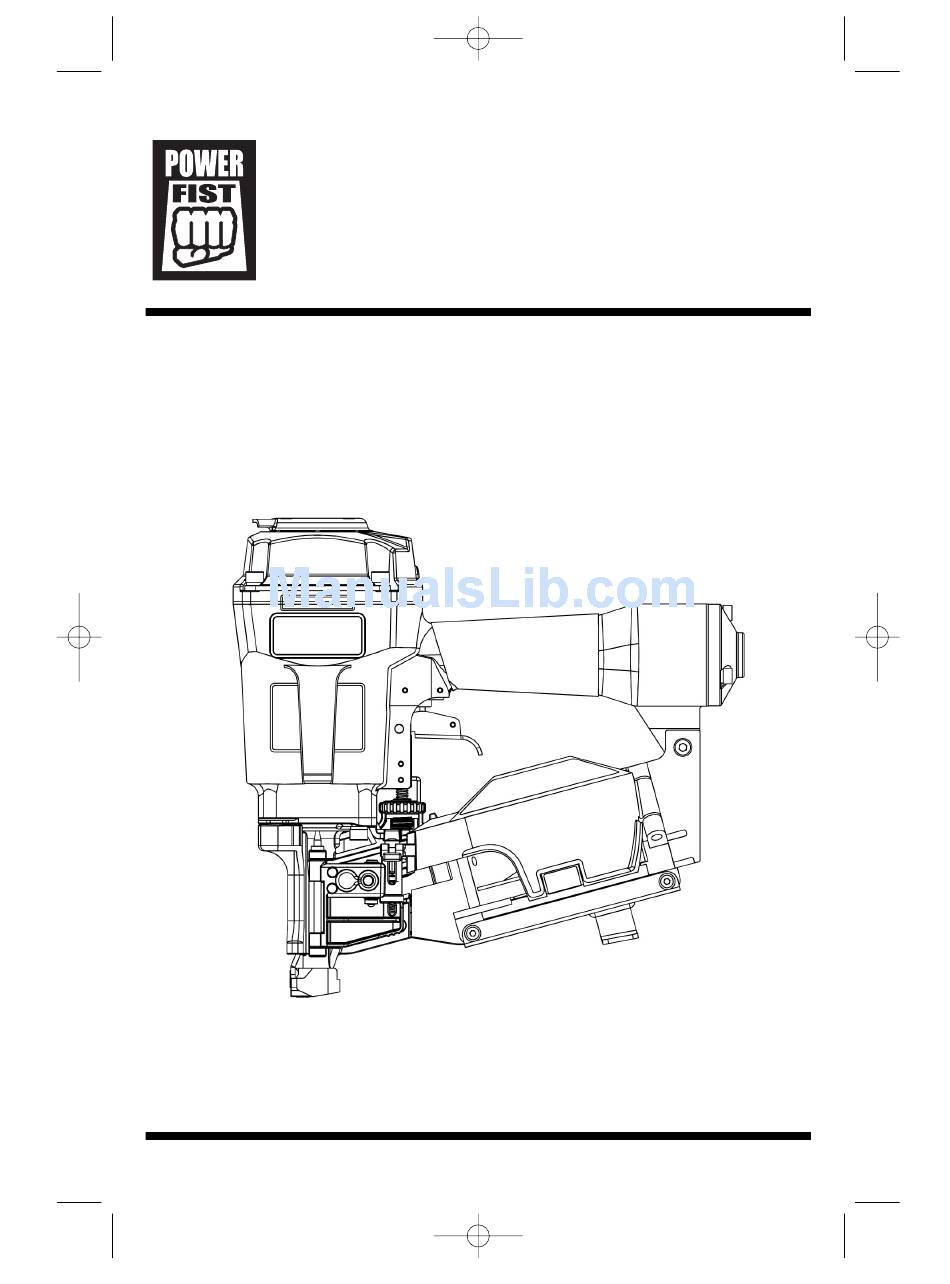

- Page 1 8095903manual 11/4/05 3:06 PM Page 1 8095903 Coil Roofing Air Nailer Owner’s Manual Warning: Before using this tool, study the manual. Keep these instructions with this tool for future references.
-
Page 2: Before Use
8095903manual 11/4/05 3:06 PM Page 2 Before Use • Approved eye protection should always be worn by the operator and others in the work area • Always disconnect the air supply before making adjustments, servicing the tool or clearing jams, and when the tool is not in use •... - Page 3 8095903manual 11/4/05 3:06 PM Page 3 6. Disconnect the air supply and empty the magazine when the tool is not in use. Also when moving to a different work area, adjusting, disassembling or repairing the tool, and when clearing a jammed fastener.
-
Page 4: Additional Precautions
8095903manual 11/4/05 3:06 PM Page 4 16. When using the tool outside or on elevated locations such as roofs, start fastening at the lower part and gradually work your way up. Fastening backward is dangerous as you may loose your footing. Secure the hose at a point close to the area you will be working. -
Page 5: Air Supply And Connections
8095903manual 11/4/05 3:06 PM Page 5 Tool Fittings • 1/4" NPT male style plug • Use with 1/4" minimum I.D. hose • The fitting must be capable of discharging tool air pressure when disconnected from the air supply. Air supply and connections 1. -
Page 6: Operating Instructions
8095903manual 11/4/05 3:06 PM Page 6 Fittings: Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply hose. F.R.L. Hoses: Hose with a 1/4" I.D. should have a max length of 15 ft. - Page 7 8095903manual 11/4/05 3:06 PM Page 7 Nail loading 1. Open the magazine. Pull down the door latch and swing door open. Swing magazine cover open. 2. Check adjustment. The nail support can be moved up and down to three settings. To change setting, pull up on the post and twist to the correct step.
-
Page 8: Driving Fasteners
8095903manual 11/4/05 3:06 PM Page 8 Driving Fasteners Contact fire operation (bump fire): For contact fire operation, hold the trigger and depress the contact arm against the work surface. Procedure: A. Hold the trigger. B Depress the contact arm. Warning: The operator must not hold the trigger pulled on contact trip tools except during fastening operation, as serious injury could result if the trip accidentally contacted someone or something causing the tool to cycle. - Page 9 8095903manual 11/4/05 3:06 PM Page 9 1. Use an F.R.L. Failure to use an F.R.L. allows the moisture and dirt inside compressor to pass into the nailer directly. This causes rust and wear and results in a poor operating performance. The hose length between F.R.L.
-
Page 10: Parts List
8095903manual 11/4/05 3:06 PM Page 10 Parts List 1 Screw 38 Cover 75 Spring pin 2 Washer 39 Contact stem 76 Trigger unit 3 O-ring 40 Spring 77 Trigger pin 4 Exhaust cover 41 C-ring 78 Arm guide 5 Muffler 42 Stop plate 79 O-ring 6 Rubber washer... - Page 11 8095903manual 11/4/05 3:06 PM Page 11...
