Summary of Contents for Ledj Stage Wash 36
- Page 1 . p r o l i g h t . c o . u k Stage Wash 36 Order code: LEDJ102 USER MANUAL...
- Page 2 Stage Wash 36 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 Stage Wash 36 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

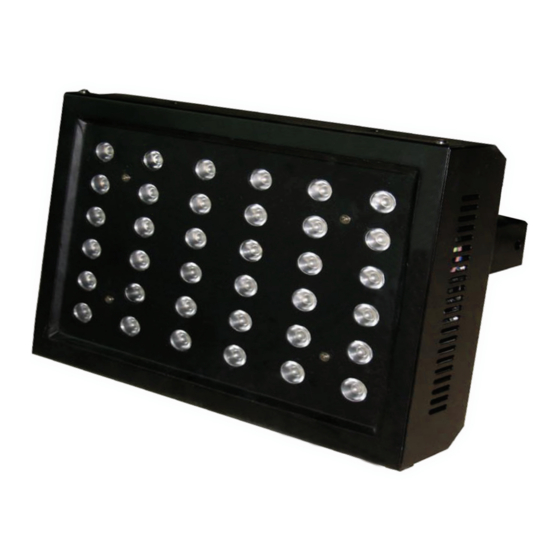

- Page 4 Button Operating Instructions The Stage Wash 36 is a DMX-512 controllable, full RGB colour mixing wash made up of high efficiency and super bright 1W LED’s. There are three colour groups (red, green and blue) whose intensity can be controlled individually allowing the creation of an unlimited range of colours.
- Page 5 Stage Wash 36 Operation Operation: There are 7 different operation modes to choose from: 1) Static colour mode 3) Colour fade mode 5) Sound Active mode 7) DMX modes 2) Colour change mode 4) Auto Run mode 6) Master/Slave mode 1, Static colour mode Mode button - By pressing the “MODE”...
- Page 6 Stage Wash 36 Operation DMX Value/Function 3 Channel DMX Chart Channel Value Function 000-255 RED (0 - 100%) 000-255 GREEN (0 - 100%) 000-255 BLUE (0 - 100%) 6 Channel DMX chart Channel Value Function RED (0 - 100%) 000-255...
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Stage Wash 36 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 Stage Wash 36 DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
