REPAIR PARTS

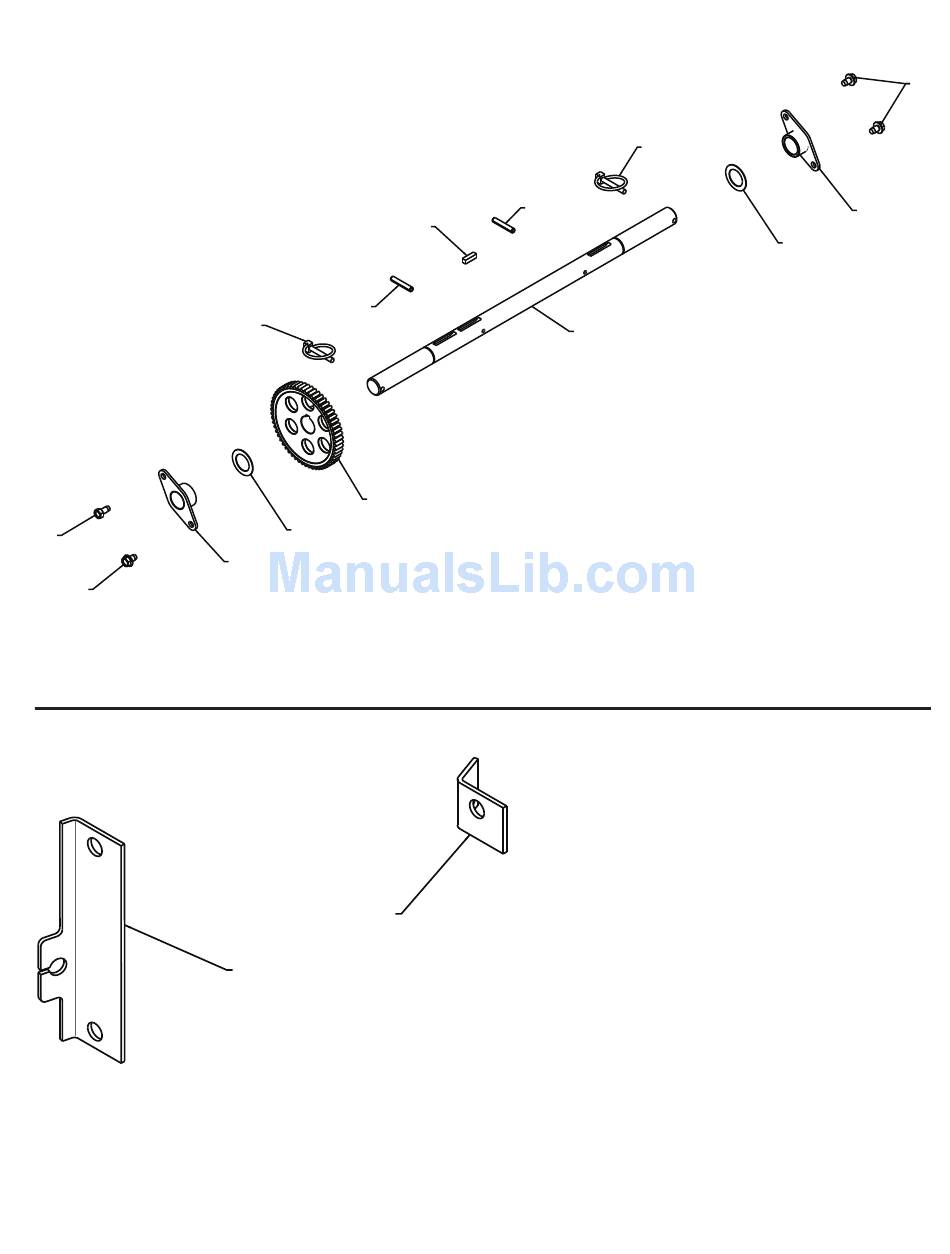

SNOW THROWER - MODEL NO. 1130SB-LSB
5
6
01.15.002-A
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1130SB-LSB (96193003800), PRODUCT NO. 961 93 00-38
1b
7
2
3
4
01.03.001-A
1
2
1b
8
1a
KEY PART
NO. NO.
1 532 40 49-23
1a 532 40 43-07
1b 532 18 42-06
2 532 18 00-81
3 532 17 46-97
4 532 17 98-30
5 532 14 63-15
6 817 49 05-08
7 532 15 54-43
8 532 18 92-82
KEY PART
NO. NO.
1 532 41 52-63
2 532 18 78-59
35
7
3
DESCRIPTION
(assy of 1a,1b) AXLE ASSEMBLY
AXLE SHAFT
ROLL PIN 3/16
GEAR
THRUST WASHER
AXLE BEARING
SCREW 5/16−18 X .625
BOLT 5/16−18 X .500
CLIK PIN
SQUARE KEY
DESCRIPTION
STEER CABLE BRACKET LH
STEER CABLE BRACKET RH
1 inch = 25.4 mm
DRIVE
6
4
