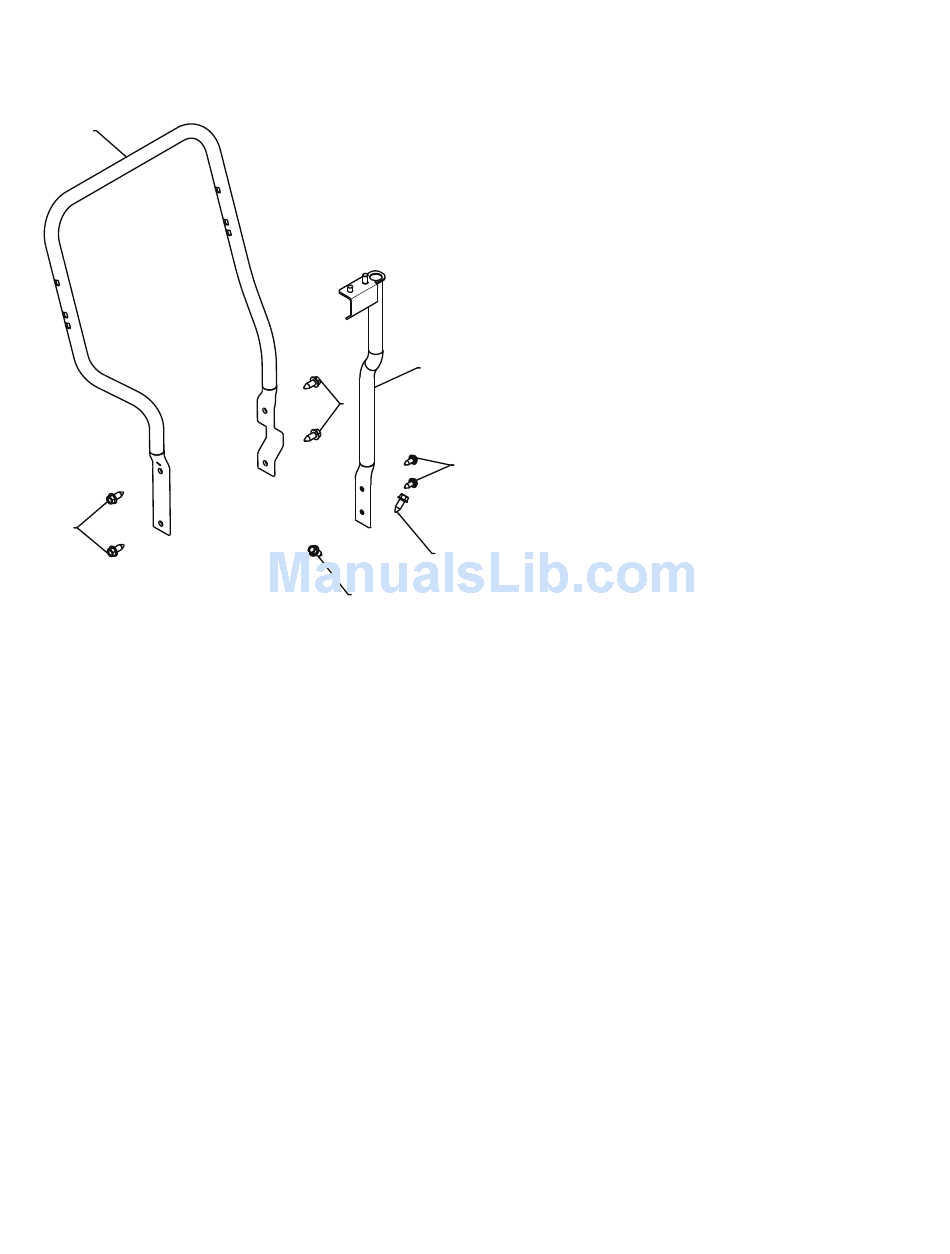

REPAIR PARTS
SNOW THROWER - MODEL NO. 1130SB-LSB
1
4
01.05.007-B
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1130SB-LSB (96193003800), PRODUCT NO. 961 93 00-38
KEY
NO.
1
2
3
4
2
4
3
4
4
29
PART
NO. DESCRIPTION
532 42 17-05 LOWER TUBE GRAY
532 42 21-17 PIVOT SUPPORT
817 00 05-12 BOLT 5/16−18 X .750
817 00 06-16 SCREW 3/8−16 X 1.00
1 inch = 25.4 mm
HANDLES
