Husqvarna 1130SB-LSB Owner's Manual page 31

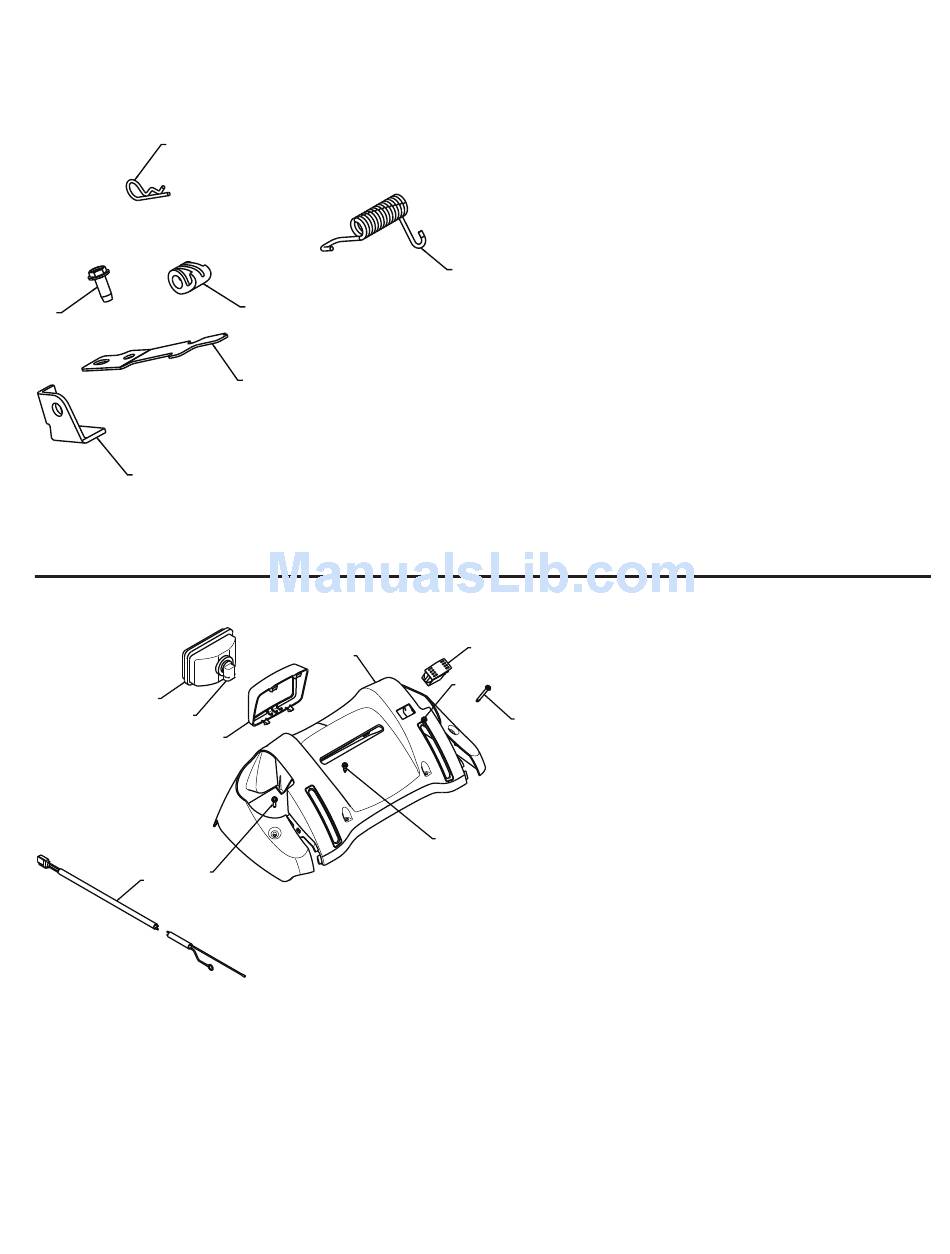

REPAIR PARTS
SNOW THROWER - MODEL NO. 1130SB-LSB
4
5
6
3
8
5
7
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1130SB-LSB (96193003800), PRODUCT NO. 961 93 00-38
2
1
01.08.007-B
1
2
01.10.010-A
KEY PART
3
NO. NO.
1 532 41 62-88
2 532 41 45-72
3 532 17 88-31
4 532 16 96-75
5 817 06 04-10
6 532 42 18-14
6
4
5
KEY PART
4
NO. NO.
1 532 42 13-51 CONSOLE PANEL GRAY
2 532 42 14-48 HEADLIGHT BEZEL GRAY
3 532 17 86-66 HALOGEN HEADLIGHT
4 532 18 44-71 SHOULDER SCREW 10−24 X .625
5 532 17 52-62 SCREW 10−24 X 1.25
6 532 41 77-60 GRIP SWITCH
7 532 40 56-99 WIRE HARNESS
8 532 40 16-20 BULB
31
DESCRIPTION
INTERLOCK SPRING
INTERLOCK CAM
TORSION SPRING
RETAINER
SCREW 1/4−20 X .625
INTERLOCK STOP
DESCRIPTION
1 inch = 25.4 mm
HANDLES
