Chassis / Engine / Pulleys - Husqvarna 1130SB-LSB Owner's Manual

REPAIR PARTS
SNOW THROWER - MODEL NO. 1130SB-LSB
3
5
4
1
6
2
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1130SB-LSB (96193003800), PRODUCT NO. 961 93 00-38
5
4
6
01.00.016-B
KEY PART
NO. NO.
- - - - - - - - - -
1 532 41 53-40
2 532 41 08-77
3 532 42 38-70
4 532 15 04-06
5 817 00 05-12
6 532 18 44-71
37

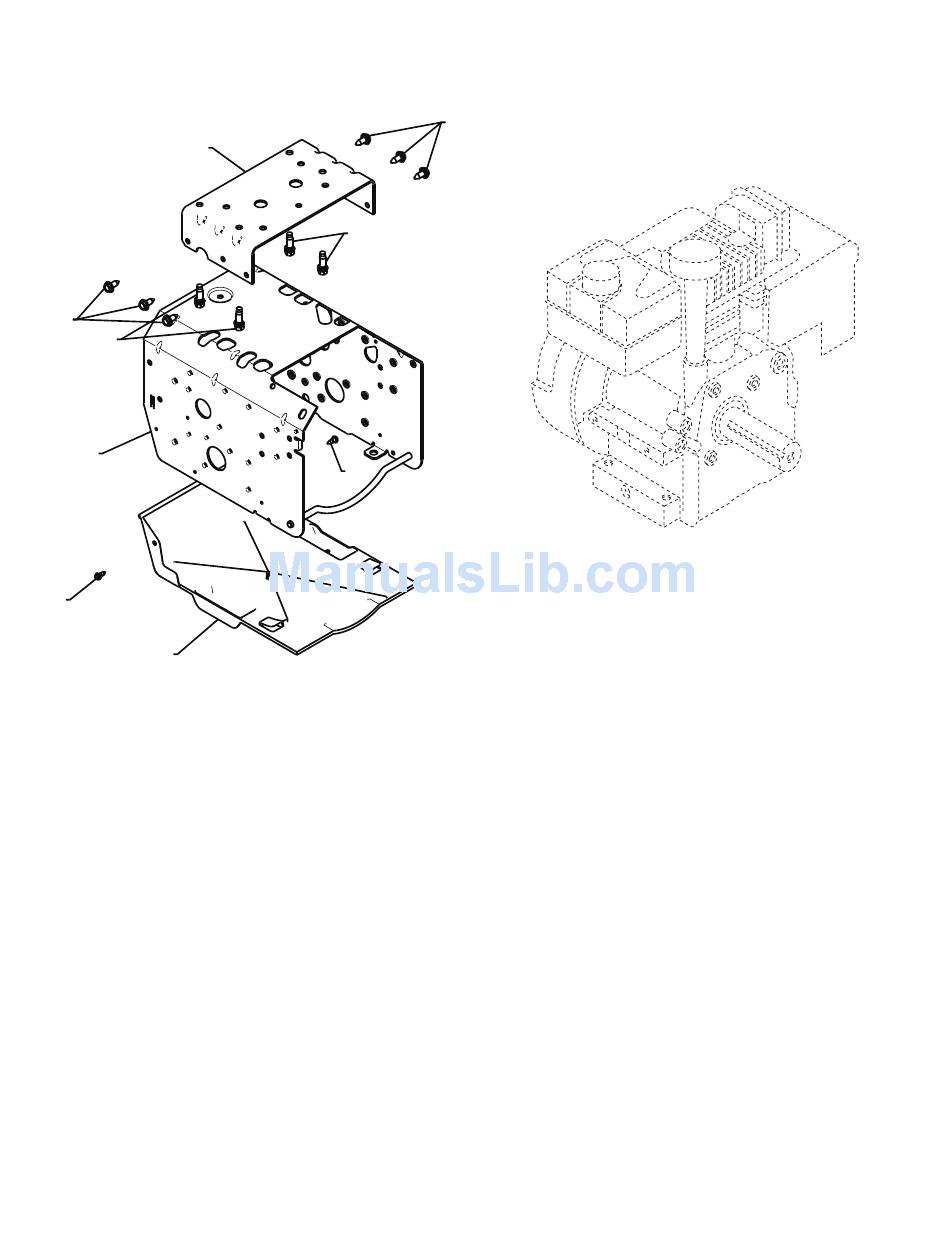

CHASSIS / ENGINE / PULLEYS

DESCRIPTION
ENGINE B&S MODEL 21P214-1181-E1
FRAME
BOTTOM PAN
ENGINE MOUNT PLATE
BOLT 3/8−16
SCREW 5/16−18 X .750
SCREW 10−24 X .625
1 inch = 25.4 mm
