REPAIR PARTS
SNOW THROWER - MODEL NO. 1130SB-LSB
1 2
1 3
NOTE: All component dimensions given in U.S. inches.
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1130SB-LSB (96193003800), PRODUCT NO. 961 93 00-38
4
KEY PART
NO. NO.
1 532 18 10-37
2 532 42 37-14
3 532 18 10-35
4 532 18 10-42
5 532 42 37-11
6 532 18 10-33
7 532 42 21-13
9 532 41 54-75
10 532 18 37-30
11 532 41 53-99
12 532 41 53-98
5
DESCRIPTION
DECAL, DANGER
DECAL, HUSQ
DECAL, DANGER, DEFLECTOR
DECAL, DANGER
DECAL, HUSQ
DECAL, INSTRUCTION
DECAL, AUTOMATIC
DECAL, SPEED CONTROL
DECAL, REMOTE DEFLECTOR
DECAL, LH TRIGGER
DECAL, RH TRIGGER
1 inch = 25.4 mm
41

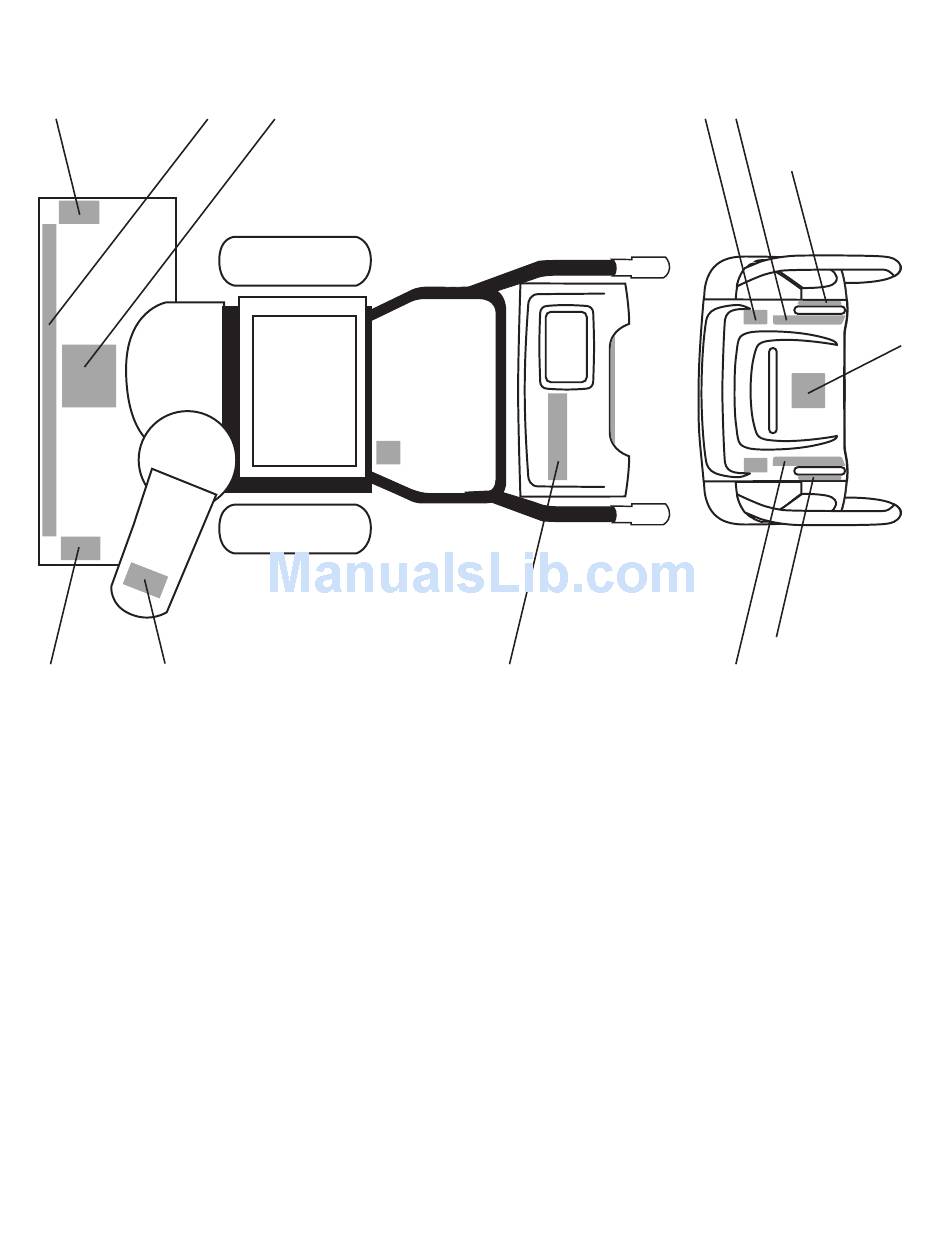

DECALS
7 9
12
11
10
6
