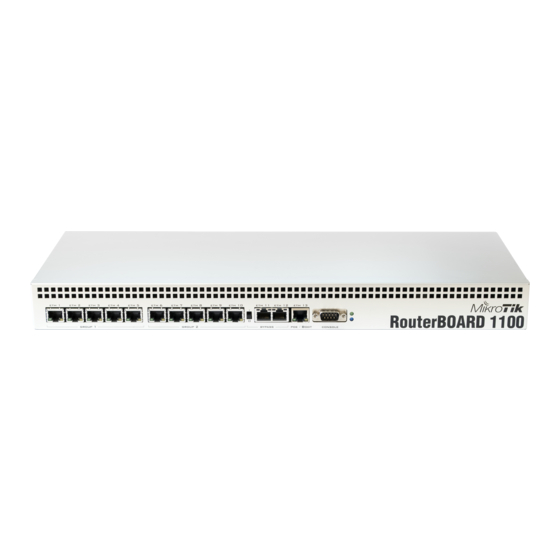

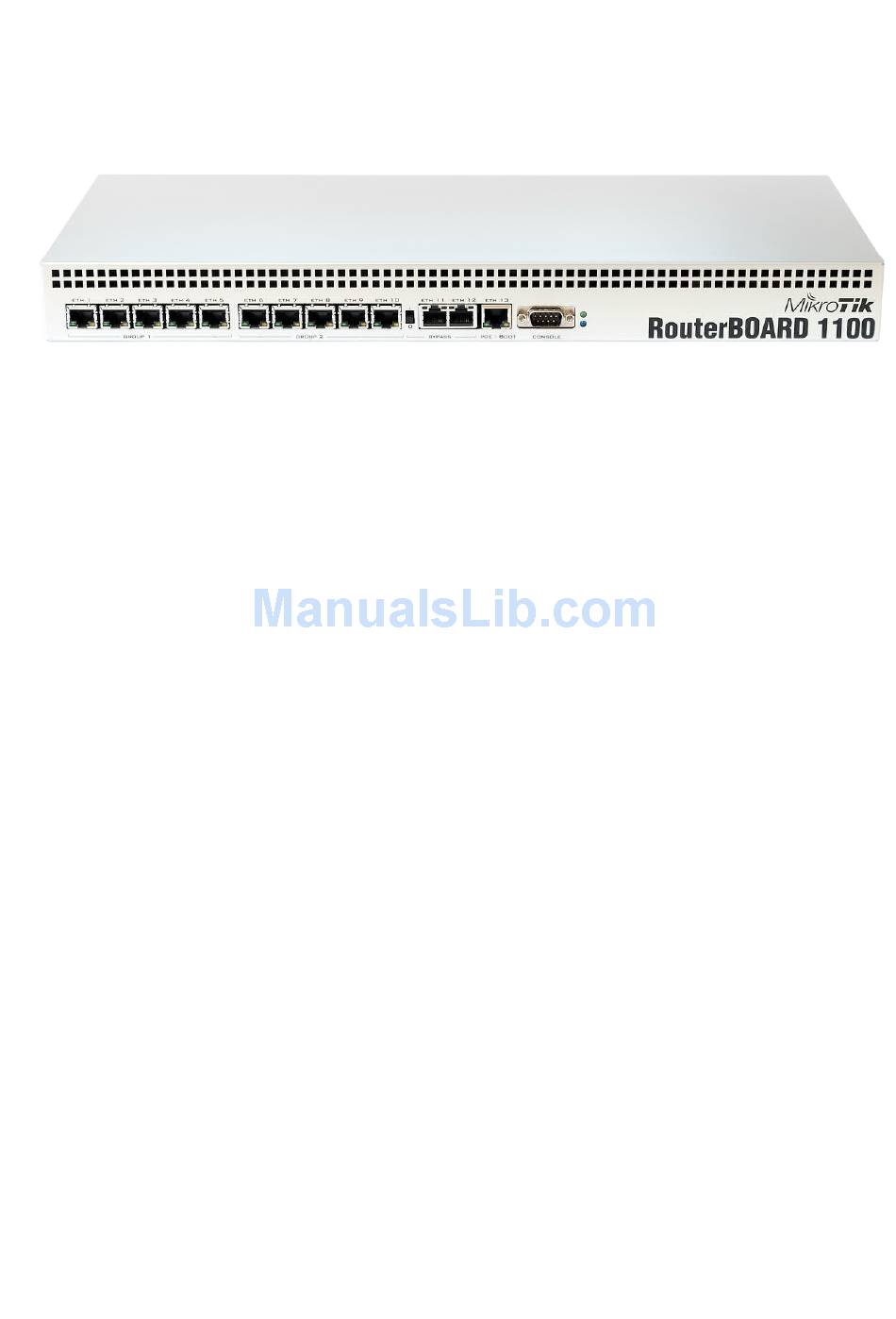

RouterBOARD 1100
User's Manual

Copyright and Warranty Information

Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by
copyright law. No part of it may be reproduced or transmitted in any form without prior written permission
from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls
SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective
holders.
Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15)
months from the shipping date to be free of defects in materials and workmanship under normal
use and service, except in case of damage caused by mechanical, electrical or other accidental or
intended damages caused by improper use or due to wind, rain, fire or other acts of nature.
To return failed units to MikroTik, you must perform the following RMA (Return Merchandise
Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and
improve the speed of the RMA process.
1.If you have purchased your product from a MikroTik Reseller, please contact the Reseller
company regarding all warranty and repair issues, the following instructions apply ONLY if you
purchased your equipment directly from MikroTik in Latvia.
2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made
for RB1000 and RB1100.
3. Out-of-warranty devices and devices not covered by warranty sent to Mikrotikls will be
returned to the sender at sender's cost.
RMA Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied,
including, but not limited to, the implied warranty of merchantability and fitness for a particular
purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this
manual, however, it is possible that it may contain technical inaccuracies, typographical or other
errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or
indirect, incidental, consequential or other damages that may result from such an inaccuracy,
including, but not limited to, loss of data or profits. Please report any inaccuracies found to
support@mikrotik.com
