MikroTik Cloud Core Router 1072-1G-8S+ Manual

Cloud Core Router 1072-1G-8S+

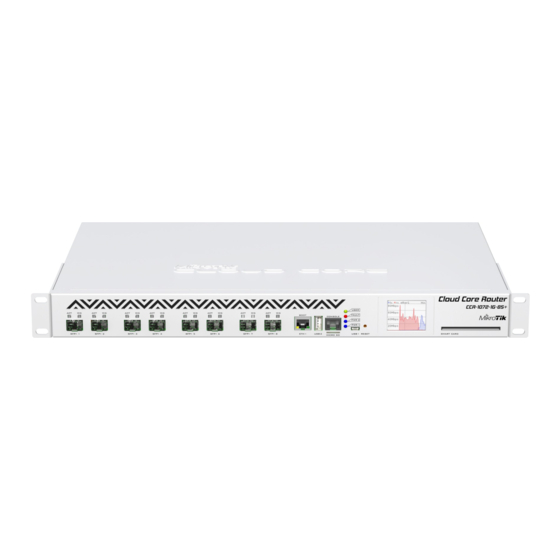

The CCR1072 is a high-performance multicore router with eight SFP+ cages. Ports are directly connected to a
Tilera 72 core CPU and assisted by 16 GB of built-in ECC RAM.

First use

The Ethernet port 1 (BOOT) has a default IP address for connecting: 192.168.88.1 username is admin and there is
no password. Please connect with your web browser to this IP address and choose Webfig to configure it. The
device doesn't have any other configuration applied by default, please connect to it, and set up WAN IP addresses,
user password, firewall, etc. Please see the

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack
mounts, or it can be placed on the desktop. Use a Phillips screwdriver to attach rackmount ears on both sides of
the device if designated use is for rackmount enclosure:
1. Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown on
the picture to the right;
2. Place the device in rackmount enclosure and align with the holes so that device fits conveniently;
3. Tighten screws to secure it in place.
The IP rating scale for this device is IPX0. The device has no protection from water contamination, please
ensure the placement of the device in a dry and ventilated environment. We recommend Cat6 cables for
our devices.
Mounting and configuration of this device should be done by a qualified person.
See mikrotik.com/products for the latest version of this document.
configuration section.
Document #50312 Modified on: 09.OKT.2019
