MikroTik mANTBox Series User Manual

mANTBox-series
This User Manual covers mANTBox models:
mANTBox 15s (RB921GS-5HPacD-15S)
mANTBox 2 12s (RB911G-2HPnD-12S)
mANTBox 19s (RB921GS-5HPacD-19S)
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Read the installation instructions before connecting the system to the power source.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for obtaining any
required local or national safety inspections of the structural integrity of the installation by the local authority/inspection department.
All installation methods for mounting an access point on any wall surface are subject to the acceptance of local jurisdiction.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation.
Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the
system.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk.
This device needs to be upgraded to RouterOS v6.48.3 or the latest version to ensure compliance with local authority regulations.

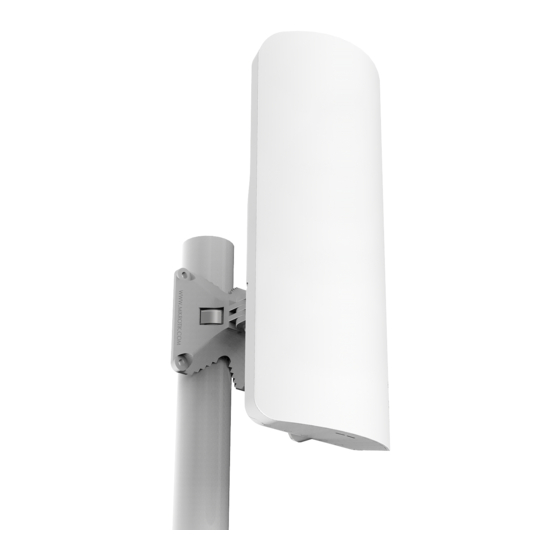

The mANTBox is a weatherproof outdoor device with a high-power wireless interface, and one Gigabit Ethernet connector, which supports MDI-X auto-
detection. The device has a built-in sectoral antenna. The device is packaged with a power adapter, a PoE injector, and a mounting kit.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the
general public.
First use
1. Unscrew the lid screw by hand;
2. The device accepts 8-30 V Passive PoE from a PoE injector (please compensate voltage for loss due to cable length) or from the power jack;
3. Connect the device to the included PoE injector with Ethernet cable;
4. Connect the PoE injector into the computer;
5. Connect the power adapter to the PoE injector;
6. Download the WinBox configuration tool
7. There is no default IP address set, user name:
8. Once connected configure the device, so it has an active Internet connection
9. Upgrade the RouterOS software to the latest version
10. In the "QuickSet, CPE" menu set up the following: Choose your country, to apply country regulation settings;
11. Set the antenna gain, depending on the antenna used;
12. Set up your router password in the bottom field.
Powering
The device comes with a 24 V 0.8 A power adapter. It can be used with the included PoE injector or the power jack. The device accepts 8-30 V for both
methods. The maximum power consumption of the device is 11 W at 24 V, specific model consumption is listed below.
mANTBox 15s (RB921GS-5HPacD-15S)-
mANTBox 2 12s (RB911G-2HPnD-12S)-
mANTBox 19s (RB921GS-5HPacD-19S)-
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mt.lv/winbox ;
admin
and there is no password, use
https://mt.lv/upgrade
13 W
11 W
13 W
the Neighbors tab and connect through the MAC address;
https://mt.lv/configuration ;
;
