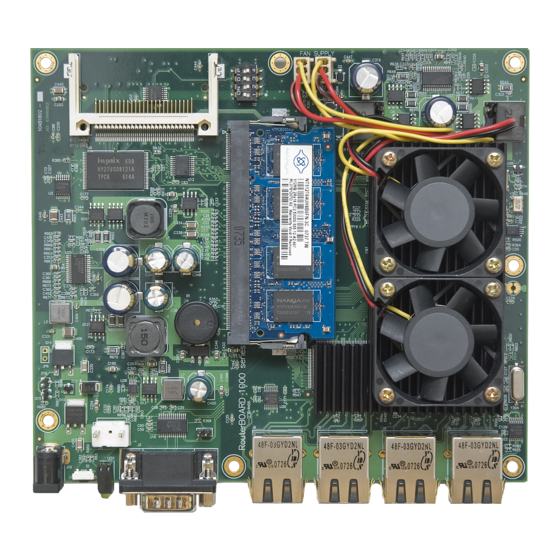

RouterBOARD 1000
User's Manual

Copyright and Warranty Information

Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by
copyright law. No part of it may be reproduced or transmitted in any form without prior written permission
from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls
SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective
holders.
Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of one year from the
shipping date to be free of defects in materials and workmanship under normal use and service, except in
case of damage caused by mechanical, electrical or other accidental or intended damages caused by
improper use or due to wind, rain, fire or other acts of nature.
If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding
all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment
directly from MikroTik Latvia
To return failed unit or units to MikroTikls you must perform the following RMA (Return Material
Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the
speed of the RMA process. Take into account that all goods have one year warranty.
Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including, but
not limited to, the implied warranty of merchantability and fitness for a particular purpose. The
manufacturer has made every effort to ensure the accuracy of the contents of this manual, however, it is
possible that it may contain technical inaccuracies, typographical or other errors. No liability is assumed for
any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other
damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits.
Please report any inaccuracies found to support@mikrotik.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RouterBOARD 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik RouterBOARD 1000

  • Page 1: Copyright And Warranty Information

    If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment...
  • Page 2: Table Of Contents

    RouterBOARD 1000 Series User's Manual Table of Contents Copyright and Warranty Information.................1 System Board View and Layout......................3 Specifications........................3 Hardware Guide..........................4 Memory and Storage Devices....................4 Memory........................4 Storage Device......................4 CompactFlash Slots......................4 Extension Slots........................4 MiniPCI Slots.........................4 Daughterboard Connector....................4 Input/Output Ports........................4 ports........................4 DB9 Serial Port......................4...
  • Page 3: System Board View And Layout

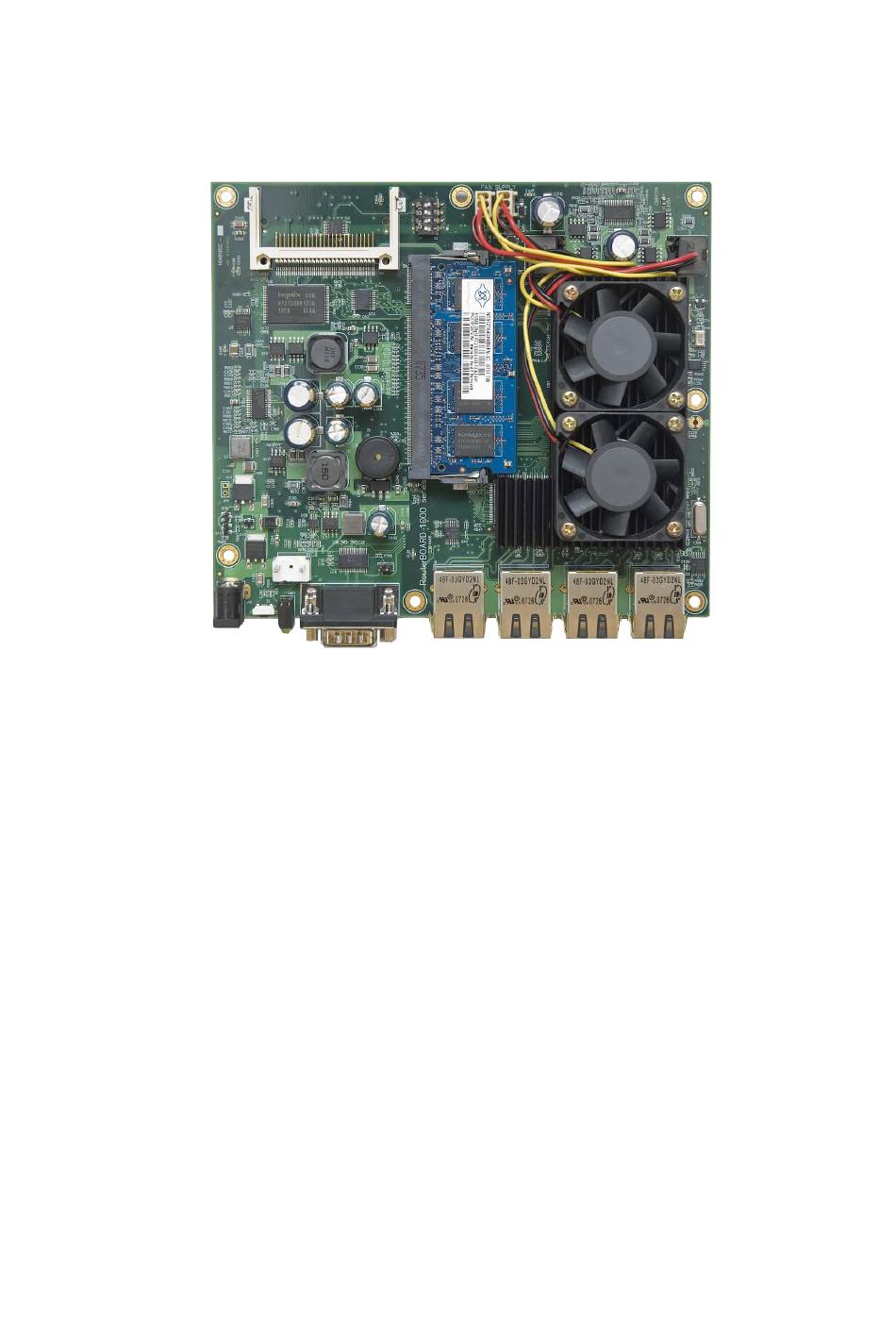

    RouterBOARD 1000 Series User's Manual System Board View and Layout Top view Layout You can download the board dimensions and case design files (PDF and DXF) from www.routerboard.com Specifications RouterBOARD 1000 MPC8548 1333MHz network CPU Memory SODIMM slot, no onboard module...
  • Page 4: Hardware Guide

    The board has two independent CompactFlash slots that support Compact Flash Type I or II cards and True IDE Microdrive storage devices. The first one (J4) is bootable. Warning! The RouterBOARD 1000 series boards do not support hot insert of CompactFlash/Microdrive devices.
  • Page 5: User's Guide

    Booting from network Network boot works similarly to PXE or EtherBoot protocol, and allows you to boot a RouterBOARD 1000 series boards from an executable image stored on a TFTP server. It uses BOOTP or DHCP (configurable in...
  • Page 6: Operating System Support

    RouterBOARD 1000 Series User's Manual Operating System Support MikroTik RouterOS MikroTik RouterOS, starting from version 3.0rc1, is fully compatible with RouterBOARD 1000 series embedded boards. RouterBOOT The RouterBOOT firmware (also referred as Bootloader here) provides minimal functionality to boot an Operating System.
  • Page 7: Boot Loader Upgrading

    The boot loader upgrading is possible from MikroTik RouterOS, from within the “/system routerboard” menu. Updates are included with each RouterOS update. The procedure is described in the MikroTik RouterOS manual.
  • Page 8: Firmware Settings

    RouterBOARD 1000 Series User's Manual The firmware version can be upgraded using “/system routerboard upgrade” command. Firmware Settings Boot loader settings are also accessible through this menu. [admin@MikroTik] > system routerboard settings print baud-rate: 115200 boot-delay: 2s boot-device: nand-if-fail-then-ethernet enter-setup-on: any-key...
  • Page 9: Button Index

    RouterBOARD 1000 Series User's Manual DC Fan 1 connector 1 GND 2 +5.5 V DC 3 Rotation speed feedback DC Fan 2 connector 1 GND 2 +5.5 V DC 3 Rotation speed feedback Button Index Software Reset 1 button. Loads the Primary boot loader...
