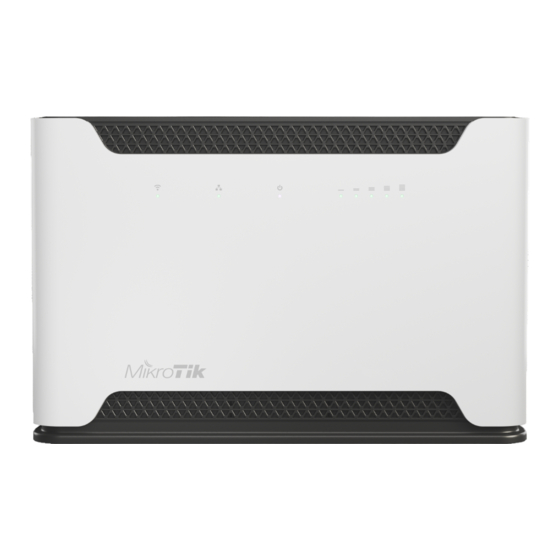

Chateau LTE6
Chateau LTE6
(D53G-5HacD2HnD-TC&FG621-EA)
The Chateau is a home router to be used with a cellular network provider sim card.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled
environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.

Quickstart

Please follow these quick steps to set up your device:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chateau LTE6 and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik Chateau LTE6

  • Page 1 Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
  • Page 2 We recommend clicking the "Check for updates" button on the right side and updating your RouterOS software to the latest version to ensure the best performance and stability, Must have a valid SIM card inserted; To manually update the device, please go to https://mikrotik.com/download Choose ARM packages for this device and download it to your PC.
  • Page 3 Insert the SIM card and power on the device. Scan the QR code with your smartphone and choose your preferred OS. Connect to the wireless network. SSID starts with MikroTik and has the last digits of the device's MAC address. Open application.
  • Page 4 Five Gigabit ports, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cables can be used for connecting to other network devices. USB type-A. SIM slot for Micro sim card. Mode button. Cover for external SMA antenna connectors. Sync button.
  • Page 5 Wireless network activity. Ethernet port activity. System LED. Signal strength. Cellular connection technology based on the System LED color: Red: GSM Yellow: 3G Blue: LTE Green: 5G NSA Violet: 5G SA  When LTE is not connected to the network, the system LED will blink red to indicate that there is some issue with the LTE connection. If the LTE interface is intentionally disabled (not being used), the system LED will glow blue.
  • Page 6 Please connect and disconnect the antenna, when the device is turned off! SMA connectors on the device are female. We recommend using our antenna https://mikrotik.com/product/mant_lte_5o Removing front cover to access PCB In case there is a need to access PCB, the front cover can be removed. ...
  • Page 7 Remove center screw; Use a small screwdriver to pry open cover in marked spots; Continue to pry it open by going up; At the end lift off the whole cover. Operating system support The device supports RouterOS software version v7. The specific factory-installed version number is indicated in the RouterOS menu /system resource. Other operating systems have not been tested.

This manual is also suitable for:

D53g-5hacd2hnd-tc&fg621-ea
