MikroTik CCR1009 Series Quick Setup Manual And Warranty Information

Cloud Core Router 1009 series
Setup Guide and Warranty Information

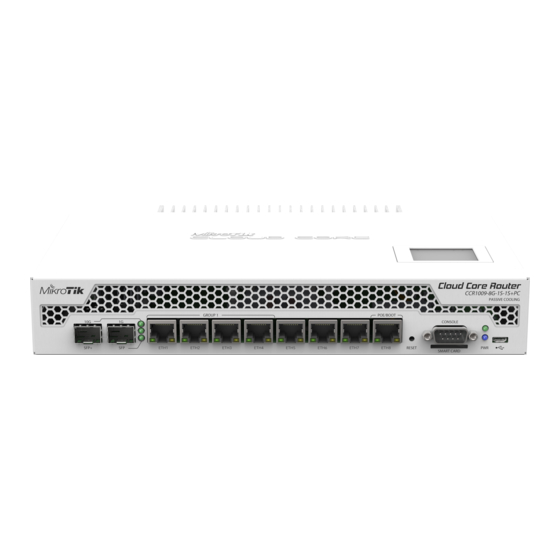

The CCR1009 is a high performance nine core CPU powered ethernet router.

First use

The device comes preinstalled with RouterOS and is ready to use. Device is compatible with RouterOS v6.30
and newer, if your device comes preinstalled with an earlier version, please upgrade before using it.
The Ethernet ports 1 has a default IP address for connecting: 192.168.88.1 username is admin and there is
no password. Please connect with your web browser to this IP address and choose Webfig to configure it. The
device doesn't have any other configuration applied by default, please connect to it, and set up WAN IP
addresses, user password, firewall etc.
See this page for connection and configuration guides:

Powering

The device accepts powering in the following ways:
Dual power supplies for redundancy, 110-250V input, IEC connectors

PoE input on Ether8, 12-56V passive PoE only


Extension Slots and Ports

CCR1009-8G-1S-1S+: 8x 1Gbit Etheret, 1x SFP, 1x SFP+, microSD, microUSB, RS232 serial port, smart card slot

CCR1009-8G-1S: 8x 1Gbit Etheret, 1x SFP, microSD, microUSB, RS232 serial port


Resetting the device

In case you wish to return the device to its original configuration, you can use the RESET button. Hold this
button during boot time until LED lights start flashing, then release the button to reset RouterOS
configuration. You can use this procedure if you have forgotten the password to access the device, or simply
wish to return the unit to its default configuration state.

Buttons and Jumpers

RouterBOOT reset button (image Reset1) has several functions:

 Hold the button before powering on the device, and at power up, the button will force load the backup boot
loader. Continue holding the button for the other two functions of this button:
 Release the button when green LED starts flashing, to reset RouterOS configuration. To not load backup boot
loader, you can start holding the button after power is already applied
 Release the button after LED is no longer flashing (~20 seconds) to cause device to look for Netinstall servers
(required for reinstalling RouterOS over network)
RouterOS reset jumper hole (image Reset2): resets RouterOS software to defaults. Hold screwdriver pressed to

this reset hole, and boot the device. Hold screwdriver in place until RouterOS configuration is cleared (10 seconds).

Operating System Support

Currently tested operating system is MikroTik RouterOS (starting from version 6.30).

Safety Notice

Electric shock hazard. This equipment is to be serviced by trained personnel only.
See www.routerboard.com for more information. Contact support@mikrotik.com
http://wiki.mikrotik.com/wiki/Category:Manual
