SignaMax 065-7528 User Manual

Dect telephonest ethernet web smart switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

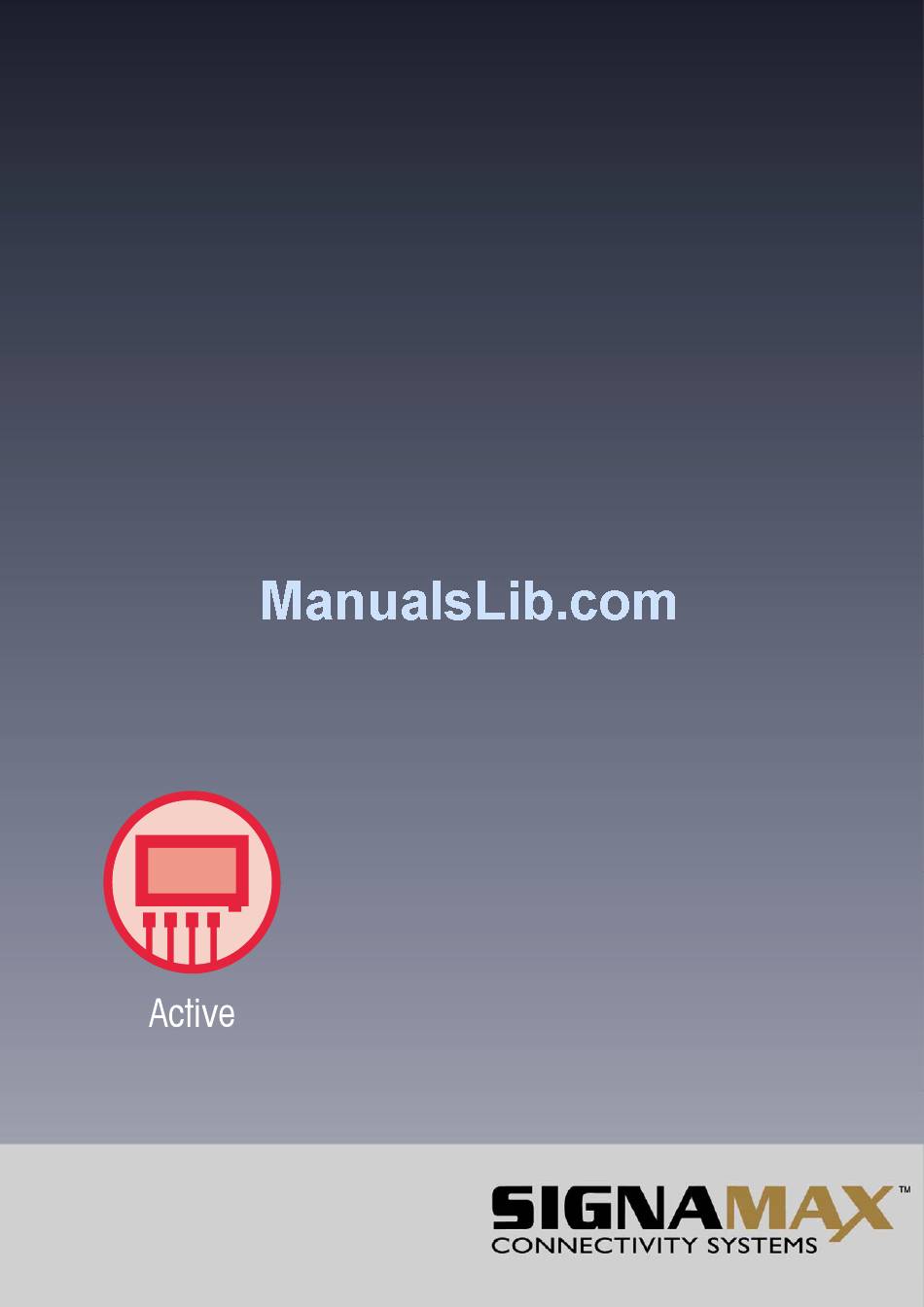

8 port Nway Fast Ethenet
Web Smart Switch
:
065-7508
Model
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 065-7528 and is the answer not in the manual?

Questions and answers

Related Manuals for SignaMax 065-7528

Summary of Contents for SignaMax 065-7528

  • Page 1 8 port Nway Fast Ethenet Web Smart Switch 065-7508 Model User‘s Guide...
  • Page 2 Use a twisted pair cable to connect this switch to your PC. Step 2: Set your PC’s IP to 192.168.2.xx. Step 3: Open the web browser (like IE…), and go to 192.168.2.1 site, and then you will see the login screen. ID and the password: admin SIGNAMAX LLC • www.signamax.eu...
  • Page 3 Step 4: After the authentication procedure, the home page shows up. Select one of the configurations by clicking the icon. - Administrator - Port Management - VLAN Setting - QoS Setting - Port Security - Logout SIGNAMAX LLC • www.signamax.eu...

  • Page 4: Administrator: Authentication

    2. Click “Update” to confirm the new change. 3. Turn off the power and reset this switch. 4. After resetting, turn on the switch for the new change. Now, you can use the new user name and the password. SIGNAMAX LLC • www.signamax.eu...

  • Page 5: Administrator: System Ip Configuration

    “Setting Process OK!!” will be shown on the screen. 3. Turn off the power and reset this switch. 4. After resetting, turn on the switch for the new change. Now, the setting of “System IP Configuration” is finished. SIGNAMAX LLC • www.signamax.eu...

  • Page 6: Administrator: System Status

    Administrator: System Status MAC address and system version will be shown on the screen. 1. Change the new comment of this switch by typing the new comment. 2. Click “Update” to confirm the new change. SIGNAMAX LLC • www.signamax.eu...
  • Page 7 Administrator: Load Default Setting to EEPROM 1. Click “Load” to back to the factory default setting. 2. Turn off the power and reset this switch. 3. After resetting, turn on the switch for the new change. Now, the default is loaded. SIGNAMAX LLC • www.signamax.eu...

  • Page 8: Administrator: Firmware Update

    Administrator: Firmware Update Follow the instruction on the screen to update the new firmware. Please contact with your sales agents to get the latest firmware information. SIGNAMAX LLC • www.signamax.eu...
  • Page 9 Select the “Port No.” - configure the mode below: 1. “Link Capability” – Auto-Nego. or 100M or 10M mode. 2. “Duplex” - select the port to full or half-duplex mode. 3. “Tx & Rx” - enable/disable Tx & Rx capability of the port. SIGNAMAX LLC • www.signamax.eu...

  • Page 10: Port Management: Bandwidth Control

    1. “TX Rate” : set the maximum transmission rate of this selected port and choose the full speed or in 128K/256K/512K/1M/2M/4M/8M speed. 2. “RX Rate” : set the maximum receiving rate of this selected port and choose full speed or in 128K/256K/512K/1M/2M/4M/8M speed. SIGNAMAX LLC • www.signamax.eu...

  • Page 11: Port Management: Broadcast Storm Control

    Port Management: Broadcast Storm Control 1. “Setting” : tick the “Enable” to function the “Broadcast Storm Control”. 2. Click “Update” to confirm the setting. Now, the setting of “Broadcast Storm Control” is finished. SIGNAMAX LLC • www.signamax.eu...
  • Page 12 Port Management: Max Packet Length 1. Select the maximum packet length setting, 1536 byte or 1552 byte of this switch. 2. Click “Update” to confirm the setting. Now, the setting of “Max Packet Length” is finished. SIGNAMAX LLC • www.signamax.eu...

  • Page 13: Port Management:poe Configuration

    POE class : each POE port will detect the class of the attached PD (Powered Device) 4. Click “Update” to confirm and finish the setting. Now, the setting of “POE Configuration” is finished. SIGNAMAX LLC • www.signamax.eu...
  • Page 14 1. Select a group, and then click the port number which you want to put it into the selected VLAN group. 2. Click “Update” to confirm and finish the setting. Now, the setting of “VLAN Setting” is finished. SIGNAMAX LLC • www.signamax.eu...
  • Page 15 This is a special design for easily setting the switch VLAN into “VLAN Per Port“. 1. Choose “Destination Port No”. 2. Choose “Disable Port” 3. Click “Update” to confirm and finish the setting. After this setting, all ports can only connect to the destination port. SIGNAMAX LLC • www.signamax.eu...
  • Page 16 2. “VLAN Tag/IP/DS” - select the port which you want to configure as packets. It means the packet with special Tag/IP will be firstly transmitted. 3. Click “Update” to confirm and finish the setting. SIGNAMAX LLC • www.signamax.eu...
  • Page 17 QoS Setting: High Priority Queue Configuration You can select WRR low weight 1/4 or 1/8. Click “Update” to confirm and finish the setting. SIGNAMAX LLC • www.signamax.eu...
  • Page 18 QoS Setting: Customization Diffserv Please follow the instruction on the screen to update the setting. SIGNAMAX LLC • www.signamax.eu...

  • Page 19: Port Security

    1. Enable: allow the packet which has this MAC address to activate on the port. The port will record the first receiving source MAC address as the security MAC address. 2. Click “Update” to confirm and finish the setting. Logout: You can click “Logout” to logout. SIGNAMAX LLC • www.signamax.eu...
