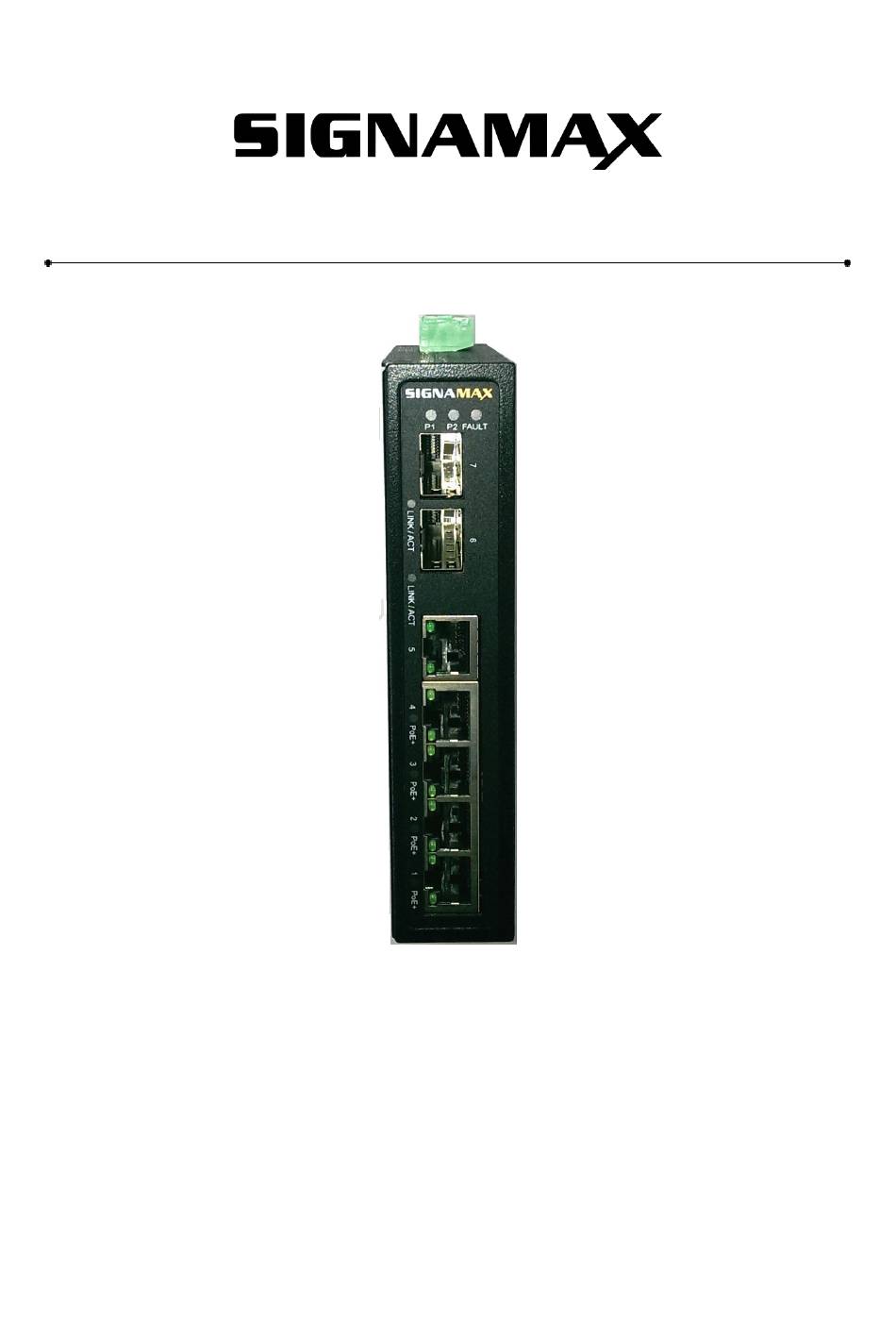

- Page 1 065-7407GPOEP User Manual Last Update: July 8, 2015 Version 1.0...
- Page 2 Signamax, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Signamax, Inc. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Industrial Grade Gigabit Unmanaged Ethernet Switches User Manual Version 1.0 (August 2014) This manual supports the following model: • 065-7407GPOEP This document is the current official release manual. Please check our website (www.signamax.com) for any updated manual or contact us by e-mail (sales@signamax.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Key Features ......................1 Package Contents ....................2 Safety Precaution ....................2 Hardware Description ....................3 Physical Dimensions ....................3 Front Panel ......................4 Top View........................ 4 LED Indicators......................5 Ethernet Ports ....................... 5 Cabling ........................7 Wiring the Power Inputs.................. -
Page 5: Overview
Overview The Signamax 065-7407GPOEP is an Industrial Gigabit unmanaged Ethernet switch with an IP30 rating and a pre-installed DIN-Rail mount. It has four IEEE 802.3at compliant ports (30W/port) and two dual-rate (100/1000) SFP slots, suitable for applications that require high bandwidth and long distance communication. -
Page 6: Package Contents
Package Contents 1 – 065-7407GPOEP 7-port industrial PoE+ gigabit unmanaged Ethernet switch 1 - User manual 1 - Product CD 2 - Wall mounting brackets and screws 1 - DC cable –18 AWG & DC jack 5.5x2.1mm... -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of the Signamax 065-7407GPOEP 7-port industrial PoE+ gigabit unmanaged Ethernet switch. Figure 2.1: 065-7407GPOEP Physical Dimensions... -
Page 8: Front Panel
Figure 2.2: The Front Panel of 065-7407GPOEP Top View Figure 2.3, below, shows the top panel of the 065-7407GPOEP switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). Figure 2.3: Top Panel View of 065-7407GPOEP... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the 065-7407GPOEP switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. - Page 10 RJ-45 Pin Assignments (Table 2.2) Pin Number Assignment Table 2.2: RJ-45 Pin Assignments Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use straight-through cables (see Figure 2.4) for all network connections to PCs, servers, other switches or hubs.
-
Page 11: Cabling
The following figures show the 10,100, and 1000 Ethernet RJ-45 pin outs. Figure 2.6: RJ45 Ethernet Port Pin Outs Figure 2.7: Straight-Through Cable Schematic Figure 2.8: Crossover Cable Schematic Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. - Page 12 Figure 2.9: Transceiver to the SFP Module Figure 2.10: Transceiver Inserted Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.11. Figure 2.11: LC Connector to the Transceiver...
-
Page 13: Wiring The Power Inputs
To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.12 Figure 2.12: Remove LC Connector Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.13 Figure 2.13: Pull Out from the SFP Module... -
Page 14: Wiring The Fault Alarm Contact
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.15. Figure 2.15: Power Terminal Block Note: Only use copper conductors, 60/75°C, tighten to 5 lbs. The wire gauge for the terminal block should range between 18~20 AWG. Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.16. -
Page 15: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail mount is pre-installed on the 065-7407GPOEP switch at the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 16: Wall Mounting
Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. Step 3 Use the screws to screw the wall mounting bracket on the industrial Ethernet switch. Step 4 Use the hook holes at the corners of the wall mounting bracket to suspend the 065-7407GPOEP switch on the wall. - Page 17 Step 5 To remove the wall mount bracket, do the opposite from the steps above. Figure 3.4: Remove DIN-Rail Bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 18: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install the Signamax 065-7407GPOEP 7-port industrial PoE+ gigabit unmanaged Ethernet switch. Installation Steps Step 1 Unpack the 065-7407GPOEP switch from the original packing box. Step 2 Check if the DIN-Rail bracket is screwed on the switch. -
Page 19: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Signamax for technical support service, if the problem still cannot be resolved. ... -
Page 20: Technical Specification
Technical Specification Table 7.1 has the technical specifications for the Signamax 065-7407GPOEP switch. IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet Standard IEEE 802.3ab 1000BaseT IEEE 802.3z Gigabit Fiber IEEE 802.3at Power over Ethernet Protocol CSMA/CD 14,880pps for Ethernet port... - Page 21 1.18 in. (W) x 3.90 in. (D) x 5.59 in. (H) *30mm (W) x 99mm (D) x 142mm (H)+ FCC Class A CE EN61000-4-2/3/4/5/6/8/11/12 CE EN61000-6-2 CE EN61000-6-4 IEC60068-2-32 (Free fall) Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 508 (Pending) Table 7.1: 065-7407GPOEP Technical Specification...
