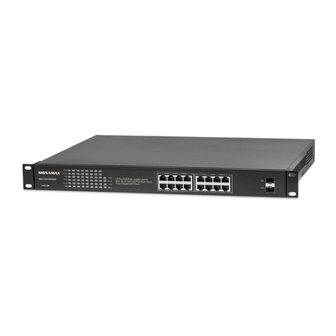

SignaMax 065-7331AGPOEP User Manual

SignaMax 065-7331AGPOEP User Manual

16-port 10/100/1000baset/tx poe/poe+ plus 2 -- 1000base sfp port switch

Advertisement

Quick Links

065-7331AGPOEP
16-port 10/100/1000BaseT/TX
PoE/PoE+ plus
2 -- 1000Base SFP port Switch
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 065-7331AGPOEP and is the answer not in the manual?

Questions and answers

Summary of Contents for SignaMax 065-7331AGPOEP

  • Page 1 065-7331AGPOEP 16-port 10/100/1000BaseT/TX PoE/PoE+ plus 2 -- 1000Base SFP port Switch User’s Manual...
  • Page 2 The Signamax 065-7331AGPOEP is the ideal choice for those who desire to economically deploy wireless access points, IP cameras, access control devices, and...
  • Page 3: Key Features

    Key Features  IEEE 802.3af/at Power over Ethernet PoE/PoE+ compliant.  Supports sixteen (16) 10/100/1000 Mbps Gigabit Ethernet 10/100/1000BaseT/TX PoE/PoE+ ports with 2 Gigabit 1000Base SFP uplink ports (18 ports total).  Provides up to 30 watts for each PoE port. (250 watts total power supply).
  • Page 4 User Guide: 1. Check the PoE switch: 1. Please check the enclosure, the RJ-45 ports, and the LED indicators, making sure they are ok. 2. Connect the PoE switch to AC power, making sure the initialization of the PoE switch occurs as below: ...
  • Page 5: Technical Specifications

    Technical specifications: Applicable IEEE 802.3i 10BaseT Standards IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000Base–X (via SFP module) IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Speed 100/1000 Mbps Full Duplex Network Port:10/100/1000BaseT/TX Ethernet RJ-45 Port Performance Bandwidth:36 Gbps Network delay...
  • Page 6: Contact Information

    Contact Information: SIGNAMAX, INC an AESP Company 999 N.W. 159th Drive Miami, Florida 33169, U.S.A. Phone: 305-944-7710 Fax: 305-949-4483 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com...
