Assemble (Disassemble) Thermostat - Nefit ModuLine 300 Operating Manual

Connect the thermostat cable to the boiler
in accordance with table 1 on page 11.
– The ModuLine 300 is directly
connected to the boiler (
on page 11).
– The thermostat is not suitable for
use with a MBC2-controller.
3.3

Assemble (disassemble) thermostat

3.3.1 assemble thermostat
Hook the thermostat at the back of the base
panel (Fig. 17, step 1).
Press the bottom of the thermostat against
the base panel, until an audible "click"
(Fig. 17, step 2). The thermostat is then
locked into the wall panel.
3.3.2 Disassemble thermostat
Unlock the thermostat by pressing the
button (Fig. 18, step 1).
Tilt the bottom of the thermostat
Remove the thermostat (Fig. 18, step 2).
Technical specifications are subject to change without prior notice.
Operating manual ModuLine 300 • edition 12/2010
table 1

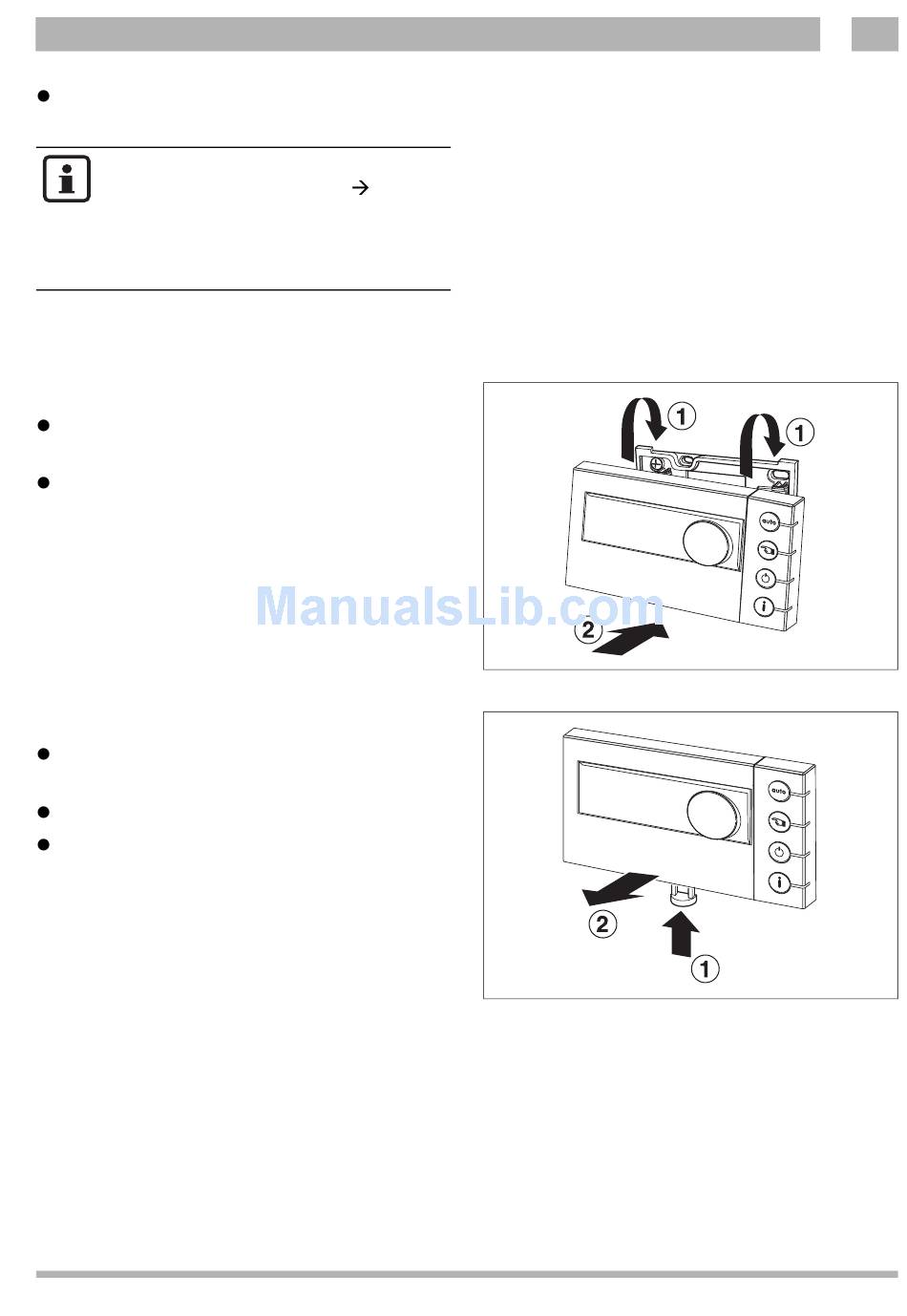

Fig. 17 Lock the thermostat into place
