Installation

3 Installation
3.1

Choose installation location

Installation in the living room
Attach the thermostat to an interior wall of
the reference room (Fig. 15).
A reference room is a room (e.g. the
living room) where:
– the temperature can be measured,
which is representative for the
whole house;
– one spends most of its time.
Ensure sufficient free space around the
thermostat (Fig. 15, pos. 1).
Do not install the thermostat too close
to sources of heat, such as a radiator,
lamp or television. These can
influence the control.
3.2

Assemble wall panel

The wall panel can directly be attached to the
wall or on a junction box.
Ensure at installation on a junction
box, that possible draught from the
junction box cannot influence the
measurement of the room
temperature. If necessary, fill up the
junction box with insulation material.
Remove the plug of the boiler from the
socket.
Connect the cable of the thermostat to the
cable clamps "RC" (Fig. 16, pos. 1). The
connection order of the wires is arbitrary.
NOTE!
Do not connect the wires to the
"EXT"-connection.
Nefit B.V. • http://www.nefit.nl
12

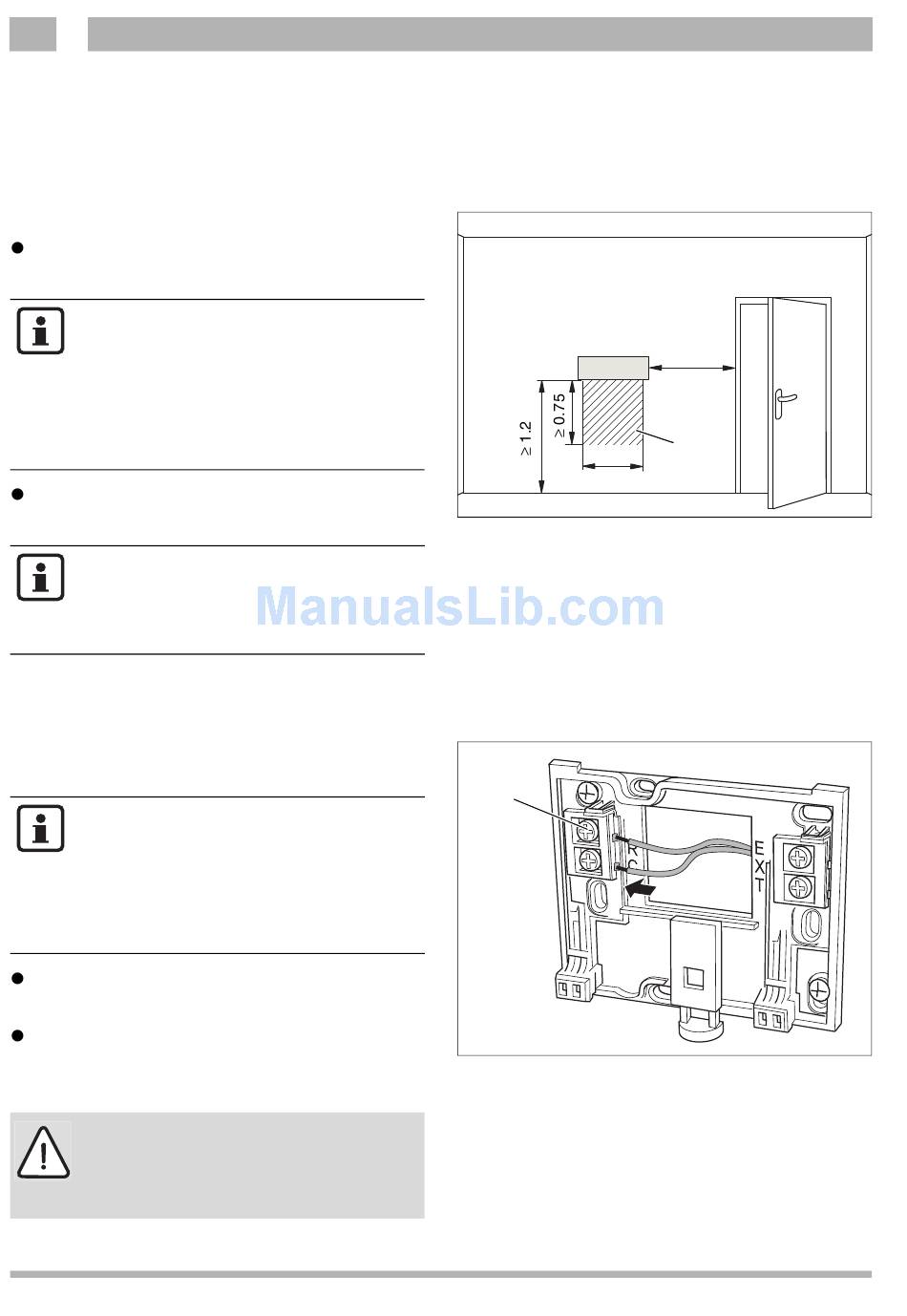

Fig. 15 Installation location in the living room
(dimensions in m)
pos. 1: Free space at the bottom of the thermostat
1
Fig. 16 Connect thermostat cable
Technical specifications are subject to change without prior notice.
Operating manual ModuLine 300 • edition 12/2010
≥ 1.0
ModuLine
1
≥ 0.6
