Owner's Manual
27 Walkaround
Copyright 1996 Pro-Line Boats Inc.
P.O. Box 1348,
Crystal River Fla. 34423 All rights reserved. Rev. 7-06-04
Specifications subject to change without notice. Actual boats may vary from
drawings.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27 Walkaround and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Line Boats 27 Walkaround

Summary of Contents for Pro-Line Boats 27 Walkaround

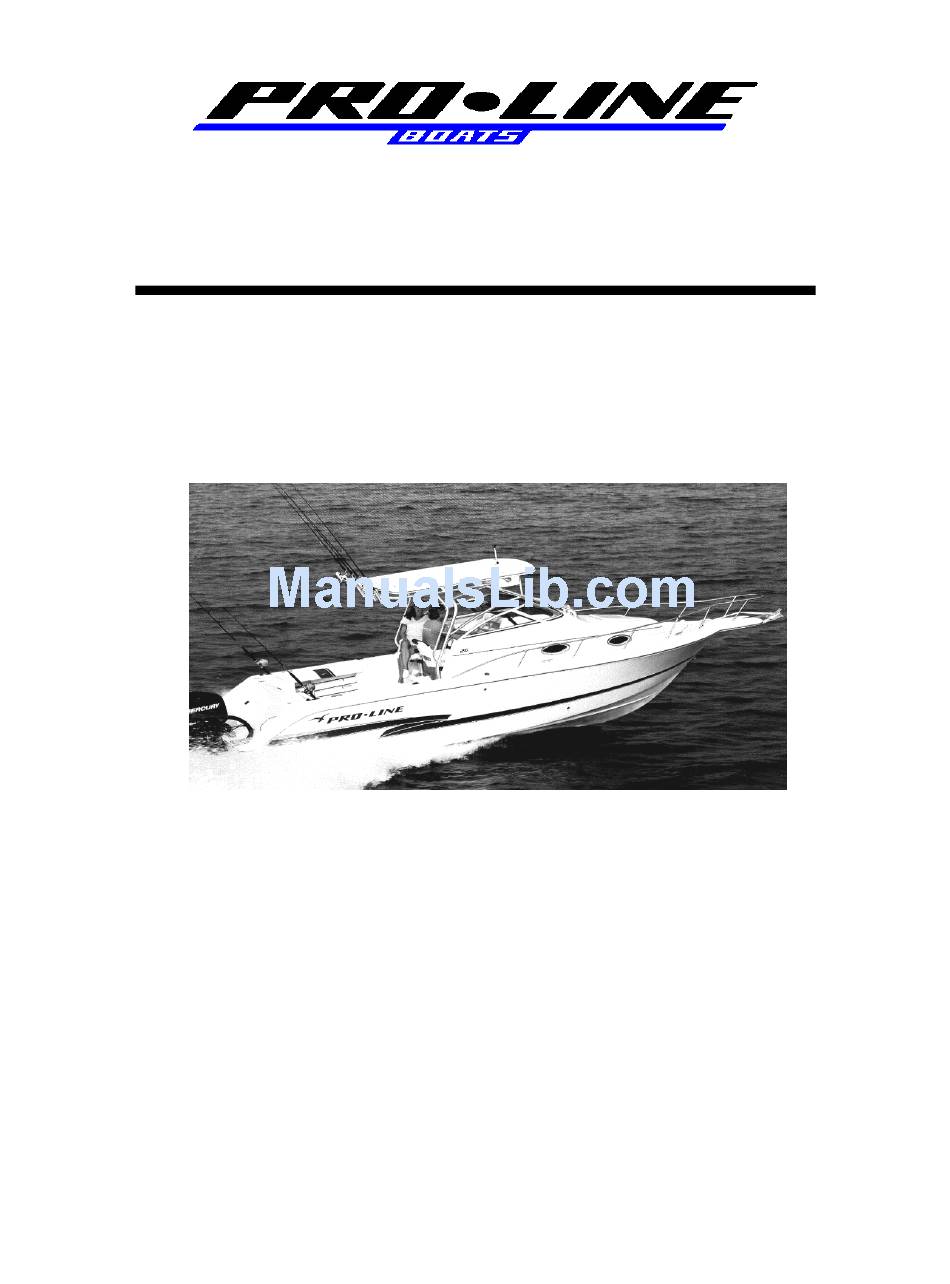

  • Page 1 Owner’s Manual 27 Walkaround Copyright 1996 Pro-Line Boats Inc. P.O. Box 1348, Crystal River Fla. 34423 All rights reserved. Rev. 7-06-04 Specifications subject to change without notice. Actual boats may vary from drawings.

  • Page 2: Table Of Contents

    Table of Contents Introduction Dealer / Customer responsibilities Registration Insurance Safety Regulations Equipment Passenger safety Rules of the road Hazardous conditions Alcohol Carbon monoxide Fire Flooding Controls Ignition Choke Safety shut down Shift / Throttle / Trim Steering Instruments: Fuel Gauge, Water Temperature, Volt, Tachometer, Speedometer, Trim, Options Switches: Windshield Wipers, Windlass, Bilge Pump, Lights, Breaker, Trim Tabs...
  • Page 3 Fiberglass / Gel coat Marine growth Plexiglas Stainless Steel/ Aluminum Canvas Upholstery: Vinyl, Fabric Corrosion Protection Winterization, Storage, Mooring Appendix VIII Boat ID Trouble Shooting Chart Nautical Terms Specifications Wiring...

  • Page 4: Introduction

    Introduction Congratulations! You are now the proud owner of a new Pro-Line 27 Walk-around sport fishing boat. Welcome into the proud family of satisfied Pro-Line owners. Every expedition lets you enjoy the outstanding features designed into every boat we construct. Your new Pro-Line is more than just a boat, it's a lifestyle.

  • Page 5: Regulations

    Regulations The USCG is the authority of all the waterways. State boating regulations are enforced by local authorities. You are subject to marine traffic laws and "Rules of the Road" for both federal and state waterways, and must submit to boarding if requested by proper authority. There are many publications available from the Coast Guard concerning regulations and more.

  • Page 6: Rules Of The Road

    Rules of the Road Know and use the rules of the road, the information here is only a brief overview. For detailed information contact the USCG. Audible warning signals:  One short horn blast: starboard course change.  Two short horn blasts: port course change. ...

  • Page 7: Flooding

    Controls Pro-Line Boats offers many different engine and drive unit choices, therefore the information in this manual is general in regards to engine and controls. Refer to the engine/ drive manuals in your owner’s packet for additional, specific information.

  • Page 8: Steering

    Steering Your Pro-line is equipped with a self contained hydraulic steering system. When the steering wheel is turned the helm pump pumps fluid to the steering cylinder, causing the boat to turn. Stern drive 27's use a rack and cable helm unit. Periodically check the fluid level and fill if necessary.
  • Page 9 Volt The volt meter indicates battery voltage; normal reading is between 12 to 15.5 volts. A low reading indicates to heavy of a load or a dysfunction in the charging system. Too high of a voltage indicates a fault of the charging circuitry and continued operation will damage the battery. Tachometer The tachometer indicates the revolutions per minute (RPM) of your engine.
  • Page 10 Gauges Throttle / Shift Key Switch Helm Switches Switches (wiring shown from back side) Helm, 2 switch panel...
  • Page 11 Windshield Wiper (optional) For operation in rain or adverse conditions, optional windshield wipers enhance visibility from the helm and therefore safety. Windlass (optional) Refer to the windlass manual for operation of the optional windlass. The Windlass is protected by a breaker located on the helm breaker panel.

  • Page 12: Trim Tabs

    Before the boat is underway depress the bottom half of both switches until the tabs are fully elevated (bow up position) while underway and in open water clear of other boaters, depress the top half of both switches in half second bursts to achieve the desired degree of bow down trim. To correct a starboard list give the top half of the port switch a series of bursts until the list is corrected.

  • Page 13: Head/ Waste

    Fresh water tank Sea Water System (optional) The bait-well/ wash down switch controls a demand pump. A valve located inside the transom hatch directs flow either to the wash down outlet or through the baitwell. The valve is controlled remotely from the port side of the cockpit. Seacocks on all below water line fittings should be closed when not in use.

  • Page 14: Fuel/ Oil

    Air conditioner (optional) The optional air conditioner uses raw water for cooling. The seacock is located in the bilge. A strainer is located between the seacock and the cooling (raw water) pump. When the boat is put in the water the raw water pump must be primed by removing the hose from the pump outlet until the pump is full of water.
  • Page 15 Pro-Line boats equipped with oil injected outboard engines have on board oil tanks located in the port transom hatch or the bilge. Ensure that the tanks are well stocked with the recommended 2 - stroke oil - refer to your engine manual. It is imperative that the oil supply remain clean and uncontaminated by water or dirt.

  • Page 16: Electrical (Ac, Dc)

    Electrical Alternating Current Shore power is used for the operation of AC devices like your air conditioner, refrigerator (110v dockside), battery charger, and 110v outlets for other appliances. The panel is located in the cabin. If the reverse polarity light is on, unplug shore power, and do not use it until this potentially dangerous situation is corrected by a qualified technician.

  • Page 17: After Market Accessories

    Direct Current 12- volt direct current provides electrical power for all lighting, refrigerator (12-v at sea), pumps, electronics, and DC devices. A main breaker is located on the transom. Battery selector switches are on the transom for battery isolation, parallel operation and disconnect. Caution: To avoid possible alternator / battery damage on twin-engine installations, ensure that the optional dual battery switches are never left so both engines are connected together (never leave a switch on 'both').

  • Page 18: Trailering And Launching

    Trailering and Launching Consult your trailer manufacturer for specific information relating to your particular trailer. Pro- Line does not make trailers. Make sure the trailer you use is certified. The use of roller trailers is not recommended, bunk type trailers offer more uniform support. Consult your state authority for state regulations pertaining to trailering a boat.

  • Page 19: Hitch

    The trailer you choose should be a proper match for your boat with regard to capacity and hull design, consult your dealer when making your selection. The tow vehicle must have sufficient towing capacity for the combined load of boat, trailer and accessories. Check the certification label on the forward port (left) side of your trailer to ensure that it has adequate gross vehicle weight rating (GVWR) for the combined boat and trailer.

  • Page 20: Operation And Performance

    Operation and Performance Loading The capacity plate states the maximum persons and the maximum weight in pounds for persons, engine and gear that the boat will safely accommodate under normal conditions. These load capacity ratings are computed using USCG formulas. For operation in rough and adverse conditions reduce the boats load to permit safe operation.

  • Page 21: Starting

     Check for fumes in bilge, continue to ventilate if present.  Verify proper fuel selector valve position (dual tanks only). Starting Follow the information in your engine manual if it deviates from the following instructions. Before Starting Engine-  Ventilate all enclosed space, and run blower a minimum of four minutes. ...

  • Page 22: Trim

    information on trim tab adjustment. Torque induced list can also be corrected by shifting the load in your boat. Twin engines, when counter rotating, cancel the torque and no correction is required. Trim The power trim system allows the operator to raise and lower the drive unit or motor throughout an infinite number of settings between its upper and lower limits.

  • Page 23: Prop

    Prop If your Pro-Line was ordered with a factory installed engine it will have a propeller that has been performance tested to provide the best all-round performance for your engine /hull combination at sea level. In some situations, it may be desirable to re- prop your Pro-Line to enhance desired performance needs.
  • Page 24 Wax all gel coated surfaces a minimum of twice a year, more often if the boat is stored in the sun. If due to neglect, the surface takes on a dull appearance that is not restorable by waxing, hand buff with a rubbing compound such as Dupont No.
  • Page 25 Canvas Cleaning: Brush the canvas with a soft bristle brush and hose down at regular intervals to remove bird droppings, dust and dirt particles. It may be washed with a mild solution of natural soap in lukewarm water (less than 100 deg. F.) DO NOT USE DETERGENTS. For more stubborn stains soak the canvas in a solution of 4oz., non-chlorine bleach, 4oz.
  • Page 26 Winterization and Storage Pre-Storage Check List  Remove drain plug, keep bow high to drain any water accumulation.  Run a pint of RV antifreeze through bilge pump.  Drain all water from water systems and head, and pump an approved antifreeze through all pumps, valves, drains and lines.
  • Page 27 Appendix Boat Identification Information Owner:___________________________________________________________ Home Port:_______________________________________________________ Dealer:___________________________________________________________ Boat Name:_______________________________________________________ Registration No:___________________________________________________ Hull No:__________________________________________________________ Boat model:_______LOA:__________Beam:__________Draft:____________ Vertical Clearance:_______-Hull:_______-Deck:________-Interior:________ Warranty Registration Date:_________________________________________ Fuel Capacity Gal.:_________________________________________________ Ignition Key No:___________________________________________________ Radio Call Letters:_____________________Bat. ________________________ Engine Make & Model:________________________________HP:__________ Engine S/N:_______________________________________________________ Drive S/N:________________________________________________________ Prop: Dia:____________Pitch:___________P/N:________________________ Trailer Make &...
  • Page 28 Trouble Shooting Chart PROBLEM: POSSIBLE CAUSE: Poor speed or fuel economy: *Wrong propeller for load or conditions. *Trim is in to far. *Load is to far forward or to heavy, or boat has taken on water. *Marine growth on hull, Line or anchor dragging. *Fuel is stale or partially blocked, engine is worn, out of tune or under powered.
  • Page 29 Handling problems like: Porpoises *Trimmed out too far, damaged hull (rocker), trim tabs up, stern Heavy. Runs wet *Trimmed in too far, bow heavy, trim tabs down, overloaded for Conditions. Hard ride *Stern heavy, trimmed in too far, going to fast for conditions. Lists *Loaded to one side, trim tabs set wrong, trimmed to far in, fuel Tanks uneven.
  • Page 30 Nautical Terms Abeam: At 90 degrees to the center-line of the boat, exactly to either side of the boat. Abaft: A point on a boat that is aft of another. Aft: Toward the rear of the boat. Beam: The widest part of the boat. Bilge: The lower interior of the hull.
  • Page 32 Optional Air Conditioner Fresh Water System...
  • Page 33 Trim Tab Positioning in Reference to Switch Position...
