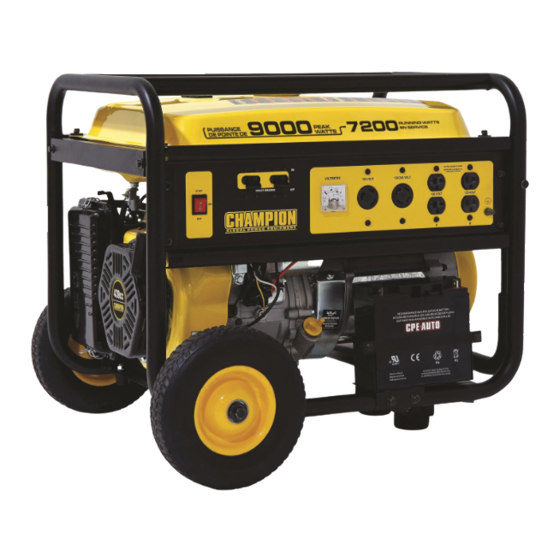

9000 peak watts / 7200 running watts

Advertisement

OWNER'S MANUAL & OPERATING INSTRUCTIONS
9000 Peak Watts / 7200 Running Watts
PORTABLE GENERATOR
2
yEAR
MODEL NUMBER
41552
LIMITED WARRANTY
10006 Santa Fe Springs Road
sAvE ThEsE INsTRuCTIONs
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1 (877) 338-0999
MADE IN CHINA
are included in this manual.
REV 41552-20110809
www.championpowerequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 41552 and is the answer not in the manual?

Questions and answers

Summary of Contents for Champion 41552

  • Page 1 PORTABLE GENERATOR yEAR MODEL NUMBER 41552 LIMITED WARRANTY 10006 Santa Fe Springs Road sAvE ThEsE INsTRuCTIONs Santa Fe Springs CA 90670 Important Safety Instructions USA / 1 (877) 338-0999 MADE IN CHINA are included in this manual. REV 41552-20110809 www.championpowerequipment.com...
  • Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
  • Page 3: Table Of Contents

    41552 9000 Peak Watts / 7200 Running Watts PORTABLE GENERATOR TABLE Of CONTENTs Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  • Page 4: Introduction

    ENGLISH INTROduCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator . CPE designs and builds accessories designed to help you get the most from generators to strict specifications . With proper use and your purchase .
  • Page 5: Manual Conventions

    . Please call our help line at 1 (877) 338-0999 situation which, if not avoided, could result in death or serious injury . CAuTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 41552-20110809...
  • Page 6: Safety Rules

    Keep hands and feet away from rotating parts . combustible materials . Tie up long hair and remove jewelry . Operate equipment with guards in place . DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught . REV 41552-20110809...
  • Page 7 A spark arrestor may be required . The operator should contact local fire agencies for laws or – Electrical output is lost – Equipment sparks, smokes or emits flames regulations relating to fire prevention requirements . – Equipment vibrates excessively REV 41552-20110809...
  • Page 8: Controls And Features

    Battery – Used to start the engine . Air Cleaner – Protects the engine by filtering dust and debris from the intake air . Power Panel – See “Power Panel” Recoil Starter – Used to start the engine . REV 41552-20110809...
  • Page 9: Power Panel

    . 120/240V / 30A Twist-Lock – protected by a 30 Amp circuit breaker on each 120 Volt leg of the Parts Included Your 41552 Gasoline Powered Generator ships with the following parts: Wheel Kit – 10” Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  • Page 10: Assembly

    . Damage to the generator as a result of failure to follow these instructions will void your warranty . NOTE The recommended oil type is 10W-30 4-cycle automotive oil . Please see “Specifications” section for more information on oil types . REV 41552-20110809...
  • Page 11: Add Fuel

    (12 AWG minimum) copper wire between the generator ground terminal and a copper rod driven into the ground . We strongly recommend that you consult with a qualified electrician to ensure compliance with local electrical codes . REV 41552-20110809...
  • Page 12: Operation

    2. Obtain an Uninterruptible Power Supply (UPS) device. Most UPS devices come with a rechargeable battery between the electronic equipment and power supply source . The device buffers the voltage and protects against virtually all short-duration voltage fluctuations . REV 41552-20110809...
  • Page 13: Connecting Electrical Loads

    . When connecting loads the 120V Twist-Lock receptacle and a 120V Duplex receptacle simultaneously, Duplex B (furthest to the right of the Power Panel) must be used . See Power Panel diagram for clarification . REV 41552-20110809...
  • Page 14: Do Not Overload Generator

    Job Site Belt Sander 3” 1000 1500 Bench Grinder 6” 1500 Circular Saw 1500 1500 Compressor 1 1/2 HP 2500 2500 Edge Trimmer Hand Drill 1/2” 1000 1000 Lawn Mower 1200 1800 Paint Sprayer 1200 Table Saw 2000 2000 REV 41552-20110809...
  • Page 15: Maintenance And Storage

    7 . Use the spark plug tool to fi rmly install the plug . 5 . Add 1 . 1 6 qt (1 . 1 L) of oil and replace oil fi ll 8 . Attach the spark plug wire to the plug . cap/dipstick . REV 41552-20110809...
  • Page 16: Air Filter

    Contact our help line at 1 (877) 338-0999 to locate the 4 . Saturate in clean engine oil . nearest Champion Power Equipment certified service 5 . Squeeze in a clean, absorbent cloth to remove all dealer for your generator or engine maintenance needs .
  • Page 17: Storage

    – When storing the generator for extended periods of time make sure that the Ignition Switch and the Fuel Valve are switched to the the OFF position and the battery leads have been disconnected from the battery . REV 41552-20110809...
  • Page 18: Specifications

    10% by volume . Use 4-Cycle automotive oil . Oil capacity is 1 . 1 6 qt (1 . 1 L) . Please reference the following chart for recommended oil types for use in the generator . REV 41552-20110809...
  • Page 19: Wiring Diagram

    41552 ENGLISH sPECIfICATIONs Wiring diagram REV 41552-20110809...
  • Page 20: Parts Diagram

    41552 ENGLISH sPECIfICATIONs Parts diagram REV 41552-20110809...
  • Page 21: Parts List

    ST02FD-1152010-05 Grounding line 110 BG01-00000000 RECTIFIER ST182FD-1742003-UC Motor Mount 111 GB818 M5x38 Screw M5x38 GB896 8 Circlip ø8 112 ST05FD-05215006 Plug 27 .001 113 ST05FD-05205009(CSA) Control box GB896 6 Circlip ø6 114 ST188FD-1732001 Rubber plate,Muffler ST05FD-03161202 Handle underlay REV 41552-20110809...
  • Page 22: Troubleshooting

    Management” Faulty cords or device Check for damaged, bare or frayed wires . Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1 (877) 338-0999 tech@championpowerequipment .com REV 41552-20110809...
  • Page 23: Warranty

    . Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc .
  • Page 24 Champion Power Equipment, Inc (CPE), Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment Canada (EC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2011 small off-road engine.
  • Page 25 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 26 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
