OWNER'S MANUAL & OPERATING INSTRUCTIONS
7800 Starting Watts / 6500 Rated Watts
Electric start

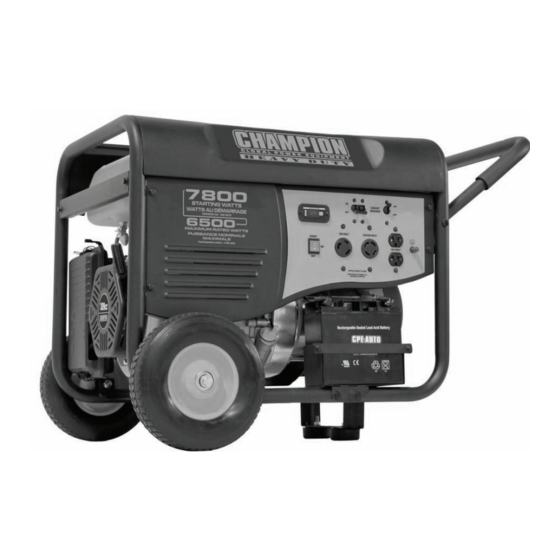

PORTABLE GENERATOR
MODEL NUMBER
41351
10006 Santa Fe Springs Road
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 41351-20130318
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion 41351
Summary of Contents for Champion 41351
-
Page 1: Electric Start
7800 Starting Watts / 6500 Rated Watts Electric start PORTABLE GENERATOR MODEL NUMBER 41351 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 41351-20130318 www.championpowerequipment.com... - Page 2 AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods.
-
Page 3: Table Of Contents
41351 7800 Starting Watts / 6500 Rated Watts Electric Start PORTABLE GENERATOR TABLE Of CONTENTS Maintenance Schedule ....Introduction ...... -
Page 4: Introduction
ENGLISH INTRODUCTION Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment generator. CPE designs and builds accessories designed to help you get the most from your generators to strict specifications. With proper use and purchase. -
Page 5: Manual Conventions
Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. REV 41351-20130318... -
Page 6: Safety Rules
Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live. Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency. REV 41351-20130318... - Page 7 – Electrical output is lost – Equipment sparks, smokes or emits flames A spark arrestor may be required. The operator – Equipment vibrates excessively should contact local fire agencies for laws or regulations relating to fire prevention requirements. REV 41351-20130318...
-
Page 8: Controls And Features
Battery – Used to start the engine. Air Cleaner – Protects the engine by filtering dust and debris from the intake air. Power Panel – See “Power Panel”. Recoil Starter – Used to start the engine. REV 41351-20130318... -
Page 9: Power Panel
Intelligauge™ – Tri-mode digital display for (NEMA L14-30R) – May be used to supply running hours, voltage and hertz. electrical power for the operation of 120 and/or 240 Volt AC, 30 Amp, single phase 60 Hz electrical loads. REV 41351-20130318... -
Page 10: Parts Included
41351 ENGLISH CONTROLS AND fEATURES Parts Included Your 41351 Gasoline Powered Generator ships with the following parts: Wheel Kit – 10 in. Wheel ...... -
Page 11: Assembly
2. Slide the wheel bolt (M10x120) through the washer, sleeve and wheel. 3. Slide the bolt through the mount point on the frame. 4. Fasten securely with the M10 nut. 5. Repeat steps 2-4 to attach the second wheel. REV 41351-20130318... -
Page 12: Add Engine Oil
2. Remove oil fill cap/dipstick to add oil. 3. Add up to 1.16 qt. (1.1 L) of oil and replace oil fill cap/dipstick. DO NOT OVERFILL. 4. Check engine oil level daily and add as needed. REV 41351-20130318... -
Page 13: Add Fuel
DO NOT light cigarettes or smoke when filling the electrician to ensure compliance with local electrical codes. fuel tank. WARNING Pouring fuel too fast through the fuel screen may result in blow back of fuel at the operator while filling. REV 41351-20130318... -
Page 14: Operation
During operation the muffler and exhaust fumes produced will become hot. If adequate cooling and breathing space are not supplied, or if the generator is blocked or contained, temperatures can become extremely heated and may lead to fire. REV 41351-20130318... -
Page 15: Starting The Engine
The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold. REV 41351-20130318... -
Page 16: Stopping The Engine
4. Allow the engine to stabilize. 5. Plug in and turn on the next item. 6. Allow the engine to stabilize. 7. Repeat steps 5-6 for each additional item. NOTE Never exceed the specified capacity when adding loads to the generator. REV 41351-20130318... -
Page 17: Maintenance And Storage
DO NOT OVERFILL. 4. Saturate in clean engine oil. 5. Squeeze in a clean, absorbent cloth to remove all excess oil. 6. Place the filter in the assembly. 7. Reattach the air filter cover and snap in place. REV 41351-20130318... -
Page 18: Spark Arrester
Contact our help line at 1-877-338-0999 to locate the 3. Remove the spark arrester screen. nearest Champion Power Equipment certified service 4. Carefully remove the carbon deposits from the spark dealer for your generator or engine maintenance needs. arrester screen with a wire brush. -
Page 19: Storage
2 amps. Follow the instructions included with the battery charger. The battery should be fully charged at least once per month. NOTE A Float Charger will maintain the battery condition over long storage periods. REV 41351-20130318... -
Page 20: Specifications
....6.5 gallons (25 L) Your Champion Power Equipment product is designed – Gross Weight ... . . -
Page 21: Wiring Diagram
41351 ENGLISH SPECIfICATIONS Wiring Diagram REV 41351-20130318... -
Page 22: Parts Diagram
41351 ENGLISH SPECIfICATIONS Parts Diagram REV 41351-20130318... -
Page 23: Parts List
Over Voltage Protector 152.190005.01 Rubber,Fore-Cover 1.823.0514 Screw M5×14 46.601 Engine 5.1800.000 Rectifier 5.1900.029 Grounding Line Bolt And Washer Assembly 1.9074.1.0538.2 1.5789.0612.1 Flange Bolt M6×12 M5×38 1.862.06 Lock Washer Ø6 122.210003.00 Plug 152.201200.00 Motor Mount 152.210002.10 Control Box 1.894.1.10 Circlip Ø10 REV 41351-20130318... -
Page 24: Engine Parts Diagram
41351 ENGLISH SPECIfICATIONS Engine Parts Diagram REV 41351-20130318... -
Page 25: Engine Parts List
45.110007.00 Spring, Governor 46.010100.00 Cylinder Head 46.080300.20 Air Guide, Upper 2.01.005 Stud.Bolt (M8×49) 46.131017.20 Standard Main Jet 2.15.002 (F6RTC) Spark Plug (F6RTC) 46.091000.04 Air Cleaner Assembly 2.08.014 Flange Bolt M10×80 46.061000.00 Recoil Assembly 46.020002.00 Gasket, Cylinder Head Cover REV 41351-20130318... -
Page 26: Troubleshooting
Review load and adjust. See “Power Management” Faulty cords or device Check for damaged, bare or frayed wires. Replace defective device for further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment.com REV 41351-20130318... -
Page 27: Warranty
Warranty Qualifications Other Exclusions Champion Power Equipment (CPE) will register this This warranty excludes: warranty upon receipt of your Warranty Registration Card – Cosmetic defects such as paint, decals, etc. - Page 28 Champion Power Equipment, Inc (CPE), Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with Environment Canada (EC) emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: CPE is pleased to explain the Emission Control Systems Warranty on your 2013 small off-road engine.
- Page 29 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. Emission Control System Warranty (ECS Warranty): 1. APPLICABILITY: The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 30 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
