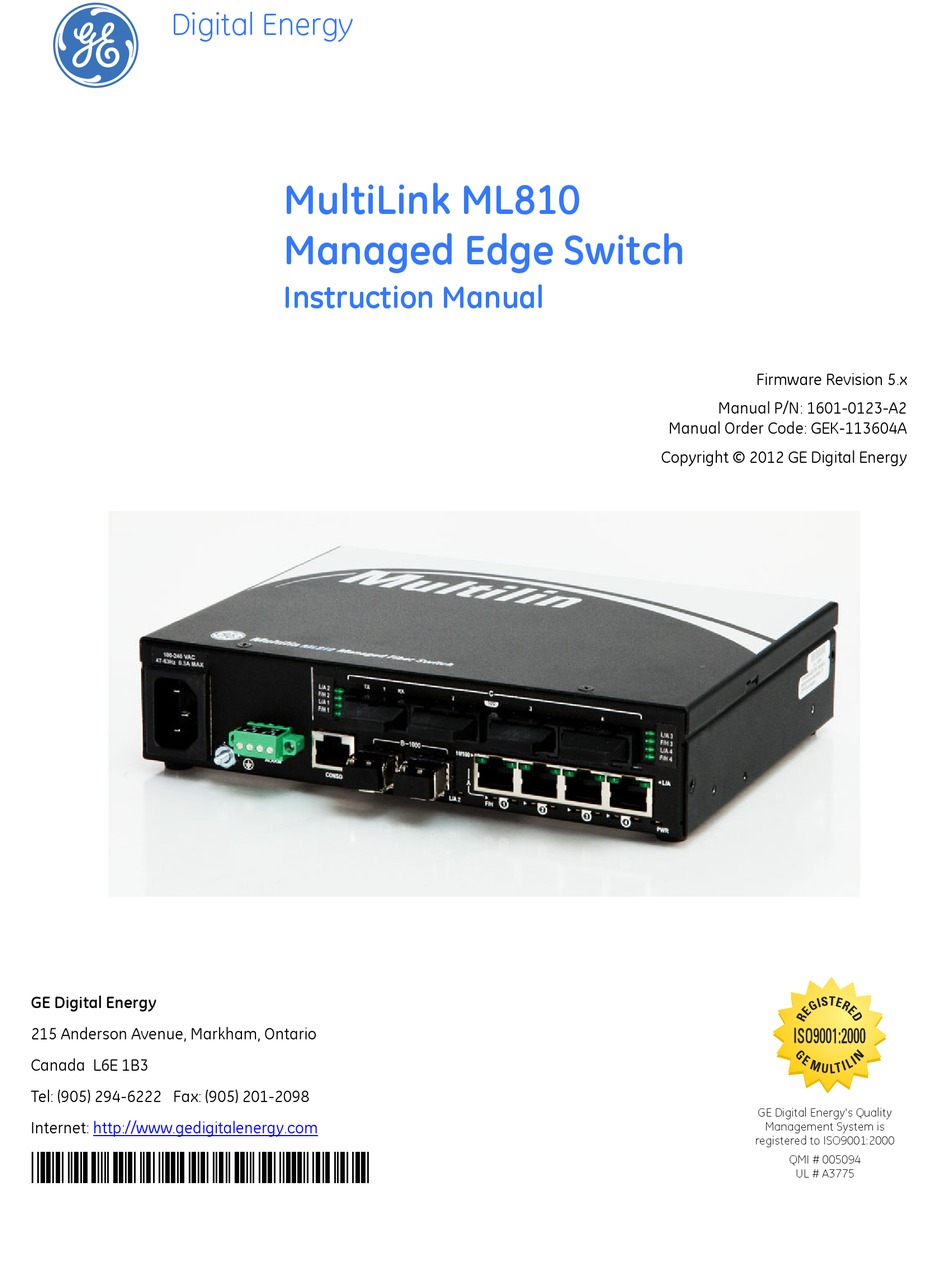

Page 1: Instruction Manual
Managed Edge Switch Instruction Manual Firmware Revision 5.x Manual P/N: 1601-0123-A2 Manual Order Code: GEK-113604A Copyright © 2012 GE Digital Energy GE Digital Energy I I SO9001:2000 215 Anderson Avenue, Markham, Ontario Canada L6E 1B3 Tel: (905) 294-6222 Fax: (905) 201-2098...
Page 2 The contents of this manual are the property of GE Digital Energy Inc. This documentation is furnished on license and may not be reproduced in whole or in part without the permission of GE Digital Energy. The content of this manual is for informational use only and is subject to change without notice.
Page 3 This product cannot be disposed of as unsorted municipal waste in the European union. For proper recycling return this product to your supplier or a designated collection point. For more information go to www.recyclethis.info .
Page 5: Table Of Contents
ML810 ........3-6 OUNTING IMENSIONS FOR WITH METAL BRACKETS POWERING THE MULTILINK ML810 MANAGED EDGE SWITCH ....3-10 ALARM CONTACTS FOR MONITORING INTERNAL POWER, AND SOFTWARE TRAPS ............3-11 CONNECTING THE CONSOLE TERMINAL TO MULTILINK ML810 .... 3-12 RJ45 C ..........3-12...
Page 6 THROUGH THE COMMAND LINE INTERFACE ....6-3 ..........................6-3 OMMANDS MAC A ....................6-4 LLOWING DDRESSES ........................6-8 ECURITY .......................6-10 UTHORIZED ANAGERS CONFIGURING PORT SECURITY WITH ENERVISTA SOFTWARE ....6-12 ..........................6-12 OMMANDS ............................6-15 .......................6-16 UTHORIZED ANAGERS TOC–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 7 THROUGH THE COMMAND LINE INTERFACE ....10-5 ..........................10-5 ESCRIPTION ..........................10-5 OMMANDS CONFIGURING PORT VLANS WITH ENERVISTA SECURE WEB MANAGEMENT SOFTWARE ......10-7 ..........................10-7 ESCRIPTION CONFIGURING TAG VLANS THROUGH THE COMMAND LINE INTERFACE ....10-12 ..........................10-12 ESCRIPTION MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL TOC–3...
Page 8 CONFIGURING QOS THROUGH THE COMMAND LINE INTERFACE ..14-4 ..........................14-4 OMMANDS ...........................14-6 XAMPLE CONFIGURING QOS WITH ENERVISTA SECURE WEB MANAGEMENT SOFTWARE ......14-9 ..........................14-9 ESCRIPTION 15: IGMP OVERVIEW ......................15-1 ..........................15-1 ESCRIPTION TOC–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 9 ANAGEMENT SOFTWARE PROMPT ........................17-10 ................17-10 HANGING THE OMMAND ROMPT SYSTEM EVENTS ....................17-11 ..........................17-11 ESCRIPTION .................17-11 OMMAND NTERFACE XAMPLE ......................17-12 ISTA XAMPLE COMMAND REFERENCE ..................17-14 ........................17-14 OMMANDS ....................17-16 ONFIGURATION COMMANDS MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL TOC–5...
Page 10 EQUIREMENTS FOR POWERED UNITS OPERATION ......................B-7 TROUBLESHOOTING .................... B-8 C: INTERNAL DC SPECIFICATIONS - FOR MULTILINK ML810 EDGE SWITCH ....... C-1 DUAL-SOURCE MULTILINK ML810, WITH DC DUAL-SOURCE OPTION ....... C-3 POWER INPUT DUAL-SOURCE OPTION, THEORY OF OPERATION ........C-4 OPTION FEATURES AND BENEFITS OF THE DUAL-SOURCE DESIGN .....
Page 11: Technical Specifications
IEEE 802.1x: ............Port based Network access control IEEE 802.3af: ............Power over Ethernet MAXIMUM 10 MBPS ETHERNET SEGMENT LENGTHS Unshielded twisted pair: ......100 m (328 ft) Shielded twisted pair:........150 m (492 ft) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 1–1...
Page 12 Enclosure: ............High strength Cold rolled steel Dimensions: ...........8.0 in H x 1.75 in W x 6.0 in D (in vertical mounting position) ............20.3 cm H x 4.4 cm W x 15.2 cm D 1–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 13 Level 3 Damped magnetic Immunity IEC61000-4-10 Level 3 0,40,70% dips, 300cycle Voltage Dip & interruption IEC61000-4-11 interrupts Ringwave Surge IEC61000-4-12 Level 4 Conducted RF Immunity (0 to IEC61000-4-16 Level 3 150 kHz) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 1–3...
Page 14 IEC 61850 EMC and Operating Conditions Class C for Power Substations NEMA TS-2 and TEES for DC-powered and PoE-powered traffic control equipment WARRANTY: Three years, per UL 60950 temperature rating. Made in USA 1–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 15: Ordering Information
2x 100Mbit LC mm + 2x 100Mbit sm 20km Fiber 2x 10/100 RJ45 + 1x 100Mbit LC mm+ 1x 100Mbit sm 20km Fiber 2x 10FL + 2x 100FX ST (2km) 4x 10FL Coating None Harsh Chemical Environment Conformal Coating MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 1–5...
Page 16 SPECIFICATIONS CHAPTER 1: SPECIFICATIONS 1–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 17: Inspecting The Package And Product
Remove the items from the shipping container. Be sure to keep the shipping container should you need to re-ship the unit at a later date. In the event there are items missing or damaged, contact GE Digital Energy. If the unit needs to be returned, please use the original shipping container if possible.
Page 18: Product Description
Designed for use in industrial applications such as factory floors and control cabinets, industrial video surveillance systems with PoE, power utility substations, tariffed carrier field facilities, or transportation and oil and gas, the rugged Multilink ML810 handles stressful workloads (mixes of bursty data traffic and priority streaming traffic) as well as harsh environmental conditions.
Page 19: Packet Prioritization, 802.1P Qos
Quality of Service means providing consistent predictable data delivery to users from datagram paths that go all across a network. As a LAN device, the Multilink ML810 can do its part to prevent any QOS degradation while it is handling Ethernet traffic through its ports and buffers.
Page 20: Features And Benefits
• Managed switching for high performance Ethernet LANs Multilink ML810 Switches provide unicast non-blocking (all ports can run at full speed at once) performance with standard Managed Network Software. They are typically used in LAN traffic centers with up to 8 100Mb +2 Gigabit ports for backbone connections, where managed network services are desired.
Page 21 RSTP-2004 provides reliable fast recovery from a fault in a redundant LAN, which may include Multilink switches and routers as well as other vendors industry-standard- RSTP products. Redundant topologies may include rings, dual-rings, and complex meshes. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 2–5...
Page 22: Applications
CHAPTER 2: INTRODUCTION Applications Multilink ML810 Edge Switches offer high performance, modularity and availability. They provide the flexibility of 100Mbps fiber and copper ports as well as single or dual Gigabit (1000Mb) ports, with industry-standard LAN management software. Multilink ML810...
Page 23 The different locations can be easily connected together with the Fiber ports supported by the Multilink ML810 Switch. A main NT-server in a secure area protected from earthquake or fire hazards can be connected to the full duplex Gigabit Fiber port.
Page 24 INTRODUCTION CHAPTER 2: INTRODUCTION The Multilink ML810 Managed Edge Switch equipped with a mix of copper and fiber ports provides an economical and seamless solution to many requirements. The user- configurable Multilink ML810 provides an extra boost to the network requirements by providing copper/fiber media along with the higher bandwidth support of 10/100 and 1000Mb.
Page 25 • If the equipment is mounted in an enclosed or multiple rack assembly verify that the equipment has a reliable and uncompromised earthing path. This section describes installation of the Multilink ML810 Switches, as well as connection of the various Ethernet media types.
Page 26: Locating Multilink Ml810 Switches
For DC power input data, see Appendix B. For Dual Source, see Appendix C. The rugged metal case of the Multilink ML810 will normally protect it from accidental damage in a lab or workplace setting. Maintain an open view of the front to visually monitor the status LEDs.
Page 27: Connecting Ethernet Media
3.2.1 Connecting Twisted Pair (CAT3, CAT5, UTP or STP) The RJ-45 ports of the Multilink ML810 can be connected to the following two media types: 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. In either case, the maximum distance for unshielded twisted pair cabling is 100 meters (328 ft).
Page 28: Connecting Twisted Pair (Cat5E Or Better, Utp Or Stp)
3.2.2 Connecting Twisted Pair (CAT5e or better, UTP or STP) The RJ-45 Gigabit ports of the Multilink ML810 can be connected to the media types, 1000BASE-T or CAT 5E or better 100-ohm UTP or shielded twisted pair (STP) balanced cable.
Page 29: Connecting Fiber Optic Cable To Sfp Transceivers
Reconfigure or reboot both of the devices if required. If connected properly, you can check via (MultiLink ML810 Managed Edge Switch) firmware for verifying the validity of SFP Gigabit ports. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 30: Din-Rail Mounting The Multilink Ml810
CHAPTER 3: INSTALLATION DIN-Rail Mounting the Multilink ML810 The Multilink ML810 is designed for use in a “factory floor” industrial environment. It is available with an optional DIN-Rail bracket to mount it securely in a metal factory floor enclosure, maintained vertically for proper convection cooling of the unit. The Multilink ML810 requires one DIN-Rail bracket for secure mounting.
Page 31 Since the ML810 has special internal thermal techniques to move the heat generated by the electronic components inside into the case, the case may be quite warm to the touch during normal operation. Figure 3-1: Panel / Wall Mounting Position 1: MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 3–7...
Page 32 The unit is mounted using the brackets as shown in the illustration above. The spacing for the mounting screws into the supporting wall or panel is a rectangle 4.00 x 8.58 inches (10.20 x 21.79 cm) center-to-center. Figure 3-2: Panel / Wall Mounting position 2 3–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 33 2.81 x 8.58 inches (7.14 x 21.79 cm) center-to-center. Figure 3-3: Typical Panel / Wall mounting of the ML810 Switch (position 2 shown) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 3–9...
Page 34: Powering The Multilink Ml810 Managed Edge Switch
(note: 125 and 250VDC power input made by a fixed, IEC-320 male, cord exiting the ML810 unit) Fig 3.4c AC power input Power input connection made with IEC-320 type, male recessed 3–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 35: Alarm Contacts For Monitoring Internal Power, And Software Traps
INSTALLATION Alarm Contacts for monitoring internal power, and Software Traps The Alarm Contacts feature, standard on Multilink ML810’s, provides two Form C Normally Closed (NC) contacts to which the user can attach two sets of status monitoring wires at the green terminal block.
Page 36: Connecting The Console Terminal To Multilink Ml810
CHAPTER 3: INSTALLATION Connecting the Console Terminal to Multilink ML810 Use a (RJ45) “null modem” cable to connect the Multilink ML810 Console Port (the RJ45 Console port on the ML810 Switch) to your PC, so that your PC becomes the ML810 Console Terminal.
Page 37: Switching Functionality
All ports can communicate to all other ports in a Multilink ML810, but local traffic on a port will not consume any of the bandwidth on any other port.
Page 38 CHAPTER 4: OPERATION Address Learning All Multilink ML810 units have address table capacities of 8K node addresses suitable for use in larger networks. They are self-learning, so as nodes are added, removed or moved from one segment to another, the ML810 Switch automatically keeps up with node locations.
Page 39: Auto-Cross(Mdix) And Auto-Negotiation, For Rj-45 Ports
RJ-45 port separately. For detail information See Section 2.3 of this manual for information to access the “6K-MNS Software user guide” One frequently-used application for the Managed Multilink ML810 Switch copper ports is to connect one of them using a fiber media converter to another Switch in the network backbone, or to some other remote 100Mb device.
Page 40 When operating in 100Mb half-duplex mode, cable distances and hop-counts may be limited within that collision domain. The Path Delay Value (PDV) bit-times must account for all devices and cable lengths within that domain. For Multilink ML810 Fast Ethernet switched ports operating at 100Mb half-duplex, the bit time delay is 50BT.
Page 41: Flow-Control, Ieee 802.3X Standard
OPERATION Flow-control, IEEE 802.3x standard Multilink ML810 Switches incorporate a flow-control mechanism for Full-Duplex mode. The purpose of flow-control is to reduce the risk of data loss if a long burst of activity causes the switch to save frames until its buffer memory is full. This is most likely to occur when data is moving from a 100Mb port to a 10 Mb port and the 10Mb port is unable to keep up.
Page 42: Power Budget Calculations For Ml810 Modules With Fiber Media
• The worst-case OPB of the fiber link must be greater than the fiber cable’s passive Attenuation. (Attenuation = Cable loss + LED aging loss + Insertion loss + safety factor). 4–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 43: Ml810 Switch Port Modules
OPERATION ML810 Switch Port Modules An important feature of the Multilink ML810 is the use of Port Modules for flexible mixed- media connectivity to RJ-45 copper and various fiber media. The first four ports (1,2,3 & 4) of the Multilink ML810 Switches are fixed RJ-45 copper ports with dual-speed 10/100Mbps auto-negotiating capability.
Page 44 2= ON (Full Duplex), OFF (Half Duplex) SC (Fiber) 1= ON (Link), BLINKING (Activity) 2= ON (Full Duplex), OFF (Half Duplex) ST (Fiber) 1= ON (Link), BLINKING (Activity) 2= ON (Full Duplex), OFF (Half Duplex) 4–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 45: 10/100M Brj45 (Slot C)
LK LED to provide valid indications of operating conditions on that port. Using the MultiLink ML810 Managed Edge Switch firmware, the user may disable auto- negotiation and fix the desired operation of each RJ-45 port. The user may select 10Mb or 100Mb speed and full- or half-duplex mode per-port as per user requirements.
Page 46: Ml810 (E4) X Multimode Lc (Slot C)
The ML810 (E4), 4-port Fiber module provides four 100Mb Multimode LC Fiber ports. The ML810 (E4), fiber ports are Small Form Factor (SFF) LC Multimode connectors used primarily in 100Mbps fiber-to-the-desktop links. When installed in a Multilink ML810 Series Switch, it supports fiber optic cable distances up to the IEEE-standard 100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half-duplex.
Page 47: Multimode Mtrj (Slot C)
The RJ-45 connector is shielded to minimize emissions and will allow both unshielded twisted pair (UTP) and shielded twisted pair (STP) cable connections. When installed in a Multilink ML810 Series Managed Switch, the copper ports support the standard distance of 100m on each port.
Page 48: Xrj45 (Slot C)
ST-type “twist-lock” fiber optic connection. The 10Mb ST-fiber ports allow the user to connect their legacy 10Mb network to the Multilink ML810 Series switch. It supports distances according to the 10Base-FL standard (up to 2km for Multimode fiber) 4–12...
Page 49: Ml810 (E5), Ml810 (E7) (Slot C)
The RJ-45 connector is shielded to minimize emissions and will allow both unshielded twisted pair (UTP) and shielded twisted pair (STP) cable connections. When installed in a Multilink ML810 Series Managed Switch, the copper ports support the standard distance of 100m on each port.
Page 50: Ml810 (C7) (Slot C)
The ML810 (EK) copper ports support Ethernet twisted pair segments of any standard length. It is equipped with a two-port RJ-45 connector, and offers 10/100 full / half-duplex auto-negotiating capability on each port. The RJ-45 connector is shielded to minimize 4–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 51: Xrj45 (Slot C)
OPERATION emissions and will allow both unshielded twisted pair (UTP) and shielded twisted pair (STP) cable connections. When installed in a Multilink ML810 Series Managed Switch, the copper ports support the standard distance of 100m on each port. 4.5.15 ML810 (CD), 1 x LC Multimode / 3 x RJ45 (Slot C) The ML810 (CD), 4-port Fiber/Copper module provides one 100Mb Multimode LC Fiber port, supporting distances up to 2km and three 10/100Mb switched RJ45 ports.
Page 52: P O E Rj45 (Slot C)
The PoE ports in Magnum 6K’s with 48VDC power input act as a pass-through, so the 48VDC power input source to the Multilink ML810 must be strong enough to provide power to the 6K switch and to all 4-RJ45 ports with PD devices connected (up to 15 watts per PoE port).
Page 53: Gigabit Rj45 (Slot B)
B. There are two LEDs provided for each Gigabit port. Each Copper Gigabit port has LEDs that indicate L/A (Link/Activity), 10, 100 and 1000Mbps speed (set to AUTO by default). MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 4–17...
Page 54: Troubleshooting
However, if you are unsure of the procedures described in this section or if the Multilink ML810 Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GE Customer Support.
Page 55 A record of changes that have been made to your network configuration prior to the occurrence of the problem. Any changes to system administration procedures should all be noted in this record. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 4–19...
Page 56 OPERATION CHAPTER 4: OPERATION 4–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 57: Ip Address And System Information
IP Address: 3.94.247.41 Subnet Mask: 255.255.252.0 Default Gateway: 3.94.244.1 ML810> To verify the IP address using the EnerVista Secure Web Management software,  Select the Administration > System menu item to view. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–1...
Page 58  Edit the IP address information. Besides manually assigning IP addresses, there are other means to assign an IP address automatically. The two most common procedures are using DHCP and bootp. 5–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 59: Importance Of An Ip Address
By default, the switch is configured for auto IP configuration. DHCP/bootp/manual can be enabled with the command line interface by using the command with the set bootmode following syntax: set bootmode=<dhcp|bootp|manual|auto> bootimg=<enable|disable> bootcfg=<enable|disable> MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–3...
Page 60  Select the Administration > System menu item.  Click Edit.  Alternatively, select items in the Administration > Set menu to individually modify the boot mode, date and time, log size, etc. 5–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 61: Using Telnet
The following example changes the telnet access. In this case, the enable command was repeated without any effect to the switch. ML810# configure access ML810(access)## telnet enable Access to Telnet already enabled ML810(access)## exit ML810# MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–5...
Page 62 It may also be useful for a person to remotely terminate a telnet session. To facilitate this, the ML800 supports the following two commands: show session kill session id=<session> 5–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 63 As well, if a outbound telnet session is started from the switch (through a telnet window) then other windows will not be able to execute a command until the telnet session is completed. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–7...
Page 64: Setting Parameters
System Description: 12 Port Modular Ethernet Switch System Contact: multilin.tech@ge.com System Location: Markham, Ontario System ObjectId: 1.3.6.1.4.1.13248.12.7 ML810# The following example lists system parameters using the command. show sysconfig Most parameters here can be changed. 5–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 65: Date And Time
System UpTime: 7 Days 12 Hours 30 Mins 46 Secs ML810# System variables can be changed. Below is a list of system variables which GE recommends changing. • : Using a unique name helps you to identify individual devices in a System Name network.
Page 66: Network Time
SNTP variables. Make sure to setup the synchronization frequency as well as enable SNTP. The syntax for the above commands is shown below. setsntp server = <ipaddress> timeout = <1-10> retry = <1-3> sync [hour=<0-24>] [min=<0-59>] (default = 24 hours) sntp [enable|disable] 5–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 67 The edit button allows editing of the SNTP parameters as shown below. Adding or deleting SNTP servers is accomplished by using the add and delete buttons. Clicking the edit button allows the specific SNTP parameter settings to be modified. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–11...
Page 68 You can use the IP address of these servers; however, please ensure the server can be reached by using the command. ping command can also be launched from the EnerVista software. ping 5–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 69 Internet. Ensure the IP parameters are configured for the switch and the device can be pinged by the switch. Once the server is added, it is listed with the other SNTP servers. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–13...
Page 70: System Configuration
One useful capability provided in Multilink software is export of the CLI commands used to configure the switch. To do this, use Config Upload/Download. 5–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 71 # subject to the limitations of the GE MultiLink software End User # License Agreement (EULA). Incorrect usage may result in # network shutdown. GE Digital Energy, Inc. is not liable for incidental or # consequential damages due to improper use.
Page 72 CRC computed and stored in the file would not be matched. Should you want to edit, edit the System portion of the file only. GE Digital Energy, Inc. recommends editing the “script” file (see below) File names cannot have special characters such as *#!@$^&* space and control...
Page 73: Displaying Configuration
802.1x Settings igmp IGMP Settings smtp SMTP settings If the module name is not specified the whole configuration is displayed. ML810# show config [HARDWARE] type= ML810 slotB=8 Port TP Module ########################################################## MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–17...
Page 74 # System Manager - This area configures System related information. ########################################################## [SYSTEM] ***Edit below this line only**** system_name=Main system_contact=someone@joe.com system_location= Markham, Ontario boot_mode=manual system_ip=192.168.1.15 system_subnet=0.0.0.0 system_gateway=192.168.1.11 idle_timeout=10 telnet_access=enable snmp_access=enable web_access=enable --more— FIGURE 5–2: ’show config’ command output 5–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 75 # Network Management - This area configures the SNMPv3 agent. ########################################################## [SNMP] engineid=LE_v3Engine defreadcomm=public defwritecomm=private deftrapcomm=public authtrap=disable com2sec_count=0 group_count=0 view_count=1 view1_name=all view1_type=included view1_subtree=.1 view1_mask=ff --more— FIGURE 5–3: Displaying specific modules using the ‘show config’ command MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–19...
Page 76: Saving Configuration
Without a reboot, the ML800 used the previous configuration. When reboot is selected, the user is prompted as follows: Reboot? ['Y' or 'N'] Select “Y”. The ML800 will prompt: Save Current Configuration? Select “N”. 5–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 77 With release 1.7 and higher, the configuration can be saved in the older format (binary Note object) or in a new format as an ASCII file. The new format is recommended by GE Digital Energy. Use the old format only if there are multiple MultiLink switches on the network running different versions of software.
Page 78: Script File
The script file does not have a check sum at the end and is used for configuring a large number of switches easily. As with any configuration file that is uploaded, GE Digital Energy, Inc. recommends that modifications of this file and the commands should be verified by the user in a test environment prior to use in a "live"...
Page 79: Saving And Loading - Enervista Software
In the above example, note that all the commands are CLI commands. This script provides an insight into the configuration of GE MultiLink switches settings. GE Digital Energy, Inc. recommends that modifications of this file and the commands should be verified by the User in a test environment prior to use in a "live"...
Page 80 Log Upload - Save the log file on the ftp/tftp server To save any changes,  Click on the save ( ) icon. The software will ask again if the changes need to be saved or ignored. 5–24 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 81: Host Names
Instead of typing in IP addresses of commonly reached hosts, the ML800 allows hosts to be created with the necessary host names, IP addresses, user names, and passwords.  Use the Configuration > Access > Host menu to create host entries as shown below. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–25...
Page 82 IP ADDRESSING CHAPTER 5: IP ADDRESSING  To add a host, click the Add button.  Fill in all the fields below to create the necessary host entries. 5–26 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 83: Erasing Configuration
Administration tab by selecting kill config. User also has the option to save one module from defaulting back to factory defaults by Note checking the module box before issuing kill Config command. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–27...
Page 84 When the OK button is pressed the Switch will issue the following warning messages; and reboot the switch for it to revert back to the factory default settings with the exceptions of modules opted not to be defaulted. 5–28 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 85 The kill Config command will default all the Switch settings back to factory defaults, while the kill config save=module will default all with the exception of module selected. Available modules are: system, user, acces, port, vlan, ps, mirror, lacp, slp, and igmp. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–29...
Page 86 Do you want to erase the configuration? ['Y' or 'N'] Y Successfully erased configuration...Please reboot. Once the configuration is erased, please reboot the switch for the changes to take effect. 5–30 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 87: Ipv6
CHAPTER 5: IP ADDRESSING IP ADDRESSING IPv6 This section explains how to access the GE MultiLink switches using IPv6 instead of IPv4 addressing. IPv6 provides a much larger address space and its use is often required. Assumptions It is assumed here that the user is familiar with IP addressing schemes and has other supplemental material on IPv6, configuration, routing, setup and other items related to IPv6.
Page 88: Ipv6 Addressing
Earth. The optimistic estimate would allow for 3,911,873,538,269,506,102 addresses for each square meter of the surface Earth. Approximately fifteen percent of the address space is initially allocated. The remaining 85% is reserved for future use. 5–32 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 89: Configuring Ipv6
FIGURE 5–5: Configuring IPv6 In addition to the commands listed above, the commands which support IPv6 addressing Syntax ftp <IPv6 address> - ftp to an IPv6 station Example – ftp fe80::220:6ff:fe25:ed80 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 5–33...
Page 90: List Of Commands In This Chapter
Syntax ping6 <IPv6 address> - pings an IPv6 station Syntax show ipv6 - displays the IPv6 information Syntax ftp <IPv6 address> - ftp to an IPv6 station Syntax telnet <IPv6 address> - telnet to an IPv6 station. 5–34 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 91: Securing Access
Securing Access 6.1.1 Description This section explains how the access to the MultiLink ML810 Managed Edge Switch can be secured. Further security considerations are also covered such as securing access by IP address or MAC address. It is assumed here that the user is familiar with issues concerning security as well as Note securing access for users and computers on a network.
Page 92: Port Security Feature
This is useful when there are other network devices connected to the MultiLink ML810 Managed Edge Switch. If there is an insecure access on the secondary device, the MultiLink ML810 Managed Edge Switch allows the authorized users to continue to access the network;...
Page 93: Configuring Port Security Through The Command Line Interface
• - specifies the designated action to take in case of a non action port authorized access • - port security - allows port security to be enable or disabled MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–3...
Page 94: Allowing Mac Addresses
Verify that the port is in default port security status. Use the following commands: #port-security (port-security)##ps enable (port-security)##allow mac=<address,list,range> port=<num,list,range> (port-security)##action port=<num,list,range>drop All the above commands have to be configured in this sequence, otherwise the port will Note remain insecure. 6–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 95 ENABLE NONE NONE DISABLE Not Configured ENABLE NONE NONE ENABLE Not Configured ENABLE NONE NONE DISABLE Not Configured ENABLE NONE NONE DISABLE Not Configured ENABLE NONE NONE DISABLE Not Configured ML810(port-security)## MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–5...
Page 96 Specified MAC address(es) removedfrom selected port(s) ML810(port-security)## show port-security port=3 PORT STATE SIGNAL ACTION LEARN COUNT MAC ADDRESS ---- ----- ------ ------ ----- ----- ----------- ENABLE NONE NONE ENABLE Not Configured ML810(port-security)## 6–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 97  (Optional step) Set the notification to notify the management station on security breach attempts (use the command signal port make a log entry or send a trap). MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–7...
Page 98: Security Logs
6.2.3 Security Logs All events occurring on the MultiLink ML810 Managed Edge Switch are logged. The events can be informational (e.g. login, STP synchronization etc.), debugging logs (for debugging network and other values), critical (critical events), activity (traffic activity) and fatal events...
Page 99 Date Time Log Description ---- ---- --------------- 12-17-2004 12:05:52 P.M PS:INTRUDER 00:e0:29:6c:a4: fd@port3, packet dropped 12-17-2004 12:07:04 P.M PS:INTRUDER 00:50:0f:02:33: b6@port5, packet dropped 12-17-2004 12:07:16 P.M PS:INTRUDER 00:e0:29:2a:f0: 3a@port5, packet dropped MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–9...
Page 100: Authorized Managers
(information, severity level 1) indicates routine events. • (activity, severity level 2) indicates the activity on the switch. • (debug, severity level 3) is reserved for GE Digital Energy internal diagnostic information • (critical, severity level 4) indicates that a severe switch error has occurred.
Page 101 Access entry removed ML810(access)## exit ML810# show ip-access ============================================================ IP Address | Mask | Telnet | Web | SNMP | ============================================================ 3.94.245.10 255.255.255.0 ALLOWED DENIED DENIED 3.94.245.25 255.255.255.255 ALLOWED DENIED DENIED MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–11...
Page 102: Configuring Port Security With Enervista Software
MAC addresses and specify individual MAC addresses.  To edit each port, click on the edit icon (  To enable or disable port security, use the Status drop down menu as shown below. 6–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 103  To delete a MAC address, click on the delete icon (  To add a MAC address, click on the Add button and fill in the MAC address in the MAC address window. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–13...
Page 104 Once port security is setup, it is important to manage the log and review it often. If the signals are sent to the trap receiver, the traps should also be reviewed for intrusion and other infractions. 6–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 105: Logs
MAC address, the port on which the access was attempted and the action taken by the MultiLink ML810 Managed Edge Switch. The event log lists the most recently detected security violation attempts. This provides a chronological entry of all intrusions attempted on a specific port.
Page 106: Authorized Managers
(information, severity level 1) indicates routine events. • (activity, severity level 2) indicates the activity on the switch. • (debug, severity level 3) is reserved for GE Digital Energy internal diagnostic information • (critical, severity level 4) indicates that a severe switch error has occurred.
Page 107 Also, a specific station with IP address 192.168.15.25 is allowed (again note how the subnet mask is used to allow only one specific station in the network) and an older station with IP address 192.168.15.15 is removed. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 6–17...
Page 108 ACCESS CONSIDERATIONS CHAPTER 6: ACCESS CONSIDERATIONS 6–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 109: Introduction To 802.1X
RADIUS server. Interacting with the server and taking corrective action(s) is not possible on all switches. This capability is provided on the MultiLink ML810 Managed Edge Switch.
Page 110 The supplicant (host) is initially blocked from accessing the network. The supplicant wanting to access these services starts with an EAPOL-Start frame. The authenticator (MultiLink ML810 Managed Edge Switch), upon receiving an EAPOL-start frame, sends a response with an EAP-Request/Identity frame back to the supplicant.
Page 111 • Relays MD5 challenge (although not limited to) authentication protocol to RADIUS server • Limits the authentication of a single host per port • The MultiLink ML810 Managed Edge Switch provides the IEEE 802.1x MIB for SNMP management MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 112: Configuring 802.1X Through The Command Line Interface
RADIUS authentication is on a port other than 1812. authserver [ip=<ip-addr>] [udp=<num>] [secret=<string>] commands enable or disable the 802.1x auth enable auth disable authenticator function on the MultiLink ML810 Managed Edge Switch. auth <enable|disable> command configures the port characteristics for an 802.1x network. setport setport port=<num|list|range> [status=<enable|disable>] [control=<auto|forceauth|forceunauth>] [initialize=<assert|deassert>]...
Page 113 The default value is 30 and values range from 1 to 65535 seconds command determines how the authenticator (MultiLink ML810 Managed reauth Edge Switch) performs the re-authentication with the supplicant or PC.
Page 114: Example
-- Port not available ML810(auth)## show auth config 802.1X Authenticator Configuration ================================== Status: Enabled RADIUS Authentication Server ================================== IP Address: 3.204.240.1 UDP Port: 1812 Shared Secret: secret (continued on following page) 7–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 115 Unauthorized is set to 7, and the time the authenticator waits to transmit another request for identification from the supplicant is changed to 120 seconds. These values can be changed on all ports depending on devices being authenticated. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 7–7...
Page 116 Port 3 Authentication Counters authEntersConnecting authEapLogoffsWhileConnecting authEntersAuthenticating authAuthSuccessesWhileAuthenticating authAuthTimeoutsWhileAuthenticating authAuthFailWhileAuthenticating authAuthReauthsWhileAuthenticating authAuthEapStartsWhileAuthenticating authAuthEapLogoffWhileAuthenticating authAuthReauthsWhileAuthenticated authAuthEapStartsWhileAuthenticated authAuthEapLogoffWhileAuthenticated backendResponses backendAccessChallenges backendOtherRequestsToSupplicant backendNonNakResponsesFromSupplicant backendAuthSuccesses backendAuthFails ML810(auth)## trigger-reauth port=3 Successfully triggered re-authentication ML810(auth)## 7–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 117: Configuring 802.1X With Enervista Secure Web Management Software
The following window shows the configuration of a RADIUS Server. Initially, the RADIUS Services are disabled and the server IP address is set to 0.0.0.0. Edit the server IP and secret to add a RADIUS server. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 7–9...
Page 118  Select the Configuration > Radius > Port > Set menu item to configure the RADIUS characteristics of each port.  To edit the port settings, click on the edit icon ( 7–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 119 The Quiet Period column represents the time, in seconds, the supplicant is held after an authentication failure before the authenticator retries the supplicant for connection. The value ranges from 0 to 65535 seconds, with a default of 60. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 7–11...
Page 120 The Max Request column represents the maximum times the authenticator retransmits an EAP request packet to the supplicant before it times out. Values are integers ranging from 1 to 10, with a default of 2. 7–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 121 Values range from 10 to 86400 seconds, with a default of 3600 (1 hour). The Configuration > Radius > Port > Stats menu item illustrates the radius statistics for each port. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 7–13...
Page 122 After all the port characteristics are enabled,  Do not forget to save the configuration using the save ( ) icon and enabling RADIUS from the Configuration > Radius > Server menu. 7–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 123: Introduction To Tacacs
TACACS+ clients. The protocol allows the TACACS+ client to request very fine- grained access control by responding to each component of a request. The MultiLink ML810 Managed Edge Switch implements a TACACS+ client. TACACS+ servers and daemons use TCP port 49 for listening to client requests.
Page 124: Tacacs+ Flow
EtherReal or others. Packet data is hashed and shared using MD5 and secret string defined between the MultiLink ML810 Managed Edge Switch and the TACACS+ server. 8–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 125 • Flags: This field contains various flags in the form of bitmaps. The flag values signify whether the packet is encrypted. • Session ID: The ID for this TACACS+ session. • Length: The total length of the TACACS+ packet body (not including the header). MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 8–3...
Page 126: Configuring Tacacs+ Through The Command Line Interface
The argument requires the secret shared key string must be supplied when encryption is enabled. 8.2.2 Example Example 8-1 below, illustrates how to configure TACACS+. 8–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 127 10.21.1.123 Enabled some ML810(user)## tacserver delete id=2 TACACS+ server is deleted. ML810(user)## show tacplus servers TACACS+ Server Port Encrypt ======================================= 10.21.1.170 Enabled secret ML810(user)## tacplus disable TACACS+ is disabled. ML810(user)## MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 8–5...
Page 128: Configuring Tacacs+ With Enervista Secure Web Management Software
 To add a server, click on the Add button as shown below. Note that the TCP port field can be left blank – port 49 is used as a default port. Up to five TACACS+ servers can be defined. 8–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 129 CHAPTER 8: ACCESS USING TACACS+ ACCESS USING TACACS+ After the configuration is completed,  Save the settings.  Enable the TACACS+ services by using the Status drop down menu.. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 8–7...
Page 130 ACCESS USING TACACS+ CHAPTER 8: ACCESS USING TACACS+ 8–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 131: 9: Port Mirroring
“reflected” on another port, typically a monitoring port. The MultiLink ML810 Managed Edge Switch can be instructed to repeat the traffic from one port onto another port. This process - when traffic from one port is reflecting to another port - is called port mirroring.
Page 132: Port Mirroring Using The Command Line Interface
Sniffer Port: 2 Monitor Port: 1 Mirroring State: enabled ML810# Once port monitoring is completed, GE strongly recommends that the port mirroring be disabled using the command for security reasons. prtmr disable Only one port can be set to port mirror at a time.
Page 133: Port Setup
PORT MIRRORING AND SETUP Port Setup 9.3.1 Commands Each port on the MultiLink ML810 Managed Edge Switch can be setup specific port characteristics. The commands for setting the port characteristics are shown below. command enters the device configuration mode: device...
Page 134 = Blocking Port Name Control Dplx Media Link Speed Part Auto VlanID GVRP ------------------------------------------------------------------------------- 10Tx 10Tx DOWN JohnDoe 10Tx DOWN JaneDoe 10Tx DOWN 100Tx 10Tx DOWN 10Tx DOWN ML810(device)## exit ML810# 9–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 135: Flow Control
Alternately, QoS and other techniques are widely used today. In the example below, the MultiLink ML810 Managed Edge Switch is set up with flow control and back pressure.
Page 136 : None Port Security : Enable Port Flow Control : Disable Port Back Pressure : Disable Port Link Loss Alert : Enabled ML810(device)## setport port=11 flow=enable bp=enable (continued on next page) 9–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 137: Broadcast Storms
9.3.4 Broadcast Storms One of the best features of the MultiLink ML810 Managed Edge Switch is its ability to keep broadcast storms from spreading throughout a network. Network storms (or broadcast storms) are characterized by an excessive number of broadcast packets being sent over the network.
Page 138 In Example 9-3, the broadcast protection is turned on. The threshold for port 11 is then set to a lower value of 3500 broadcast frames/second. 9–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 139: Link Loss Alert
9.3.5 Link Loss Alert The GE Digital Energy Universal Relay (UR) family and the F650 family of relays have redundant Ethernet ports that allow for automatic switching to their secondary ports when they detect the primary path is broken. The MultiLink ML810 Managed Edge Switch can compensate for situations where only the switch receiver fiber cable is broken.
Page 140 Port GVRP State : No GVRP Port Priority Type : None Port Security : Enable Port Flow Control : Enable Port Back Pressure : Enable Port Link Loss Alert : Enable 9–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 141: Port Mirroring Using Enervista Secure Web Management Software
To enable port mirroring as well as setting up the ports to be “sniffed”,  Select the Configuration > Port > Mirroring menu item.  Set the sniffer port and the port on which the traffic is reflected. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 9–11...
Page 142: Port Setup
 Make sure the Mirror Status is also set to enabled for mirroring: For security reasons, GE Digital Energy recommends that the port mirroring be disabled using the Edit button and setting the Mirror Status to off once port monitoring is completed.
Page 143  Select a specific port by using the edit icon in the Configuration > Port > Settings menu.  Click the edit icon to open the following window. In these windows: • Port Number represents the port number on the switch. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 9–13...
Page 144 Possible port settings for 100FX (fiber) ports are: • 100FDx (default): 100 Mbps, full-duplex • 100HDx: 100 Mbps, half-duplex To change the port speed on a transceiver port, the switch must be rebooted 9–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 145: Broadcast Storms
9.4.3 Broadcast Storms One of the best features of the MultiLink ML810 Managed Edge Switch is its ability to keep broadcast storms from spreading throughout a network. Network storms (or broadcast storms) are characterized by an excessive number of broadcast packets being sent over the network.
Page 146  After changes are made, do not forget to save the changes using the save icon ( If the switch is rebooted before the changes are made, the changes will be lost. 9–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 147: Vlan Description
Short for virtual LAN (VLAN), a VLAN creates separate broadcast domains or network segments that can span multiple MultiLink ML810 Managed Edge Switchs. A VLAN is a group of ports designated by the switch as belonging to the same broadcast domain. The IEEE 802.1Q specification establishes a standard method for inserting VLAN membership...
Page 148 VLAN 3 FIGURE 10–2: Ports assigned to multiple VLANs By default, on the MultiLink ML810 Managed Edge Switch, VLAN support is enabled and all ports on the switch belong to the default VLAN (DEFAULT-VLAN). This places all ports on the switch into one physical broadcast domain.
Page 149: Tag Vlan Vs. Port Vlan
VLAN 2 FIGURE 10–3: VLAN routing The Multilink ML810 supports up to 32 VLANs per switch 10.1.2 Tag VLAN vs. Port VLAN What is the difference between tag and port VLAN? In a nutshell - port VLAN sets a specific port or group of ports to belong to a VLAN.
Page 150 VLAN (broadcast domain) can be extended across a large network. 802.1Q-compliant switch ports, such as those on the MultiLink ML810 Managed Edge Switch, can be configured to transmit tagged or untagged frames. A tag field containing VLAN information can be inserted into an Ethernet frame.
Page 151: Configuring Port Vlans Through The Command Line Interface
VLANs is needed however the broadcasts and multicasts are isolated to the specific VLAN. GE recommends using the set-port command for setting the port based VLAN as well. The port-based VLAN feature supports a maximum of 1 VLAN per port. Any pre-existing VLAN tags on traffic coming into the switch on a port-based VLAN port will be removed.
Page 152 To edit VLANs: edit id=<vlan Id> [name=<vlan name>] port=<number|list|range> To display the VLAN information: show vlan type=<port|tag> [<id=vlanid>] The following command sequence shows how to configure VLANs on a MultiLink ML810 Managed Edge Switch. ML810# vlan type=port ML810(port-vlan)## add id=2 name=test port=1-7...
Page 153: Configuring Port Vlans With Enervista Secure Web Management Software
To eliminate the changes, reboot the switch without saving the changes. For VLAN configuration use Configuration > VLAN menu items as shown below. The Port VLANs are active by default. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–7...
Page 154 VLAN CHAPTER 10: VLAN The currently assigned Port VLANs are displayed as follows:  Select the Configuration > VLAN > Port-Based menu item. 10–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 155 As discussed above, ports 1, 2, 3, 5, 6, 7, and 8 still belong to default VLAN. We will now add another VLAN with VID=40 and VLAN name = Support.  Add the ports.  Define the VLAN.  Click OK.. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–9...
Page 156  To activate the VLAN, click on the Status button.  Select VLAN ID.  Select VLAN Status: Start . A specific VLAN can be activated or all VLANs can be activated (or disabled).  Click OK to activate VLAN.. 10–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 157 After activation, note that ports 1 to 3 belong to the new VLAN. The VLAN membership of the ports assigned to VLAN 40 now indicates that they are only members of VLAN 40. The default VLAN membership has been terminated on VLAN activation. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–11...
Page 158: Configuring Tag Vlans Through The Command Line Interface
VLAN id (termed PVID in previous versions). The default id default VLAN id is the VLAN id assigned to the untagged packets received on that port. For the MultiLink ML810 Managed Edge Switch, the default VLAN id is 1 set-port port=<number|list|range> default id=<number>...
Page 159: Example
Tag VLAN support VLAN ids from 1 to 4096. VLAN ids more than 2048 are reserved for specific purposes and it is recommended they not be used. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–13...
Page 160 ML810(port-vlan)## All active VLAN's stopped. exit ML810(port-vlan)## set vlan type=tag ML810# VLAN set to Tag-based. show active-vlan ML810# Tag VLAN is currently active. show vlan type=tag ML810# (Continued on next page) 10–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 161 ML810(tag-vlan)## ERROR: Duplicate Vlan Id add id=30 name=marketing port=3-5 ML810(tag-vlan)## Tag based vlan Added Successfully. Vlan id Vlan name : marketing Ports :3-5 show vlan type=tag ML810(tag-vlan)## (continued on next page) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–15...
Page 162 ML810(tag-vlan)## All pending VLAN's started. set-port port=3-5 filter status=enable ML810(tag-vlan)## Ingress Filter Enabled show vlan type=tag ML810(tag-vlan)## VLAN ID: 1 Name : Default VLAN Status : Active (continued on next page) 10–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 163 ML810(tag-vlan)## Port tagging enabled set-port port=3-5 tagging id=30 status=tagged ML810(tag-vlan)## Port tagging enabled show vlan type=tag ML810(tag-vlan)## VLAN ID: 1 Name : Default VLAN Status : Active (continued on next page) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–17...
Page 164 DOWN TAGGED | DOWN TAGGED | DOWN VLAN ID: 30 Name : marketing Status : Active ----------------------------------------------- PORT | MODE STATUS ----------------------------------------------- TAGGED | DOWN TAGGED | DOWN TAGGED | DOWN 10–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 165: Configuring Tag Vlans With Enervista Secure Web Management Software
As such, it is recommended they not be used. To use the Tag VLAN, first  Set the VLAN type to Tag in the Configuration > VLAN > Set Type menu. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–19...
Page 166 • VLAN 1, All ports - default VLAN • VLAN 10, Engineering VLAN - ports 2, 3, 4 • VLAN 20, Support VLAN - ports 4, 5 (note that port 4 belongs to VLAN 10, 20) 10–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 167 VLAN 20, 30)  After adding the ports and defining the VLAN, click OK.  Click on Port Settings in the Configuration >VLAN >Tag-Based menu and enable the tagging for each port.. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–21...
Page 168 After all the ports are tagged, the tagged column should change to “Yes” for all VLANs To check the status of the tagging,  Select the Configuration > VLAN > Tag-Based > Tagging menu. 10–22 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 169 In the example below, we will take port 2 and assign it to leave VLAN 10. After the action is completed, note that port 2 will belong to VLAN 1 only. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 10–23...
Page 170 To enable the filter capability for each port, use the Configuration >VLAN >Tag-Based > Settings menu as shown below. Use the Configuration >VLAN >Tag-Based > Filter menu to view the filter information for the ports. 10–24 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 171: Escription
The Generic Attribute Registration Protocol (GARP) and VLAN registration over GARP is called GVRP. GVRP is defined in the IEEE 802.1q and GARP in the IEEE 802.1p standards. To utilize the capabilities of GVRP, GE Digital Energy recommends that the user become familiar with the concepts and capabilities of IEEE 802.1q.
Page 172: Gvrp Operations
VLAN (DEFAULT_VLAN; VID = 1), which is automatically enabled and configured as untagged on every port of the MultiLink ML810 Managed Edge Switch. That is, on ports used as GVRP links, leave the default VLAN set to untagged and configure other static VLANs on the ports as either “Tagged or Forbid”...
Page 173 • Ignore the advertisement for that VID and drop all GVRP traffic with that VID • Don't participate in that VLAN • A port belonging to a tagged or untagged static VLAN has these configurable options: MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 11–3...
Page 174 Example 11-1 illustrates how to convert a dynamic VLAN into a static VLAN. As the following table indicates, a port that has a tagged or untagged static VLAN has the option for both generating advertisements and dynamically joining other VLANs. 11–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 175 VLANs operate as tagged VLANs, and it is possible that a tagged port on one device may not communicate with an untagged port on another device, GE Digital Energy recommends that you use tagged VLANs for the static VLANs.
Page 176 The time-to-live for dynamic VLANs is 10 seconds. That is, if a port has not received an advertisement for an existing dynamic VLAN during the last 10 seconds, the port removes itself from that dynamic VLAN. 11–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 177: Configuring Gvrp Through The Command Line Interface
Similarly, the switch advertises its static VLANs to other GVRP-aware devices. A GVRP-enabled switch does not advertise any GVRP-learned VLANs out of the port(s) on which it originally learned of those VLANs. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 11–7...
Page 178 NAME VLAN STATUS ================================================= Default VLAN Static Active Blue Static Active dyn6 Static Active ML810(gvrp)## set-forbid vlan=2 forbid=3-5 ML810(gvrp)## show-forbid ============================================ VLAN ID FORBIDDEN PORTS ============================================ None 3, 4, 5 ML810(gvrp)## 11–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 179: Configuring Gvrp With Enervista Secure Web Management Software
VLANs operate as tagged VLANs, and it is possible that a tagged port on one device may not communicate with an untagged port on another device, GE Digital Energy recommends that you use tagged VLANs for the static VLANs.
Page 180 VLAN REGISTRATION OVER GARP CHAPTER 11: VLAN REGISTRATION OVER GARP 11–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 181: Protocol (Stp) Description
This duplication leads to a “broadcast storm” or other erratic behavior that can bring down the network. As recommended in the IEEE 802.1Q VLAN standard, the MultiLink ML810 Managed Edge Switch uses single-instance STP. This means a single spanning tree is created to make sure there are no network loops associated with any of the connections to the switch.
Page 182 Bridge maximum age 20 seconds Hello time 2 seconds Forward delay 15 seconds Reconfiguring per-port STP path cost Priority 32768 Mode Normal Monitoring of STP Not available Root Port Not set 12–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 183: Configuring Stp
• Designated Root Priority: Shows the designated root bridge's priority. The default value is 32768. • Root Bridge Forward Delay: Indicates the designated root bridge forward delay. This is the time the switch waits before switching from the listening to the MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 12–3...
Page 184 STP Port Configuration ------------------------------------------------------------------------------- Port# Type Priority Path Cost State Des. Bridge Des. Port ------------------------------------------------------------------------------- TP(10/100) Disabled 80:00:00:20:06:2b:e1:54 80:01 TP(10/100) Disabled 80:00:00:20:06:2b:e1:54 80:02 100MB Fiber Disabled 80:00:00:20:06:2b:e1:54 80:03 100MB Fiber Disabled 80:00:00:20:06:2b:e1:54 80:04 12–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 185 STP is currently active. show active-stp show active-stp Incorrect STP settings can adversely affect network performance. GE recommends starting Note with the default STP settings. Changing the settings requires a detailed understanding of STP. For more information on STP, please refer to the IEEE 802.1d standard.
Page 186 Bridge ID 80:00:00:20:06:2b:e1:54 Bridge Priority 32768 Bridge Forward Delay Bridge Hello Time Bridge Max Age Root Port Root Path Cost Designated Root 80:00:00:20:06:2b:e1:54 Designated Root Priority 32768 Root Bridge Forward Delay 12–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 187 STP information is allowed by the switch before the switch discards the information and updates the address table again. Value ranges from 6 to 40 seconds with default value of 20. timers forward-delay=<4-30> hello=<1-10> age=<6-40> MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 12–7...
Page 188 Root Bridge Hello Time Root Bridge Max Age show stp ports ML810(stp)## STP Port Configuration ------------------------------------------------------------------------------- Port# Type Priority Path Cost State Des. Bridge Des. Port ------------------------------------------------------------------------------- TP(10/100) Disabled 80:00:00:20:06:2b:e1:54 80:01 12–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 189 Bridge Max Age Root Port Root Path Cost Designated Root 3c:af:00:20:06:2b:e1:54 Designated Root Priority 15535 Root Bridge Forward Delay Root Bridge Hello Time Root Bridge Max Age priority port=2 value=20 ML810(stp)## MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 12–9...
Page 190 100MB Fiber Disabled 80:00:00:20:06:2b:e1:54 80:04 100MB Fiber Disabled 80:00:00:20:06:2b:e1:54 80:05 100MB Fiber Disabled 80:00:00:20:06:2b:e1:54 80:06 TP(10/100) Disabled 80:00:00:20:06:2b:e1:54 80:07 port port=1 status=disable ML810(stp)## Successfully set the STP status for port 1 12–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 191 Bridge Forward Delay Bridge Hello Time Bridge Max Age Root Port Root Path Cost Designated Root 80:00:00:20:06:2b:e1:54 Designated Root Priority 15535 Root Bridge Forward Delay Root Bridge Hello Time Root Bridge Max Age MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 12–11...
Page 192 YES, 1,2,3,4,5,6,7 Protocol Normal STP Bridge ID 80:00:00:20:06:2b:e1:54 Bridge Priority 15535 Bridge Forward Delay Bridge Hello Time Bridge Max Age Root Port Root Path Cost Designated Root 80:00:00:20:06:2b:e1:54 Designated Root Priority 15535 12–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 193: Rstp Concepts
• STP recognizes one state - blocking for ports that should not forward any data or information. RSTP explicitly recognizes two states or blocking roles - alternate and backup port including them in computations of when to learn and forward and when to block MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–1...
Page 194: Transition From Stp To Rstp
IEEE 802.1w RSTP is designed to be compatible with IEEE 802.1D STP. Even if all the other devices in your network are using STP, you can enable RSTP on the MultiLink ML810 Managed Edge Switch. The default configuration values of the RSTP available in ML800 software will ensure that your switch will inter-operate effectively with the existing STP devices.
Page 195 This may create incompatibility between devices running the older implementations of STP a switch running RSTP. At any given time, the software can support either STP or RSTP but not both. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–3...
Page 196: Configuring Rstp Through The Command Line Interface
RSTP or STP parameters. show stp show stp <config|ports> Users may notice extended recovery time if there is a mix of firmware revisions in the Mesh Note or Ring 13–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 197 Designated Root Priority : 32768 Root Bridge Forward Delay : 15 Root Bridge Hello Time : 02 Root Bridge Max Age : 20 Topology Change count Time Since topology Chg : 16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–5...
Page 198 RSTP Port Configuration ------------------------------------------------------------------------------- Port# Type Priority Path Cost State Des. Bridge Des. Port ------------------------------------------------------------------------------- TP(10/100) 2000000 Disabled 00:01 TP(10/100) 2000000 Disabled 00:02 100MB Fiber 200000 Disabled 00:03 100MB Fiber 200000 Disabled 00:04 13–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 199 More CLI commands associated with RSTP in the RSTP configuration mode are shown below. The command sets the STP or RSTP compatibility mode. forceversion forceversion <stp|rstp> command displays the current forced version. show-forceversion show-forceversion MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–7...
Page 200 STP information is allowed by the switch before the switch discards the information and updates the address table again. Value ranges from 6 to 40 seconds with default value of 20. 13–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 201 Current Active Mode: RSTP. RSTP is Disabled. rstp enable ML810(rstp)## Successfully set the RSTP status show active-stp ML810(rstp)## Current Active Mode: RSTP. RSTP is Enabled. show stp config ML810(rstp)## RSTP CONFIGURATION ----------------- MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–9...
Page 202 : 15 Bridge Hello Time : 02 Bridge Max Age : 20 Root Port Root Path Cost Designated Root : 80:00:00:20:06:2b:e1:55 Designated Root Priority : 32768 Root Bridge Forward Delay : 15 13–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 203 Forwarding 80:00:00:20:06:2b:e1:55 00:02 100MB Fiber 200000 Disabled 00:03 100MB Fiber 200000 Disabled 00:04 100MB Fiber 200000 Disabled 00:05 100MB Fiber 200000 Disabled 00:06 TP(10/100) 2000000 Disabled 00:07 priority port=2 value=100 ML810(rstp)## MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–11...
Page 204 ML810(rstp)## show stp ports ML810(rstp)## RSTP Port Configuration ------------------------------------------------------------------------------- Port# Type Priority Path Cost State Des. Bridge Des. Port ------------------------------------------------------------------------------- TP(10/100) 2000000 Forwarding 80:00:00:20:06:2b:e1:55 00:01 TP(10/100) 250000 Forwarding 80:00:00:20:06:2b:e1:55 00:02 13–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 205: Smart Rstp (Ring-Only Mode) Through The Command Line Interface (Cli)
A special case of a mesh structure is a ring. In many networks, network managers prefer to create a ring structure for redundancy and simplicity of the topology. In a ring structure: All switches in the network are GE Digital Energy switches. RSTP is enabled on all the switches.
Page 206 RO-MODE status : Enabled RO-MODE set on ports : 1,2 romode disable ML810(rstp)## RSTP Ring Only Mode Disabled. romode show ML810(rstp)## RO-MODE status : Disabled RO-MODE set on ports : 1,2 13–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 207: Configuring Stp/Rstp With Enervista Secure Web Management Software
MAC address to determine which switch in the network is the root device. Lower values mean higher priority. The value ranges from 0 to 65535, with a default of 32768 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–15...
Page 208 On this screen, you can select and enable STP or RSTP.  Under protocol, select “Force to STP” if there are legacy or other third party devices that do not support RSTP.  Otherwise it is recommended to enable “Normal RSTP”. 13–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 209  Simply enable RSTP (or STP) and let the system default values prevail. After RSTP is enabled, the fields are updated.  Note the Status, Time since TC, and Designated Root values. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–17...
Page 210 • Edge Ports: RSTP offers edge port recognition, allowing ports at the edge of the network to forward frames immediately after activation while at the same time protecting them against loops. 13–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 211: Smart Rstp (Ring-Only Mode) With Enervista Secure Web Management Software
A ring is a special case mesh structure. In many networks, network managers prefer to create a ring structure for topological redundancy and simplicity. In a ring structure: All switches in the network are GE Digital Energy switches. RSTP is enabled on all the switches.
Page 212  Enable RSTP by setting the STP Type to RSTP in the Administration > Set > STP Type menu:  Select the Configuration > RSTP > Bridge RSTP menu as shown below.  Click the Edit button to configure RSTP. 13–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 213  Select the Configuration > RSTP > RO Mode menu as shown below:  Click the Edit button to configure RO Mode.  Select the desired ports as shown below, then click OK to exit. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 13–21...
Page 214 Only 2 ports can be selected to Ring Only Mode. Note  Select the Enabled option for the Status setting as shown below:  Save the configuration by clicking on the icon. 13–22 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 215: Qos Overview
14.1.2 QoS Concepts The MultiLink ML810 Managed Edge Switch supports QoS as specified in the IEEE 802.1p and IEEE 802.1q standards. QoS is important in network environments where there are time-critical applications, such as voice transmission or video conferencing, which can be adversely effected by packet transfer delays or other latency in a network.
Page 216: Diffserv And Qos
To make the preemptive queuing possible, most switches implement at least two queue buffers. The MultiLink ML810 Managed Edge Switch has two priority queues, 1 (low) and 0 (high).When tagged packets enter a switch port, the switch responds by placing the packet into one of the two queues, and depending on the precedence levels the queue could be rearranged to meet the QoS requirements.
Page 217 ToS byte. The MultiLink ML810 Managed Edge Switch has the capability to provide QoS at Layer 2. At Layer 2, the frame uses Type of Service (ToS) as specified in IEEE 802.1p. ToS uses 3 bits, just like IP precedence, and maps well from Layer 2 to layer 3, and vice versa.
Page 218: Configuring Qos Through The Command Line Interface
14.2 Configuring QoS through the Command Line Interface 14.2.1 Commands The MultiLink ML810 Managed Edge Switch supports three types of QoS - Port based, Tag based and ToS based. QoS is disabled by default on the switch. QoS needs to be enabled and configured.
Page 219 802.1p user priority assigned to untagged received untag packets to be transmitted as tagged from the priority queue. set-untag port=<port|list|range> priority=<high|low> tag=<0-7> MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 14–5...
Page 220: Example
All traffic on port 2 is sent to the high priority queue and the QoS None DOWN tag is set to 6. None DOWN None DOWN show qos type=port ML810(qos)## ================================ PORT | PRIORITY | STATUS 14–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 221 The queue behavior is set so that 8 high-priority packets and 1 low-priority Successfully set QOS. packet is sent out. show qos type=tag ML810(qos)## ======================================== PORT | | STATUS ======================================== DOWN DOWN DOWN DOWN DOWN DOWN DOWN MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 14–7...
Page 222 Port priority Weight set to 8 High : 1 Low. show qos ML810(qos)## ======================================== PORT | | STATUS ======================================== Port DOWN DOWN DOWN None DOWN None DOWN None DOWN None DOWN ML810(qos)## 14–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 223: Configuring Qos With Enervista Secure Web Management Software
CHAPTER 14: QUALITY OF SERVICE QUALITY OF SERVICE 14.3 Configuring QoS with EnerVista Secure Web Management software 14.3.1 Description To access QoS settings,  Select the Configuration > QoS menu items. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 14–9...
Page 224 QoS with a high priority. Note the sections on Tag and TOS are ignored for Port settings. After the port QoS settings are completed, the changes are reflected on the QoS menu screen. The port 1 QoS settings indicate high priority set. 14–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 225 Next, a tag-based QoS is enabled on port 3. Note that only the menu area for the tag setting is relevant. After the Tag QoS settings are completed, the changes are reflected on the QoS menu screen. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 14–11...
Page 226 Note that the different settings are clear from the window below. Port 1 has port-based QoS, port 3 has tag-based QoS, and port 5 is using ToS.  After all changes are made, save the changes using the save icon 14–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 227: Description
The ML800 supports IGMP L2 standards as defined by RFC 1112. IGMP is disabled by default and needs to be enabled on the MultiLink ML810 Managed Edge Switch. IP multicasting is defined as the transmission of an IP datagram to a “host group”, a set of zero or more hosts identified by a single IP destination address.
Page 228 (within a subnet) and allows IGMP-configured hosts (and routers) to join or leave multicast groups. When IGMP is enabled on the MultiLink ML810 Managed Edge Switch, it examines the IGMP packets it receives to: • Learn which ports are linked to IGMP hosts and multicast routers/queriers belonging to any multicast group.
Page 229 In this case, the IGMP-configured switch runs as a querier. PCs 2, 5, and 6 are members of the same IP multicast group. IGMP is configured on switches 3 and 4. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 15–3...
Page 230: Ip Multicast Filters
IP multicast addresses occur in the range from 224.0.0.0 through 239.255.255.255 (which corresponds to the Ethernet multicast address range of 01005e-000000 through 01005e- 7fffff in hexadecimal.) Devices such as the MultiLink ML810 Managed Edge Switch having static Traffic/Security filters configured with a “Multicast” filter type and a “Multicast Address”...
Page 231: Reserved Addresses Excluded From Ip Multicast (Igmp) Filtering
The difference between Version 1 and Version 2 is that version 1 does not have a “Leave” mechanism for the host. The MultiLink ML810 Managed Edge Switch does pruning when there is a leave message or a time expires on a port, we prune the multicast group membership on that port.
Page 232: Configuring Igmp Through The Command Line Interface
• Multicasting Unknown Streams shows if the control of multicast streams is on (Enabled) or off (Disabled). command displays the multicast groups. show-group 15–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 233 The range can be from 2 to 270 seconds, with a default of 10. Restrictions apply to the maximum value because of an internal calculation that is dependent on the value of the query interval. set-qri interval=<value> MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 15–7...
Page 234: Example
Port mode is set. ML810(igmp)## show-port --------------------- Port Mode --------------------- Auto Forwarding Forwarding Forwarding Auto Auto Auto ML810(igmp)## show-router RouterIp PortNo Timer --------------------------------- 10.21.1.250 (continued on next page) 15–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 235: Show Igmp
: Disabled Querier : Disabled Querier Interval : 127 Querier Response Interval : 10 Multicasting Unknown Streams : Enabled ML810(igmp)## set-qri interval=11 Query response interval successfully set (continued on next page) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 15–9...
Page 236 MCAST is enabled ML810(igmp)## show igmp IGMP State : Enabled ImmediateLeave : Disabled Querier : Disabled Querier Interval : 127 Querier Response Interval : 11 Multicasting Unknown Streams : Enabled 15–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 237: Configuring Igmp With Enervista Secure Web Management Software
The menu allows the IGMP parameters to be set and provides information on IGMP groups and routers. The menu allows the IGMP parameters described earlier to be set. It also provides the necessary information of IGMP groups and routers. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 15–11...
Page 238 Changes are reflected on the Configuration > IGMP > Information screen. The groups and routers screen displays the IGMP Groups and IGMP Routers information. All edits to IGMP are done through the Information screen. 15–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 239: Description
SNMPv3 packets are generated as a function of the authoritative SNMP engine's engine ID and user passwords. When an SNMP message expects a response (for example, get exact, get next, set request), the receiver of these messages is MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–1...
Page 240 (OIDs) are both read- accessible and write-accessible. Users belonging to a particular SNMP group inherit all of these attributes defined by the group. 16–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 241: Traps
• RFC 1905, Protocol Operations for Version 2 of the Simple Network Management Protocol (SNMPv2). SNMPv2 Working Group • RFC 1906, Transport Mappings for Version 2 of the Simple Network Management Protocol (SNMPv2) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–3...
Page 242 • RFC 2274, User-Based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) • RFC 2275, View-Based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) 16–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 243: Configuring Snmp Through The Command Line Interface
The station can receive trap v1, v2 traps and/or inform notifications. An inform notification is an acknowledgments that a trap has been received. A user can add up to 5 stations. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–5...
Page 244: Example
The is optional and is the show-user number corresponding to the view entry number in the table. show-user [id=<id>] 16.2.2 Example The following example shows how to configure SNMP. 16–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 245 Authentication trap status is set successfully ML810(snmpv3)## show-authtrap Authentication Trap Status: Enabled ML810(snmpv3)## deftrap community=mysecret Default trap community is set successfully ML810(snmpv3)## show-deftrap Default Trap Community : mysecret (continued on next page) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–7...
Page 246 ML810(snmpv3)## show-com2sec id=2 Com2Sec ID Security Name : BCM Source : default Community : public ML810(snmpv3)## group add id=1 groupname=v1 model=v1 com2secid=1 Entry is added successfully (continued on next page) 16–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 247 View Name : all Type : included Subtree : .1 Mask : ff ML810(snmpv3)## access add id=1 accessname=v1 model=v1 level=noauth read=1 writ notify=none Entry is added successfully (continued on next page) MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–9...
Page 248 ML810(snmpv3)## show-user id=1 User ID User Name : jsmith User Type : read-write Auth. Pass : something Priv. Pass Auth. Type : MD5 Auth. Level : auth Subtree ML810(snmpv3)## exit ML810# 16–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 249: Configuring Snmp With Enervista Secure Web Management Software
 Select the Configuration > SNMP menu item.  Use the Edit button to change the SNMP community parameters.  Use the Add buttons to add the management and trap receivers. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–11...
Page 250  When adding SNMP manager stations, click on the Add button on the SNMP menu screen.  Make sure that each station can be pinged from the switch by using the Configuration > Ping menu. 16–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 251 Administration > Ping menu.  Determine which sorts of traps each station will receive, as shown above. If not sure, select all three types.  When done adding trap receivers, click OK. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 16–13...
Page 252 ). To change the stations characteristics or IP addresses, it is recommended to delete the station and add a new one.  After all changes are made, save the changes using the save icon ( 16–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 253: Configuring Rmon
16.4.1 Description The switch supports RMON (Remote Monitoring) on all connected network segments. This allows for troubleshooting and optimizing your network. The MultiLink ML810 Managed Edge Switch provides hardware-based RMON counters. The switch manager or a network management system can poll these counters periodically to collect the statistics in a format that compiles with the RMON MIB definition.
Page 254 SNMP CHAPTER 16: SNMP ML810(rmon)## show rmon event RMON Event Default Owner : test RMON Event Default Community : somestring ML810(rmon)## exit ML810# 16–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 255: Commands
If this capability is used, please ensure that SPAM filters and other filters are not set to delete these e-mails. GE Digital Energy recommends that a rule be setup on the mail server so that all e-mails indicating SNMP faults are automatically stored in a folder or redirected to the necessary administrators.
Page 256: Commands
TCP port is used. parameter specifies the domain name of the SMTP server. If this optional domain is not defined, the global default domain name is used. 17–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 257: Example
The following example shows how to set SMTP to receive SNMP trap information via e-mail. E-mail alerts can be forwarded to be received by other devices such as cellphones and Note pages. Most interfaces to SMTP are already provided by the service provider. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–3...
Page 258 3.30.154.28 abc.com delete id=2 ML810(smtp)## Recipient successfully deleted show smtp recipients ML810(smtp)## show smtp recipients ML810(smtp)## ID E-mail Address SMTP Server From Domain Port Traps Events =================================================================== jsmith@ge.com 3.94.210.25 ge.com 17–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 259: Statistics
To view port-specific statistics,  Select the Configuration > Statistics > Port Statistics menu item. Each port can be viewed by clicking on the back or forward buttons. Each group represents different statistics. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–5...
Page 260 MISCELLANEOUS COMMANDS CHAPTER 17: MISCELLANEOUS COMMANDS The following figure displays the port statistics for group 2. The following figure displays the port statistics for group 3. 17–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 261: Serial Connectivity
Properties window is open, click on the ASCII Setup button and in the Line Delay entry box enter in 500 and in the Character Delay entry box enter in 50 as shown below. 754729A1.CDR FIGURE 17–1: Optimizing serial connection in HyperTerminal MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–7...
Page 262: History
The history is cleared if the user logs out or if the switch times out. The history count restarts when the user logs in. command displays the current software version. show version show version 17–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 263: Ping
Select the Administration > Ping menu item to use ping. As mentioned earlier, many devices do not respond to commands. Make sure that ping the target device responds or the network allows ping packets to propagate. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–9...
Page 264: Prompt
Core 192.168.5.5 (snmp)## set prompt $b$b$i$b Core 192.168.5.5 # set prompt $n$b$i$b 192.168.5.5 # ML800 192.168.5.5 # set prompt Some$bthing$i ML800 192.168.5.5 # set prompt Some$bthing$b$i Some thing192.168.5.5# Some thing 192.168.5.5# 17–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 265: System Events
• I (Information) indicates routine events; A (Activity) indicates activity on the switch; D (Debug) is reserved for GE Digital Energy; C (Critical) indicates that a severe switch error has occurred; and F (Fatal). indicates that a service has behaved unexpectedly.
Page 266: Enervista Example
 Select the Configuration > Statistics > Log Statistics menu item. The Log Statistics window displays the logged events received – most logs are typically informational and activity. The log buffer size can be controlled through this menu. 17–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 267 The Event Log records operating events as single-line entries listed in chronological order. For details on event log records, refer to Chapter 17 - Description. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–13...
Page 268: Command Reference
• : displays the QOS settings show qos • : displays the rmon configuration parameters show rmon • : displays the setup parameters of the system show setup 17–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 269 : allows to login as another user enable • help • : to generate the host table for FTP users host • : to set more pipe in screen outputs more MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–15...
Page 270: Configuration Commands
• • telnet • The alarm commands are shown below. • • alarm • • period The authorization commands are shown below. • auth • authserver • backend • clear-stats 17–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 271 : displays IGMP port mode show-port • : displays IGMP router list show-router The Link Aggregation Control Protocol (LACP) commands are shown below. • lacp • add port • del port • edit port MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–17...
Page 272 : shows the current force version of RSTP show-forceversion • : shows the port mode status show-mode • : shows the bridge time parameters show-timers • : changes the bridge time parameters timers 17–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 273 • : changes the user access permissions chlevel • : deletes an existing user delete • help user • : change the user password passwd • tacplus • tacserver • useraccess MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 17–19...
Page 274 The VLAN commands are shown below. Refer to Chapter 10 - VLAN for additional details. • • delete • edit • save • set-egress • set-ingress • set-port • show-egress • show-ingress • show-port • start • stop • vlan 17–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 275: Modbus Configuration
TCP/IP transport and how Modicon controllers or other PLC devices can communicate over a TCP/IP network. To facilitate this communications, the MultiLink ML810 Managed Edge Switch allows Modbus connectivity. As per this RFC, Modbus communications take place on TCP port 502. Please make sure the network security devices do not block port 502.
Page 276 Modbus is Using Port: 602 Modbus is Using Device: 5 ML810(access)## modbus port=default Modbus Port Set to Default ML810(access)## show modbus Access to Modbus enabled Modbus is Using Port :502 Modbus is Using Device :5 18–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 277: Enervista Settings
CHAPTER 18: MODBUS PROTOCOL MODBUS PROTOCOL 18.1.3 EnerVista Settings To modify the Modbus settings through EnerVista Secure Web Management software,  Select the Configuration > Access > Modbus menu item. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–3...
Page 278: Memory Mapping
Port 9 type 0 to 6 Varies 005F Port 10 type 0 to 6 Varies 0060 Port 11 type 0 to 6 Varies 0061 Port 12 type 0 to 6 Varies 18–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 279 Port 23 link status 0 to 1 008D Port 24 link status 0 to 1 008E Port 25 link status 0 to 1 008F Port 26 link status 0 to 1 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–5...
Page 280 0 to 1 00BA Port 5 activity 0 to 1 00BB Port 6 activity 0 to 1 00BC Port 7 activity 0 to 1 00BD Port 8 activity 0 to 1 18–6 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 281 Port 1: Number of bad fragments 0 to received (<64 bytes) 4294967295 00EC Port 1: Number of jabber frames 0 to received 4294967295 00EE Port 1: Number of collisions occurred 0 to 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–7...
Page 282 Port 2: Number of late collisions 0 to occurred 4294967295 0124 Port 2: Number of 64-byte frames 0 to received/sent 4294967295 0126 Port 2: Number of 65 to 127 byte 0 to frames received/sent 4294967295 18–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 283 4294967295 015C Port 3: Number of 256 to 511 byte 0 to frames received/sent 4294967295 015E Port 3: Number of 512 to 1023 byte 0 to frames received/sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–9...
Page 284 Port 4: Number of 1023 to maximum 0 to byte frames received/sent 4294967295 0194 Port 4: Number of MAC error packets 0 to 4294967295 0196 Port 4: Number of dropped received 0 to packets 4294967295 18–10 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 285 Port 5: Number of multicast frames 0 to sent 4294967295 01CC Port 5: Number of broadcast frames 0 to sent 4294967295 01CE Port 5: Number of <64 byte fragments 0 to with good CRC 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–11...
Page 286 4294967295 0202 Port 7: Number of bytes received 0 to 4294967295 0204 Port 7: Number of bytes sent 0 to 4294967295 0206 Port 7: Number of frames received 0 to 4294967295 18–12 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 287 0 to 4294967295 023A Port 8: Number of frames sent 0 to 4294967295 023C Port 8: Total bytes received 0 to 4294967295 023E Port 8: Total frames received 0 to 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–13...
Page 288 Port 9: Number of broadcast frames 0 to received 4294967295 0274 Port 9: Number of multicast frames 0 to received 4294967295 0276 Port 9: Number of frames with CRC 0 to error 4294967295 18–14 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 289 Port 10: Number of oversized frames 0 to received 4294967295 02AC Port 10: Number of bad fragments 0 to received (<64 bytes) 4294967295 02AE Port 10: Number of jabber frames 0 to received 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–15...
Page 290 Port 11: Number of collisions occurred 0 to 4294967295 02E4 Port 11: Number of late collisions 0 to occurred 4294967295 02E6 Port 11: Number of 64-byte frames 0 to received/sent 4294967295 18–16 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 291 4294967295 031C Port 12: Number of 128 to 255 byte 0 to frames received/sent 4294967295 031E Port 12: Number of 256 to 511 byte 0 to frames received/sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–17...
Page 292 Port 13: Number of 512 to 1023 byte 0 to frames received/sent 4294967295 0354 Port 13: Number of 1023 to maximum 0 to byte frames received/sent 4294967295 0356 Port 13: Number of MAC error packets 0 to 4294967295 18–18 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 293 Port 14: Number of dropped received 0 to packets 4294967295 038C Port 14: Number of multicast frames 0 to sent 4294967295 038E Port 14: Number of broadcast frames 0 to sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–19...
Page 294 Port 15: Number of <64 byte fragments 0 to with good CRC 4294967295 03C4 Port 16: Number of bytes received 0 to 4294967295 03C6 Port 16: Number of bytes sent 0 to 4294967295 18–20 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 295 0 to 4294967295 03FA Port 17: Number of frames received 0 to 4294967295 03FC Port 17: Number of frames sent 0 to 4294967295 03FE Port 17: Total bytes received 0 to 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–21...
Page 296 0432 Port 18: Total frames received 0 to 4294967295 0434 Port 18: Number of broadcast frames 0 to received 4294967295 0436 Port 18: Number of multicast frames 0 to received 4294967295 18–22 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 297 Port 19: Number of frames with CRC 0 to error 4294967295 046C Port 19: Number of oversized frames 0 to received 4294967295 046E Port 19: Number of bad fragments 0 to received (<64 bytes) 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–23...
Page 298 Port 20: Number of jabber frames 0 to received 4294967295 04A4 Port 20: Number of collisions occurred 0 to 4294967295 04A6 Port 20: Number of late collisions 0 to occurred 4294967295 18–24 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 299 0 to received/sent 4294967295 04DC Port 21: Number of 65 to 127 byte 0 to frames received/sent 4294967295 04DE Port 21: Number of 128 to 255 byte 0 to frames received/sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–25...
Page 300 4294967295 0514 Port 22: Number of 512 to 1023 byte 0 to frames received/sent 4294967295 0516 Port 22: Number of 1023 to maximum 0 to byte frames received/sent 4294967295 18–26 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 301 Port 23: Number of MAC error packets 0 to 4294967295 054C Port 23: Number of dropped received 0 to packets 4294967295 054E Port 23: Number of multicast frames 0 to sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–27...
Page 302 Port 24: Number of broadcast frames 0 to sent 4294967295 0584 Port 24: Number of <64 byte fragments 0 to with good CRC 4294967295 0586 Port 25: Number of bytes received 0 to 4294967295 18–28 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 303 4294967295 05BA Port 26: Number of bytes sent 0 to 4294967295 05BC Port 26: Number of frames received 0 to 4294967295 05BE Port 26: Number of frames sent 0 to 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–29...
Page 304 0 to 4294967295 05F2 Port 27: Total bytes received 0 to 4294967295 05F4 Port 27: Total frames received 0 to 4294967295 05F6 Port 27: Number of broadcast frames 0 to received 4294967295 18–30 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 305 Port 28: Number of multicast frames 0 to received 4294967295 062C Port 28: Number of frames with CRC 0 to error 4294967295 062E Port 28: Number of oversized frames 0 to received 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–31...
Page 306 Port 29: Number of bad fragments 0 to received (<64 bytes) 4294967295 0664 Port 29: Number of jabber frames 0 to received 4294967295 0666 Port 29: Number of collisions occurred 0 to 4294967295 18–32 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 307 Port 30: Number of late collisions 0 to occurred 4294967295 069C Port 30: Number of 64-byte frames 0 to received/sent 4294967295 069E Port 30: Number of 65 to 127 byte 0 to frames received/sent 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–33...
Page 308 4294967295 06D4 Port 31: Number of 256 to 511 byte 0 to frames received/sent 4294967295 06D6 Port 31: Number of 512 to 1023 byte 0 to frames received/sent 4294967295 18–34 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 309 Port 32: Number of 1023 to maximum 0 to byte frames received/sent 4294967295 070C Port 32: Number of MAC error packets 0 to 4294967295 070E Port 32: Number of dropped received 0 to packets 4294967295 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–35...
Page 310 4294967295 0712 Port 32: Number of broadcast frames 0 to sent 4294967295 0714 Port 32: Number of <64 byte fragments 0 to with good CRC 4294967295 0716 Serial Number String Varies 18–36 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 311: Format Codes
4 = Giga - 10/100/1000 (triple speed) 5 = Giga - Copper 1000 TP 6 = Giga - SFP • F9: 32-bit unsigned long • String: A sequence of octets, packed 2 to one register in sequence. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL 18–37...
Page 312 MODBUS PROTOCOL CHAPTER 18: MODBUS PROTOCOL 18–38 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 313: Revision History
Table A–1: Revision history Part Number Revision Release Date 1601-XXXX-A1 15 July 2011 A.1.2 Changes to the Manual Table A–2: Updates for Manual Revision A1 Section Description General New Manual A1 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL A–1...
Page 314: Ge Digital Energy Warranty Information
24 months from date of shipment from factory. In the event of a failure covered by warranty, GE Digital Energy will undertake to repair or replace the relay providing the warrantor determined that it is defective and it is returned with all transportation charges prepaid to an authorized service centre or the factory.
Page 315: Specifications For Multilink Ml810 Switches, Dc Power At 12, 24, –48, 125 And 250 Vdc Power Input
Specifications for Multilink ML810 Switches, DC Power at 12, 24, –48, 125 and 250 VDC Power input Each Multilink ML810 Managed Switch requires DC power input, at 12, 24, 48, 125 and 250 V DC nominal. The wide range of DC power input types qualifies this product for use in 12, 24, 48, 125 and 250 V DC applications in different industries.
Page 316 250VDC Power Input nominal (range 160 to 300VDC) Standard ML810 DC Power Input Terminal Block : “ -, GND, + ” See also Section 1.0, Technical Specifications, for the ML810 base unit B–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 317: 12, 24, -48, 125 And 250Vdc Power, Theory Of Operation
Switch from incorrect DC input connections. An incorrect polarity connection, for example, will neither affect the Switch, its internal power supply, nor will it blow the fuse in the internal power supply. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL B–3...
Page 318: Applications For Dc Powered Ethernet Switches
CHAPTER B: DC POWER INPUT APPLICATIONS FOR DC POWERED ETHERNET SWITCHES Multilink ML810 Switches are easily installed in a variety of applications where 12, 24, - 48VDC, 125 and 250VDC power is used as the primary power source. The DC power configuration capability provides an Ethernet networking solution utilizing a special power supply in switches with a proven track record.
Page 319: Ml810, 12, 24, -48, 125 And 250Vdc Installation
This section describes the proper connection of the 12, 24, –48, leads to the DC power terminal block on the Multilink ML810 Switch. The DC terminal block on the Multilink ML810 Managed Switch is located on the left front of the unit and is equipped with four (4) screw- down lead posts.
Page 320 4 inches apart, with the first one located within 6 inches of the terminal block. Internal fuses are NOT user-replaceable; please contact GE Service. This product is to be installed ONLY in Restricted Access Areas (dedicated equipment rooms, electrical closets, etc.)
Page 321: Operation
CHAPTER B: DC POWER INPUT DC POWER INPUT Operation Operation of Multilink ML810 Switches with the optional -48VDC, 12VDC, 24VDC, 125VDC or 250 VDC dual-source power input is identical to that of the standard single-source DC- powered models. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 322: Troubleshooting
DC POWER INPUT CHAPTER B: DC POWER INPUT Troubleshooting Please refer to Section 6.0 for troubleshooting B–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 323: Specifications - For Multilink Ml810 Edge Switch
DC Power Connector: First Source: “A+”, “A , 2nd Source “B “, “B+” GND: ground wire connection to the hub chassis screw Input: Two separate sources, each at 160 - 300 VDC MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL C–1...
Page 324 Multilink ML810 -48VDC, 12VDC, 24VDC, 125VDC and 250VDC models with this Dual-Source option are identical to those listed in the Multilink ML810 Edge Switches Installation and User Guide, including Appendix B “Internal DC Power Supply Option”...
Page 325: Multilink Ml810, With Dc Dual-Source Option
The functionality of the Multilink ML810 Switch -48VDC, 12VDC, 24VDC, 125VDC and 250VDC Dual-Source Option units are identical to the AC-powered models. Refer to the main sections of this Installation and User Guide for a detailed description of the Multilink ML810 Switches.
Page 326: Dual-Source Option, Theory Of Operation
This allows the unit to operate whenever DC power is correctly applied to either or both of the two inputs. C–4 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 327: Features And Benefits Of The Dual-Source Design
The Switch will not receive power (and will not work) when both inputs are simultaneously absent or are both incorrectly connected. Dual Source Terminal Block Figure C-1: DC Dual-Source, wiring connections with Dual-Source option. MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL C–5...
Page 328: Installation
This section describes the proper connection of the -48VDC, 12VDC and 24VDC dual source leads to the power terminal block on the Multilink ML810 Switch (shown in Figure above) The terminal block is located on the left front of the unit next to the Alarm terminal block and is equipped with four (4) screw-down lead posts.
Page 329: Ordering Information For Dual Source Power
INTERNAL DC DUAL-SOURCE POWER INPUT OPTION Ordering Information For Dual Source Power To order the optional Dual-Source power supply factory installed, add “Dual-Src-xxxV” as a separate line item following the product model. Example: Multilink ML810-48VDC Dual-SRC-48V MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL C–7...
Page 330 INTERNAL DC DUAL-SOURCE POWER INPUT OPTION CHAPTER C: INTERNAL DC DUAL-SOURCE POWER INPUT OPTION C–8 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
Page 331 1 Phillips head screwdriver • 1/4” Nut Driver • ESD Wrist strap or equivalent ML810x Module Kit: A Multilink ML810-Series Port Module kit comes in an anti-static bag containing: • ML810x module board (1) • Matching module faceplate panel (1) •...
Page 332 Step 2b: Remove Main PCB screws Step 2c: Install stand-offs Step 3a: Locate Main PCB connector Step 3b: Guide module into panel Step 3c: Secure module Step 3d: Module options (dependant on configuration ordered) D–2 MULTILINK ML810 MANAGED EDGE SWITCH – INSTRUCTION MANUAL...
