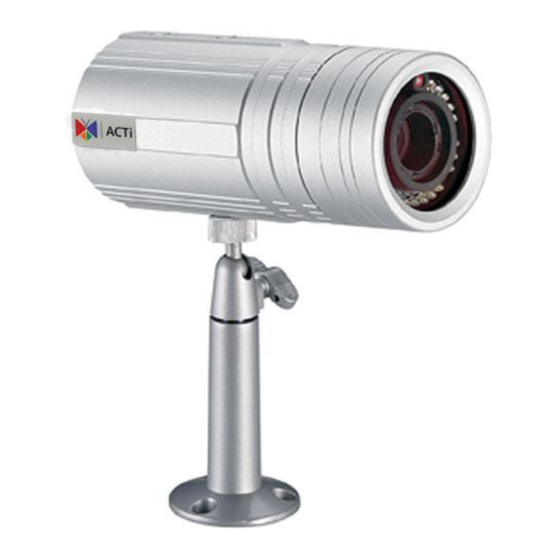

ACTi ACM-1511 series Quick Installation Manual
Megapixel ip ir dn poe bullet camera
(with dc 12v / poe)
Hide thumbs
Also See for ACM-1511 series:
- Hardware user manual (15 pages) ,
- Quick installation manual (12 pages)
Related Manuals for ACTi ACM-1511 series
Summary of Contents for ACTi ACM-1511 series
-
Page 1: Quick Installation Guide
Megapixel IP IR DN PoE Bullet Camera (with DC 12V / PoE) ACM-1511 series Ver. 120312 Quick Installation Guide... -
Page 3: Getting Started
Getting Started PACKAGE CONTENTS ACM-1511 series (DC12V / PoE) The bracket is not included Product CD Terminal Block for Power Warranty Card... -
Page 4: Physical Description
PHYSICAL DESCRIPTION Audio Input / Output The Megapixel IP IR DN PoE Bullet Camera supports audio input and output with earphone jack Power Input If your power input is DC12V , please follow the description on the connector to connect to power. NAME DESCRIPTION DC Power Input... - Page 5 the power cable while continuing to hold the reset button. Step 3: Keep holding the reset button depressed for a while, release the reset button. The unit will start up with factory default settings. Power LED Indicator The LED indicator lights up one time upon power up. It will lights up again when this Megapixel IP IR DN PoE Bullet Camera is fully booted up.
-
Page 6: Basic Connections
BASIC CONNECTIONS Follow the procedures below to connect the Megapixel IP IR DN PoE Bullet Camera to the respective apparatuses. 1. Connect the power adaptor to Megapixel IP IR DN PoE Bullet Camera 2. Connect Megapixel IP IR DN PoE Bullet Camera’s ethernet port to an Ethernet (RJ45 connectors). -
Page 7: Installation Procedure
Installation Procedure 1.4.1 Install the camera onto bracket 1.4.2 Rotate camera box counter-clockwise to remove camera cover... - Page 8 1.4.3 Adjust the focus / zoom - Zoom adjust lever - Focus adjust lever...
-
Page 9: Quick Tour
Quick Tour This section guides you with a quick tour on this Megapixel IP IR DN PoE Bullet Camera. 2.1 Configure this Megapixel IP IR DN PoE Bullet Camera 2.1.1 Make sure network environment Default IP of this Megapixel IP IR DN PoE Bullet Camera is 192.168.0.100. Please make sure this Megapixel IP IR DN PoE Bullet Camera and your PC are on the same network segment before running the installation. - Page 10 NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: This Megapixel IP IR DN PoE Bullet Camera default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click button.
- Page 11 2.1.5 Set the new IP address...
- Page 12 *IP Address : The default IP address is 192.168.0.100. *Subnet Mask : The default subnet mask is 255.255.255.0 *Click button NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since this Megapixel IP IR DN PoE Bullet Camera follows MII standard.
- Page 13 2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system reboot. 1-11...
