UB1.7 UPRIGHT BIKE
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW UPRIGHT BIKE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UB1.7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xterra UB1.7

Summary of Contents for Xterra UB1.7

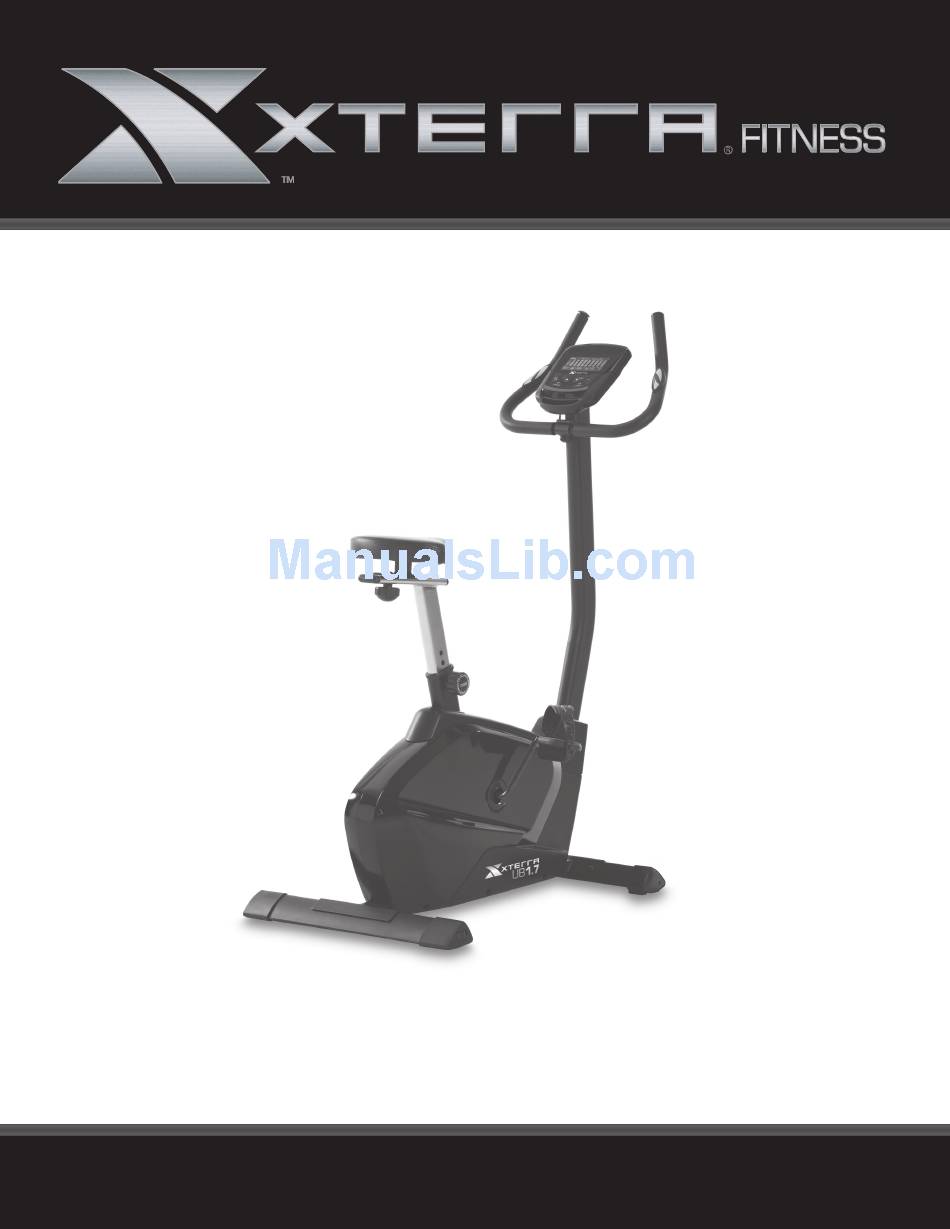

  • Page 1 UB1.7 UPRIGHT BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW UPRIGHT BIKE...

  • Page 2: Table Of Contents

    We appreciate your confidence in XTERRA Fitness and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new fitness bike.

  • Page 3: Product Registration

    Serial Number Register Your Purchase The self-addressed product registration card must be completed in full and returned to XTERRA Fitness. You can also go to www.xterrafitness.com/warrantyreg.html to register online. Power This product uses an external power supply. The power supply must be plugged into the power jack, located on the front of the unit near the stabilizer tube.

  • Page 4: Important Safety Instructions

    Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. UB1.7 Upright Bike...

  • Page 5: Hardware Step

    UB1.7 Assembly Pack Checklist Hardware Step 1 #26. 5/16” x 3/4” #27. 5/16” #28. 5/16” #29. 5/16” Button Head Socket Flat Washer Curved Washer Split Washer Bolt (9 pcs) (8 pcs) (1 pc) (9 pcs) Hardware Step 2 #15. M8 x 30mm #31.

  • Page 6: Ub1.7 Assembly Instructions

    UB1.7 Assembly Instructions Stabilizer Tubes & Console Mast Hardware Step 1 #26. 5/16” x 3/4” Button Head Socket Bolt (9 pcs) #27. 5/16” Flat Washer (8 pcs) #28. 5/16” Curved Washer (1 pc) #29. 5/16” Split Washer (9 pcs) 1. Locate the Console Mast (2) and slide on the Console Mast Cover (48).
  • Page 7 4. Locate the Carriage Bolt (73) and slide through the Seat slider bracket (16) and the seat post (6). Secure the slider with a Flat Washer (74) and the fore/aft adjustment knob (72). UB1.7 Upright Bike...

  • Page 8: Operation Of Your Console

    1 to 6. A score of 1 is an indication of a high level of fitness and a score of 6 indicates poor condition. MODE: Press to switch display from RPM to SPEED, ODO to DIST, WATT to CALORIES. UB1.7 Upright Bike...

  • Page 9: Workout Selection

    Using UP / DOWN KEY you may set the desired time value. Press ENTER KEY to input value. Flashing prompt will move to the next parameter. Continue use of UP / DOWN KEY. Press START / STOP to start workout. UB1.7 Upright Bike...
  • Page 10 Watt control program. Target Heart Rate will be based on Age. When heart rate ex- ± 10-99 ceeds Target Heart Rate, the number of heart rate will flash. Setting Paramters for Target Pulse 60-220 ± Heart Rate. UB1.7 Upright Bike...

  • Page 11: Program Operation

    When any one of the workout parameters counts down to zero the console emits a beep sound and the workout stops automatically. Press START KEY to continue the workout to reach the unfinished workout goals set. UB1.7 Upright Bike...
  • Page 12 Pre-Set Programs (P2 - P13) UB1.7 Upright Bike...

  • Page 13: Heart Rate Control Program

    60 seconds then it will decrease the resistance load 1 level every 10 seconds. When any one of the workout parameters counts down to zero the console emits a beep sound and the workout stops automatically. Press START KEY to continue the workout to reach the unfinished workout goals set. UB1.7 Upright Bike...

  • Page 14: User Program

    Note: When any one of the workout parameters counts down to zero the console emits a beep sound and the workout stops automatically. Press START KEY to continue the workout to reach the unfinished workout goals set. UB1.7 Upright Bike...

  • Page 15: Manufacturer's Limited Warranty

    Effective August 1, 2012 - BIKE LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent...

  • Page 16: Ub17

    3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611 www.xterrafitness.com ©2013 All RIghts Reserved. UB1.7 Owner’s Manual...
