Xterra U15 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

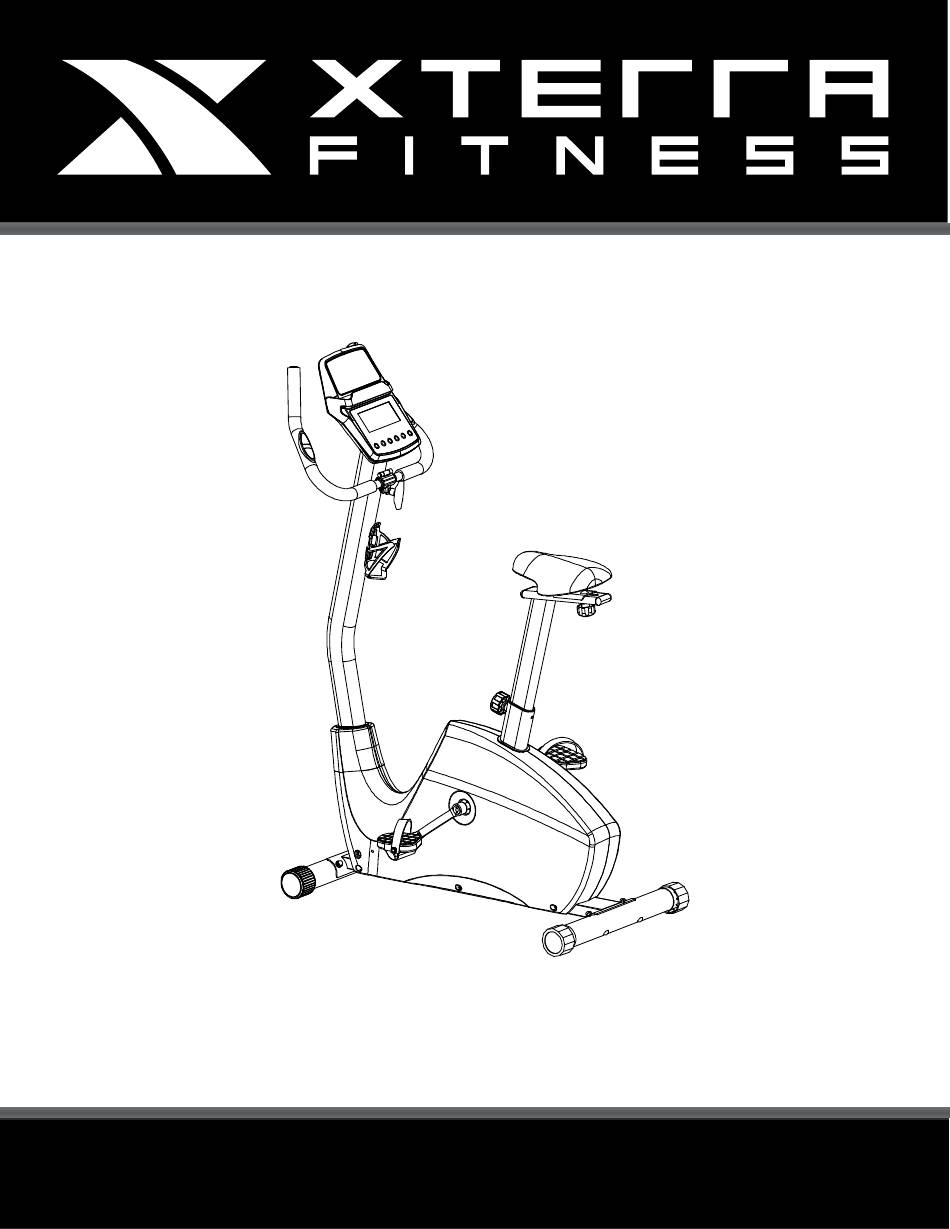

U15
EXERCISE BIKE
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW EXERCISE BIKE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U15 and is the answer not in the manual?

Questions and answers

Related Manuals for Xterra U15

Summary of Contents for Xterra U15

  • Page 1 EXERCISE BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW EXERCISE BIKE...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Instructions ..............2 Important Electrical Instructions .............. 3 Important Operation Instructions ............. 3 U15 Assembly Instructions ..............5 Operation of Your Console ..............9 Program Introduction & Operation............12 LCD Workout Graphics ................. 16 Hand Pulse Grips .................. 19 Exploded View Diagram ................

  • Page 3: Important Safety Instructions

    Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING - To reduce the risk of burns, fire electric shock, or injury to persons: An appliance should never be left unattended when plugged in.

  • Page 4: Important Electrical Instructions

    Important Electrical Instructions WARNING! • NEVER remove any cover without first disconnecting AC power supply. • If A.C. voltage varies by ten percent (10%) or more, the performance of your exercise bike may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.
  • Page 5 U15 Assembly Pack Checklist 28#、Carriage Bolt 27#、Carriage Bolt 31#、Button Head 32#、Phillips Head Screw M8*72MM (4pcs) M10*35MM (1pc) Socket Screw M5*12MM (6pcs) M8*15MM (6pcs) 40#、Flat Washer 37#、Flat Washer 41#、Flat Washer φ10*30*3t (1pc） φ8*16*1.5t (4pcs) φ8*21*2t (4pcs) 49#、Cap Nut M8 17#、Seat Adj. Knob 42#、Cup Washer...

  • Page 6: U15 Assembly Instructions

    U15 Assembly Instructions Front Stabilizer Hardware Step 1 Carriage Bolt M8*72mm (2 pcs) Flat Washer φ8*16*1.5t (2 pcs) #49 Cap Nut M8 (2 pcs) Install the Front Stabilizer Tube (No. 5) onto the Main Frame and secure using 2 Carriage Bolts (No.
  • Page 7 Console Mast Hardware Step 3 #31. Button Head Socket Screw M8*15mm (6 pcs) Flat Washer φ8*21*2t #41. (4 pcs) Cup Washer φ8*21*2t #42. (2 pcs) Put the O-Ring (No.20) onto the Console Mast Cover (No. 24). Run the lower Computer Cable (No.
  • Page 8 Console Hardware Step 5 #32. Phillips Head Screw M5*12mm (4 pcs) 1. Pull the Handpulse wires (No. 68) through the Grommet (No. 21) and then through the hole of the Console mast (No. 2), finally plug the Grommet (No. 21) into the Console mast (No.
  • Page 9 Seat Cushion Hardware Step 7 #56-1. Cap Nut M8*8mm (3 pcs) Flat Washer φ8*φ19*2.0t #56-2. pcs) Secure the Seat Cushion (No. 56) to the Sliding Seat Mount (No. 4) using 3 Cap Nut (No.56-1) and 3 Flat Washer (No.56-2). Seat Hardware Step 8 #17.

  • Page 10: Operation Of Your Console

    Operation Of Your Console U15 console The things you should know before exercise A. Program select and setting value 1. Use the UP or DOWN keys to select program mode and then press ENTER to confirm your exercise mode. 2. At the Manual mode, the computer will use the UP or DOWN keys to set up your exercise TIME, DISTANCE, CALORIES, PULSE.
  • Page 11 Functions And Features 1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
  • Page 12 Key function There are 6 button keys and the function description as follows: 1. START/STOP KEY: ➢ Quick Start function: Allows you to start the computer without selecting a program. Manual workout only. Time automatically begins to count up from zero ➢...

  • Page 13: Program Introduction & Operation

    Program Introduction & Operation Manual Program: Manual P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.
  • Page 14 column by UP/DOWN keys, and they will not change the resistance level stored in the memory. Operations: 1. Use UP/DOWN keys to select the USER program from P14 to P17. 2. Press the ENTER key to enter your workout program. 3.
  • Page 15 6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE. 7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES.
  • Page 16 Error Message E1 (ERROR 1): Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1. Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor’s driver will be cut off immediately and show the E1 on the LCD display.

  • Page 17: Lcd Workout Graphics

    LCD Workout Graphics ➢ PRESET PROGRAM PROFILES PROGRAM 1 PROGRAM 2 PROGRAM 3 MANUAL STEPS HILL PROGRAM 4 PROGRAM 5 PROGRAM 6 ROLLING VALLEY FAT BURN PROGRAM 7 PROGRAM 8 PROGRAM 9 RAMP MOUNTAIN INTERVALS PROGRAM 10 PROGRAM 11 PROGRAM 12 RANDOM PLATEAU FARTLEK...
  • Page 18 PROGRAM 15 USER 2 PROGRAM 16 USER 3 PROGRAM 17 USER 4 ➢ HEART RATE PROGRAM PROFILES: PROGRAM 18 55% H.R.C. PROGRAM 19 65% H.R.C. PROGRAM 20 75% H.R.C.
  • Page 19 PROGRAM 21 85% H.R.C. PROGRAM 22 TARGET H.R.C. ➢ BODY FAT TEST PROGRAMS: BODY FAT (STOP MODE) (START MODE) PROGRAM 23 One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT: Workout Time: 40 minutes Workout Time: 40 minutes Workout time: 20 minutes Workout Time: 40 minutes Workout Time: 40 minutes...

  • Page 20: Hand Pulse Grips

    Hand Pulse Grips Your U15 Exercise bike has built-in hand pulse grips located on the handles next to either side of the seat. To monitor your heart rate, simply grasp both hand pulse grips ensuring steady contact is made between your hands and the metal contact pads for at least 10 seconds.

  • Page 21: Exploded View Diagram

    EXPLODED VIEW DIAGRAM...

  • Page 22: Parts List

    PARTS LIST Item Front Main Frame Usage Main Frame Console Mast Seat Carriage Assembly Sliding Seat Mount Front Stabilizer Rear Stabilizer Idler Wheel Assembly Drive Pully Handle Bar Crank Arm - L Crank Arm - R Bearing φ35*17*10mml Slider Sleeve Bearing Pull Pin HandleBar Adj.
  • Page 23 Cap Nut M8 L Allen Wrench 5mm Philips Head Screwdriver & Wrench 13 14 15 Flywheel Drive Belt Pedal - L Pedal - R Seat Cushion 56-1 Cap Nut M8*8mm 56-2 Flat Washer φ8*φ19*2.0t Drink Bottle Holder Motor Cable 400mml 5.5"...
