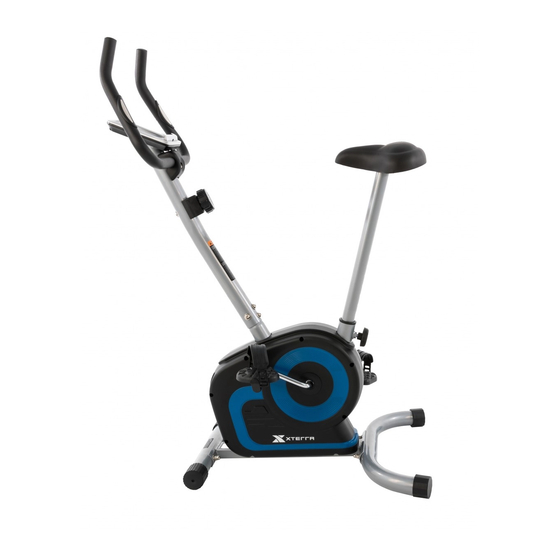

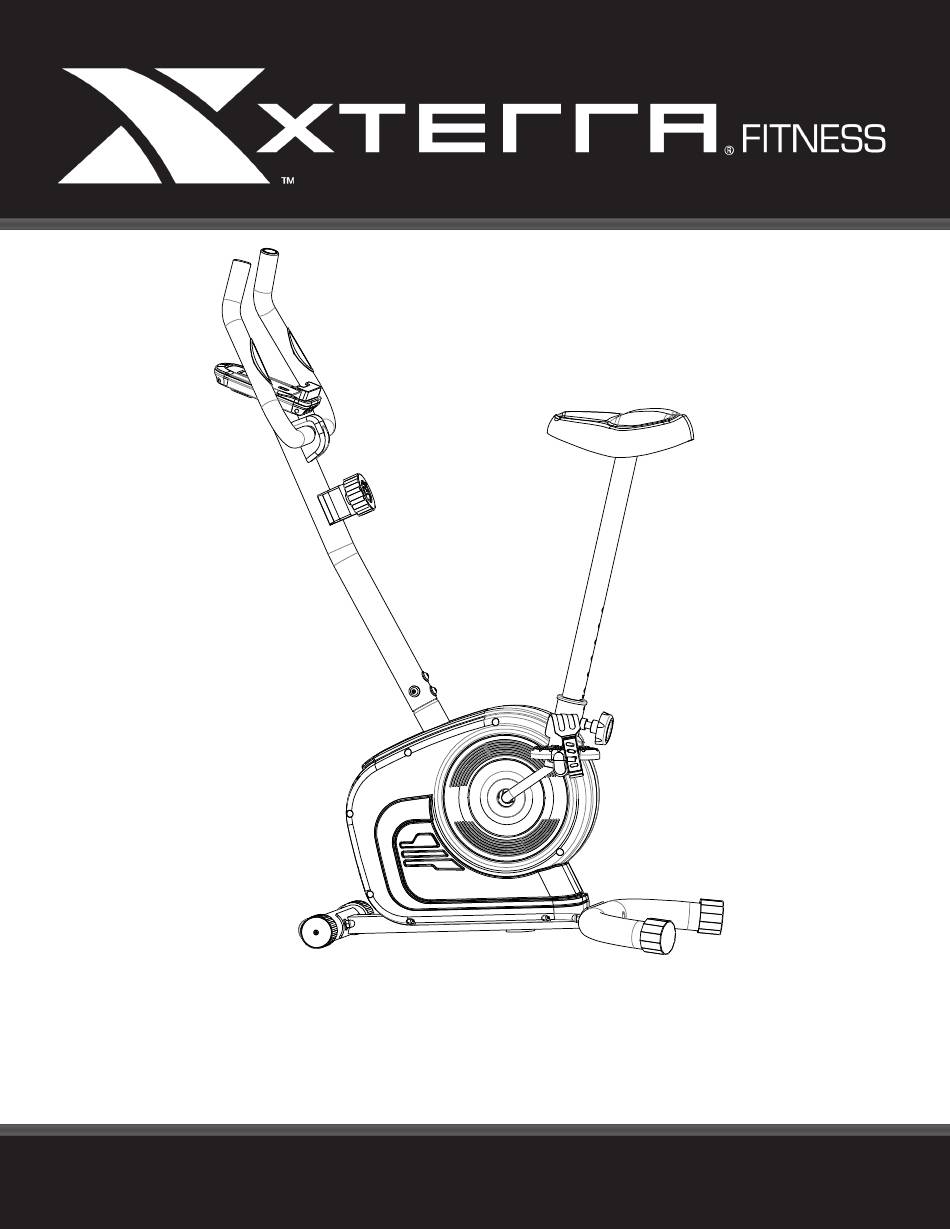

- Page 1 UB120 Upright Bike OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW UPRIGHT BIKE.
-
Page 3: Table Of Contents
Table Of Contents Product Registration Important Safety Instructions Important Operation Instructions Exploded View and Parts Lists UB120 Assembly Instructions Final Considerations Exploring Your New Bike Troubleshooting Manufacturer’s Limited Warranty WARRANTY COMPLIANCE THIS UPRIGHT BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE APPLICATION. -
Page 4: Product Registration
XTERRA Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. -
Page 5: Important Safety Instructions
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov SAVE THESE INSTRUCTIONS - THINK SAFETY! UB120 UPRIGHT BIKE... -
Page 6: Important Operation Instructions
6. Proper installation and regular maintenance are required to ensure user’s safety. Maintenance is the sole responsibility of the owner. UB120 UPRIGHT BIKE... -
Page 7: Exploded View And Parts Lists
UB120 Exploded View Diagram UB120 UPRIGHT BIKE... - Page 8 UB120 Parts List Part Serial No. Description Q’TY UB120-BK1036-PART01 Main Frame UB120-BK1036-PART02 Front Post UB120-BK1036-PART03 Seat Post UB120-BK1036-PART04 Handlebar UB120-BK1036-PART05 Front Stabilizer UB120-BK1036-PART06 Rear Stabilizer UB120-BK1036-PART07 Extension Sensor Wire UB120-BK1036-PART08 Crank w/ Pulley UB120-BK1036-PART09 Carriage Bolt M8x60L UB120-BK1036-PART10 Allen Screw M8x30L...
- Page 9 UB120 Parts List UB120-BK1036-PART34 Transportation Wheel UB120-BK1036-PART35 Leveling End Cap UB120-BK1036-PART36 Flywheel Assembly UB120-BK1036-PART37 Crossed Head Self-Tapping Screw st4.2x12L UB120-BK1036-PART38 Curved Washer φ5.5xφ20x1.5t UB120-BK1036-PART39 Crossed Head Self-Tapping Screw ST3.2x12L UB120-BK1036-PART40 Crossed Head Self-Tapping Screw st4.2x20L UB120-BK1036-PART41 Foam Grip For Handlebar...
-
Page 10: Ub120 Assembly Instructions
UB120 Assembly Pack Checklist #55. (1 pc) #26. #10. (1 pc) M8 x 30L (2 pcs) #54. #19. (1 pc) 8.5 x 20 x 1.5t (4 pcs) #22. (4 pcs) #25. #09. (1 pc) M8 x 60L (4 pcs) #21. - Page 11 UB120 Assembly Pack Checklist No. 01 No. 02 No. 03 No. 04 No. 05 No. 06 No. 14 No. 18 No. 23/24 PART NO. DESCRIPTION Q’TY Main Frame Front post Seat post Handlebar Front stabilizer Rear stabilizer Seat Console 23/24 Pedal L&...
- Page 12 Bolts (No. 09), 2 Arc Washers (No. 19) and 2 Domed Nuts (No. 22). 2. Attach Rear Stabilizer (No. 06) to Main Frame (No. 01) using with 2 Carriage Bolts (No. 09), 2 Arc Washers (No. 19) and 2 Domed Nuts (No. 22). UB120 UPRIGHT BIKE...
- Page 13 3. Connect Extension Sensor Wire (No. 07) with Sensor Wire (No. 12). 4. Insert the Front Post (No. 02) into the Main Frame (No. 01) and secure with 4 Allen Screws (No. 11) and 4 Arc Washers (No. 19). UB120 UPRIGHT BIKE...
- Page 14 15) and 3 Nylon Locknuts (No. 17) which had been pre-assembled on the back of Seat (No. 14). 3. Insert Seat Post (No. 03) into the Main Frame (No. 01). Line up the holes and fasten the Seat Post (No. 03) in right position with Club Knob (No. 26). UB120 UPRIGHT BIKE...
- Page 15 3. Connect the Right Pedal (No. 24) to the right side of Crank w/ Pulley (No. 08), twist it clockwise to tighten. NOTE: The straps should face outwards and the pedals should be mounted to their respective sides to be functional. UB120 UPRIGHT BIKE...
- Page 16 Handlebars (2 pcs) M8 x 30L (2 pcs) Allen Key 1. Connect the Handlebar (No. 04) to Front Post (No. 02), secure with 2 Spring Washers (No. 21) and 2 Allen Screws (No. 10). UB120 UPRIGHT BIKE...
- Page 17 Crossed Head Screws (No. 16) to the Front Post (No. 02). 4. Press the Cover for Handlebar (No. 25) into the handlebar. *NOTE: CHECK TO ENSURE THAT ALL BOLTS AND NUTS ARE TIGHTENED BEFORE USING THE MACHINE. UB120 UPRIGHT BIKE...
-
Page 18: Final Considerations
• Use the Tension Knob (No. 20) on the Front Post (No. 2) to adjust the resistance. Level 1 is the minimum resistance. Transporting the Bike • There is a set of transport wheels on the Front Stabilizer. To move the bike carefully tilt the handlebar forwards and roll away. UB120 UPRIGHT BIKE... -
Page 19: Exploring Your New Bike
0°C ~ +40°C, 32˚F ~ 104˚F STORAGE TEMPERATURE -10°C ~ +60°C, 14˚F ~ 140˚F The console turns on when you start pedaling or when you press a key. The console turns off automatically after 4 minutes of inactivity. UB120 UPRIGHT BIKE... - Page 20 Please note that due to contact delay, the heart rate will be higher than the actual heart rate during the first 2 ~ 3 seconds of measurement, then will return to normal level. The measurement value shouldn’t be regarded as the basis of medical treatment. UB120 UPRIGHT BIKE...
-
Page 21: Troubleshooting
Upright. • Check that the batteries are correctly positioned and are in proper contact with the battery springs. • The batteries in the computer may be dead. Remove and replace with new batteries. UB120 UPRIGHT BIKE... -
Page 22: Manufacturer's Limited Warranty
Effective September 11, 2019 - UB120 Upright Bike LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Upright Bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 23 UB120 UPRIGHT BIKE...
- Page 24 3000 Nestle Road Jonesboro, AR 72401 - Phone: 870-336-4286 - Fax: 870-935-7611 www.xterrafitness.com ©2019 All Rights Reserved. UB120 Owner’s Manual UB120 UPRIGHT BIKE...
