Summary of Contents for Xterra SB440r

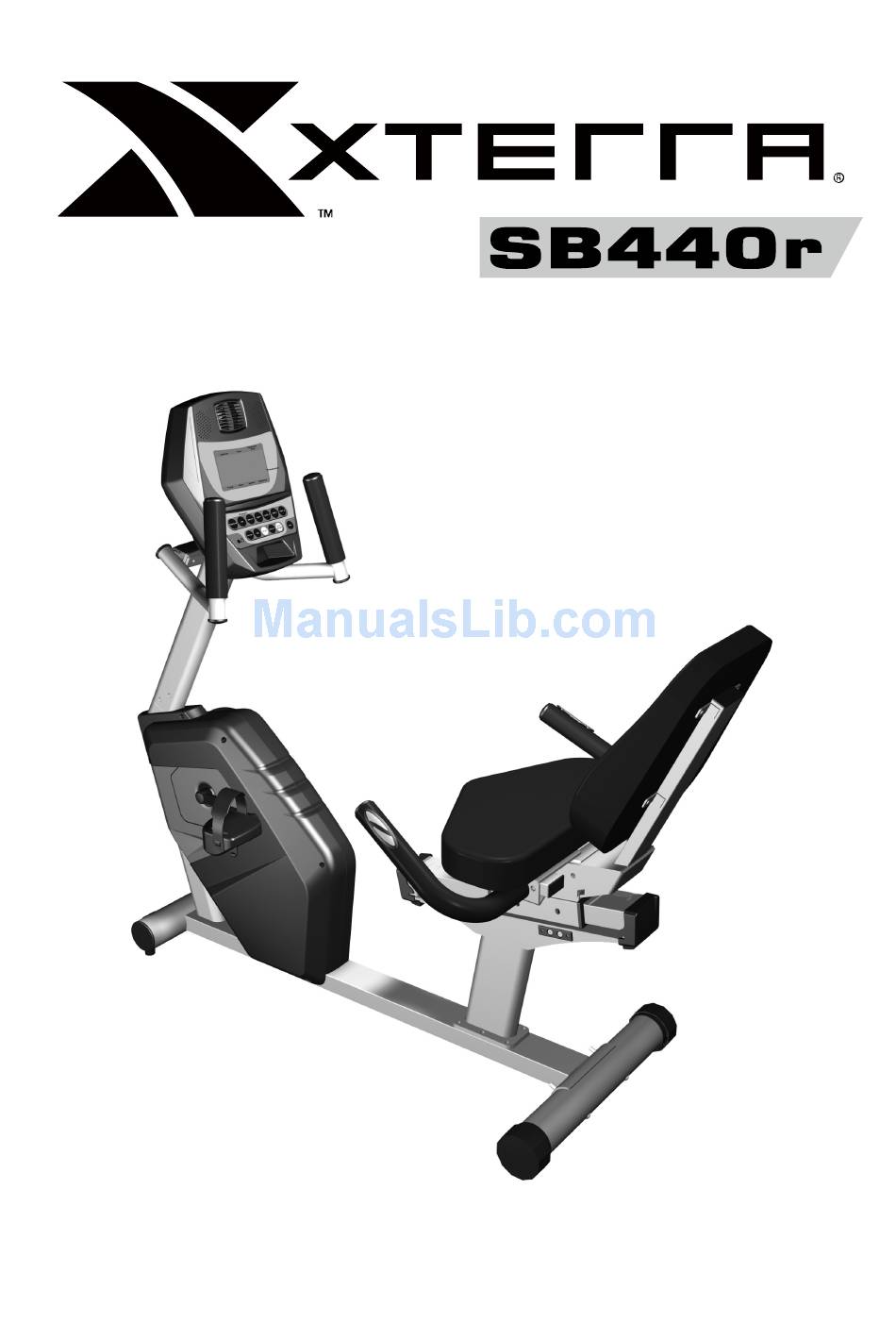

  • Page 1 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Product Registration…………………………………………………………………………..2 Important Safety Instructions…………………………………………………………………3 Important Electrical Information………………………………………………………………4 Important Operation Instructions……………………………………………………………..4 Assembly Instructions………………………………………………………………………….5 Features………………………………………………………………………………………..13 Operation of Your New Bike……………………………………………………………..…..14 Maintenance……………………………………………………………………………………20 Manufacturer’s Limited Warranty…………………………………………………………….21 Serial number sticker location Xterra SB440r Bike...

  • Page 3: Product Registration

    We appreciate your confidence in Xterra and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new bike.

  • Page 4: Important Safety Instructions

    Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on ■ your bike. Quality athletic shoes are recommended to avoid leg fatigue. SAVE THESE INSTRUCTIONS - THINK SAFETY! Xterra SB440r Bike...

  • Page 5: Important Electrical Information

    ■ supply that could damage bike components. Use caution while participating in other activities while using your bike such as watching ■ television, reading, etc. These distractions may cause you to lose balance, resulting in serious injury. Xterra SB440r Bike...

  • Page 6: Assembly Instructions

    Phillips Head Screw (4pcs) Hex Head Bolt (4pcs) #96 - 3/8" × 3-1/2" Carriage Bolt (2pcs) Step 2 #71 - 3/8" × 19mm #80. 3/8" Flat Washer (4pcs) Nyloc Nut (4pcs) #100 - 3/8"× 3" Hex Head Bolt (4pcs) Xterra SB440r Bike...
  • Page 7 Button Head Socket Bolt (6pcs) Step 4 #73 - 5/16” × #70 - 5/16" Split Washer (2pcs) Flat Washer (2pcs) #95 - 5/16" × 3/4" × #81 - M5 12mm Button Head Socket Bolt (2pcs) Phillips Head Screw (4pcs) Xterra SB440r Bike...
  • Page 8 Tools #105 - Phillips Screw Driver (1 pc) #106 - M5 Allen Wrench (1pc) #104 - 14/15mm Wrench (1pc) #103 - 12/14mm Wrench (1pc) Xterra SB440r Bike...
  • Page 9 Seat carriage position as shipped. Push handle down, Shipping position Slide seat carriage forward Seat carriage position for assembly. Seat carriage position for assembly, a few inches from tube end Xterra SB440r Bike...
  • Page 10 • Secure the seat carriage assembly (4 &14) to the seat post with four 5/16” x 1-1/4” bolts (90). Make sure these bolts are very tight. Assemble the plastic end caps (42) to the seat carriage with four M5 x 12mm screws (81). Xterra SB440r Bike...
  • Page 11 (71) and 3/8” nuts (80). Be careful that the wires do not get pinched while assembling the handlebars. The wires for the pulse sensors (111 & 112) will be connected in step 4; just leave them hanging for now. Xterra SB440r Bike...
  • Page 12 Secure the mast with six 5/16” x 3/4” bolts, four 5/16” Washers (70) on the side bolts and two 5/16” curved washers (102) on the two front bolts. Make sure to start all six bolts first before tightening all the way. Xterra SB440r Bike...
  • Page 13 The right side pedal (36) is a normal thread so tighten it clockwise. Make sure the pedals are as tight as you can possibly get them. It may be necessary to re-tighten them again after a few hours of use. Xterra SB440r Bike...

  • Page 14: Features

    Q factor. Xterra has designed our pedal system so the Q factor is the smallest in the industry, but we did not stop there. We have also custom designed and tooled a new pedal that provides a two degree inward tilt to compensate for the Q factor not being perfect.

  • Page 15: Operation Of Your New Bike

    The odometer will remain displayed for only a few seconds then the console will go to the start up display. The dot matrix display will be scrolling through the different workout profiles of the programs and operating instructions. You may now begin to use the console. Xterra SB440r Bike...

  • Page 16: Console Operation

    Heart Rate control program to ensure the correct settings are entered in the program. Entering your Weight aides in calculating a more correct Calorie reading; although we cannot provide an exact calorie count we do want to be as close as possible. Xterra SB440r Bike...
  • Page 17 8. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. Xterra SB440r Bike...
  • Page 18 The Xtreme program is designed to increase muscular strength in your lower body with extreme resistance. This program will steadily increase in resistance to a high level and then keeps you there. This is designed to strengthen and tone your legs and glutes. Xterra SB440r Bike...
  • Page 19 During the program you will be able to dot matrix window. 9. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. Xterra SB440r Bike...
  • Page 20 Up or Down key. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display Xterra SB440r Bike...

  • Page 21: Maintenance

    Units (Set to English or Metric display readings) iii. Bike or Elliptical (changes settings so the console can be used on an Xterra bike or elliptical) iv. Sleep mode Turns on/off sleep mode. v. Motor test (continually runs the tensioning gear motor) vi.

  • Page 22: Manufacturer's Limited Warranty

    Effective July 15, 2009 BIKE LIMITED WARRANTY Xterra Fitness Inc. warrants all its home use bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. Xterra’s responsibilities include providing new or remanufactured parts, at Xterra’s option, and technical support to our independent dealers and servicing organizations.
