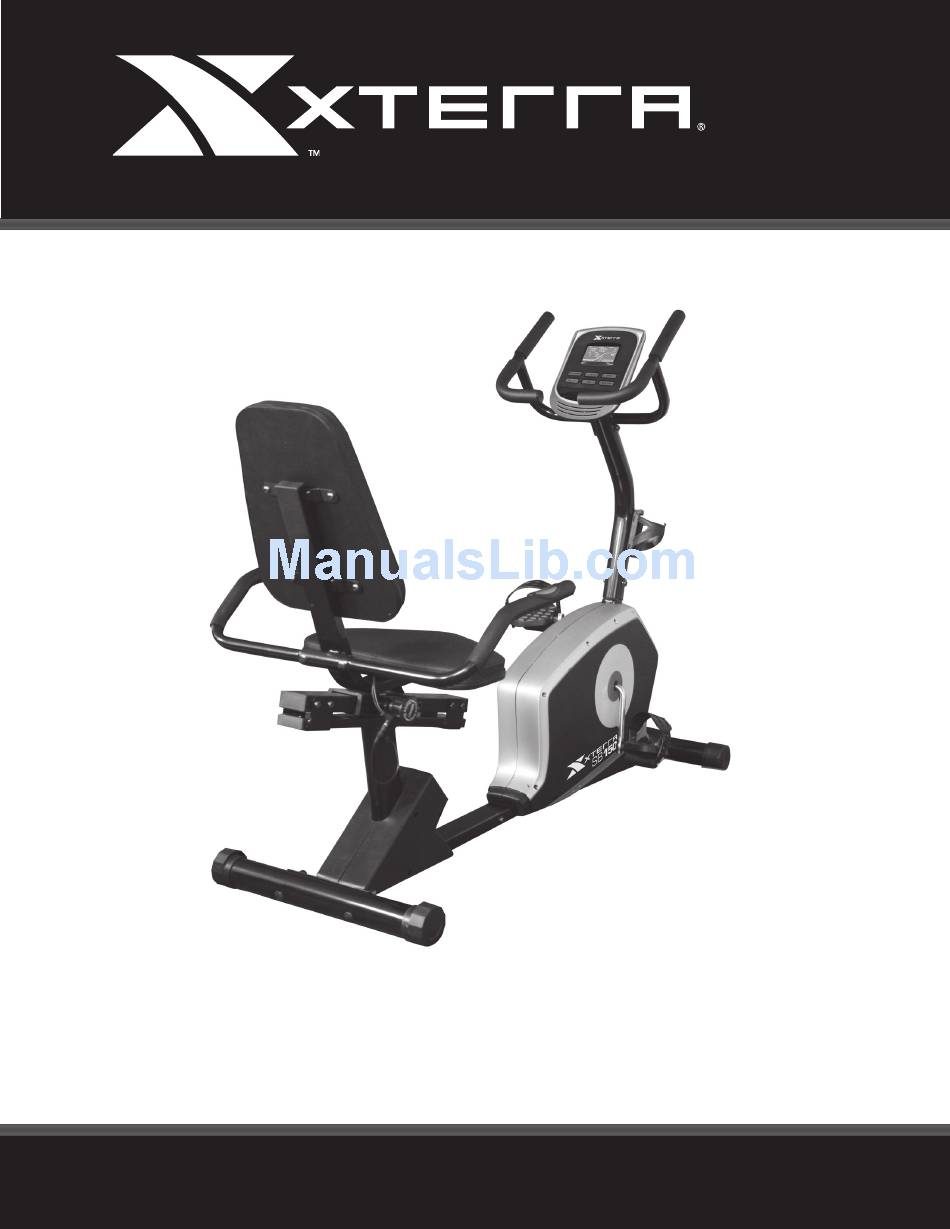

- Page 1 FITNESS SB150 RECUMBENT BIKE OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW RECUMBENT...
-
Page 2: Table Of Contents
Congratulations On Your New Bike and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality fitness bike from XTERRA Fitness. Your new fitness bike has been manufactured by one of the leading fitness manufacturers in the world. -
Page 3: Product Registration
Serial Number Register Your Purchase The self-addressed product registration card must be completed in full and returned to XTERRA Fitness. You can also go to www.xterrafitness.com/warrantyreg.html to register online. Power This product uses an external power supply. The adapter must be plugged into the power jack, located on the front of the unit near the stabilizer tube. -
Page 4: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. SB150 Recumbent Bike... -
Page 5: Before You Begin
Before you begin Thank you for selecting our revolutionary Xterra SB150 Fitness Bike. Cycling is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. Our fitness bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable. -
Page 6: Sb150 Assembly Instructions
SB150 Pre-Assembly Check List PART NO. DESCRIPTION Q’TY Main frame Front Stabilizer Rear Stabilizer Front post Computer Stationary handlebar R Stationary handlebar L Rear handlebar 36/37 Right/Left pedal Support Tube Sliding Tube Seat support bracket Back cushion Seat cusjion Bottle holder... - Page 7 SB150 Assembly Pack Checklist Part No. Description Q’ty Allen Screw M8*75 Spring Washer Curved Washer Φ8*Φ20*1.5 Allen Screw M8*16 Carriage Bolt M10*75 Curved Washer Φ10*Φ22*1.5 Carriage Bolt M8*40 Domed Nut M8 Domed Nut M10 Flat Washer Φ17*Φ8.5 Leveling Pad Quick Release Knob...
-
Page 8: Main Frame
SB150 Assembly Instructions Front Stabilizer Hardware Step 1 2 Allen Screws (#2) 2 Curved Washers (#5) 2 Spring Washers (#4) 1. Attach the front stabilizer (3) to the main frame (1), securing with two allen screws (2), two spring washers (4) and two curved washers (5). -
Page 9: Rear Stabilizer
(38). Attach the leveling pad (39) to the bottom of main frame (1). 2. Attach rear stabilizer (6) to the support tube (40) and tighten with 2 sets of carriage bolt (23), curved washer (24) and domed nut (31). Tip: Avoid pinching the Extension Wires SB150 Recumbent Bike... -
Page 10: Front Post
SB150 Assembly Instructions Console and Upright Hardware Step 3 8 Curved Washers (#5) 8 Allen Screws (#21) 1. Connect the upper extension computer wire (19) to the lower computer wire (32). 2. Connect the front extension hand pulse wire (18) to the middle extension hand pulse wire (33). -
Page 11: Seat Assembly
(42). 2. Attach seat cushion (45) to the seat support bracket (43). Secure using four allen screws (21). 3. Attach the sliding tube (41) to the support tube (40). Secure using eight allen screws (21). SB150 Recumbent Bike... -
Page 12: Rear Handlebar
SB150 Assembly Instructions Rear Handlebar Assembly Hardware Step 5 4 Allen Screws (#21) 2 Carriage Bolts (#28) 2 Curved Washers (#5) 2 Domed Nuts (#29) 1. Attach back cushion (44) to the seat support bracket (43). Secure using four allen screws (21). -
Page 13: Support Tube
2. Attach the left rear support cover (47) to the left side of the support tube (40). Secure using two self tapping screws (53). 3. Attach the right rear support cover (48) to the right side of the support tube (40). Secure using three self tapping screws (53). SB150 Recumbent Bike... - Page 14 SB150 Assembly Instructions Power Adapter and MP3 1. To listen to an MP3 during your workout, connect the MP3 with the computer (10) by using the audio wire (87) 2. Plug adapter into the power receptacle. SB150 Recumbent Bike...
-
Page 15: Operation Of Your Console
Press and hold for four seconds to reset all values to zero when the unit is stopped. Body Fat: Press to have your body fat measurement. Pulse RECOVERY: Press to have the recovery grade of F1 to F6 SB150 Recumbent Bike... - Page 16 Note: If no pulse signal input then the computer will show “P” on the PULSE window. If the computer shows “ERR” on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached wel SB150 Recumbent Bike...
- Page 17 The monitor will turn on automatically by pressing any key or when you start to pedal. The monitor will shut off automatically if no signal is detected for four minutes and will keep all function values. You may press Start button or start to pedal to have the computer resume. SB150 Recumbent Bike...
-
Page 18: Program Operation
Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in SB150 Recumbent Bike... -
Page 19: Heart Rate Control Program
4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120. 5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press SB150 Recumbent Bike... - Page 20 Then press the START/STOP key again to begin body fat measurement. 8. After finishing your measurement, the computer will show the values of FAT PERCENT on the LCD display. 9. Press START/STOP key to begin exercise. SB150 Recumbent Bike...
- Page 21 SB150 Recumbent Bike...
- Page 22 SB150 Recumbent Bike...
-
Page 23: Quick Release Knob
Screen will beep and turn on. Press the enter button until the miles or km is flashing. Press the up button to change to km Press enter button until the monitor resets. Your cycle is now in km. SB150 Recumbent Bike... -
Page 24: Trouble Shooting
EEPROM has problem (EEPROM cannot interface with the Replace monitor is installed incorrect) IC chip. The gear motor cannot read the signal change from the level one Replace gear motor within 4 seconds after press the start button. SB150 Recumbent Bike... - Page 25 • Should a part become defective, replace it immediately. Do not allow use of the equipment until it has been repaired. Cleaning A damp cloth is sufficient to clean most surfaces of this unit. Be careful not to drip water on the monitor. A mild liquid soap may be added if needed. SB150 Recumbent Bike...
-
Page 26: Manufacturer's Limited Warranty
Effective May 26, 2016 - BIKE LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent... - Page 27 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All RIghts Reserved. SB150 Owner’s Manual SB150 Recumbent Bike...
