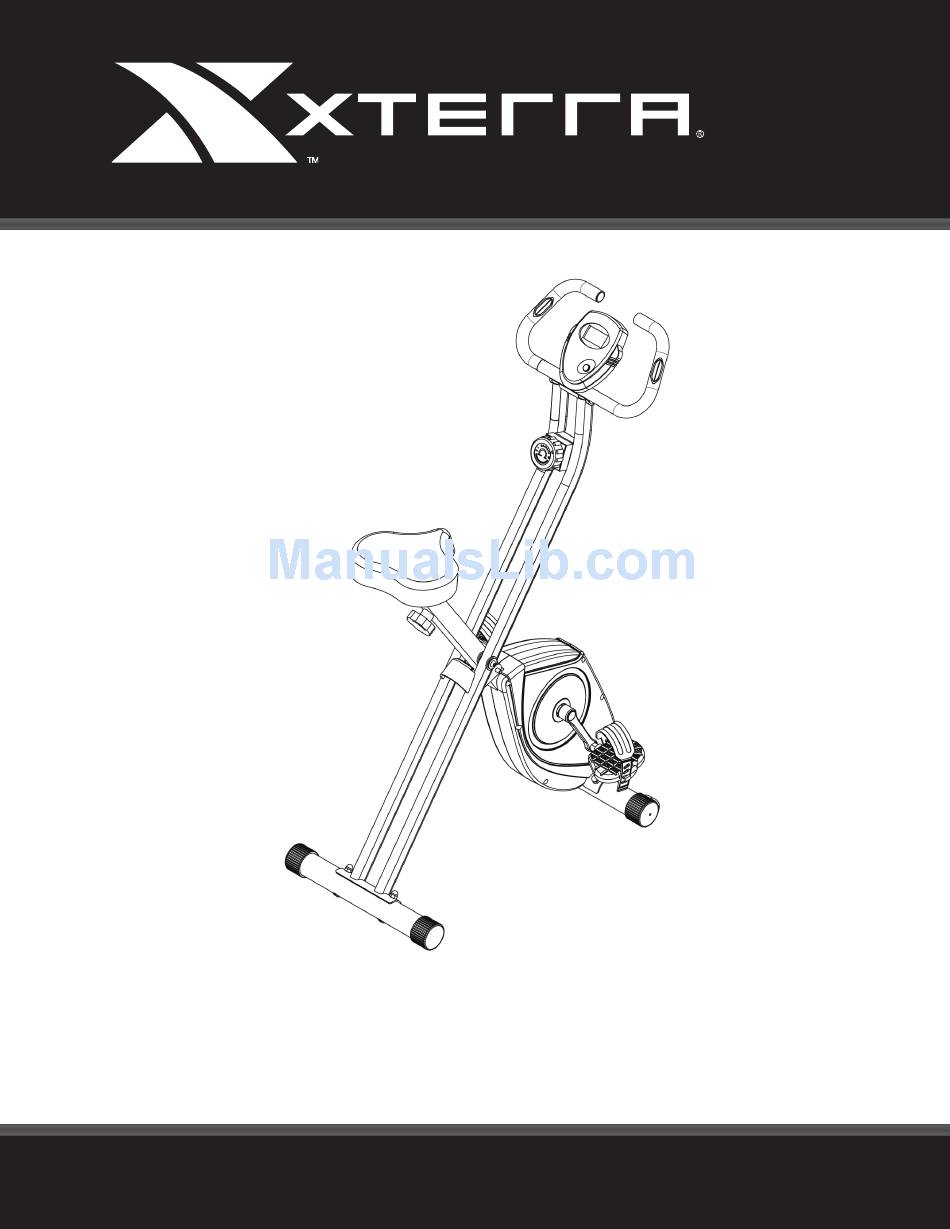

- Page 1 FITNESS FB150 Folding Bike OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW FOLDING BIKE...
-
Page 2: Table Of Contents
Congratulations On Your New Folding Bike and Welcome to the XTERRA Fitness Family! Thank you for your purchase of this quality Folding Bike from XTERRA Fitness. Your new Folding Bike has been manufactured by one of the leading fitness manufacturers in the world. -
Page 3: Product Registration
Manufacture’s One-Year Limited Warranty Your Xterra Folding Bike is warranted for one year from the date of purchase against defects in material when used for the purpose intended, under normal conditions and provided it receives proper care. Any part found defective or missing will be sent at no cost when returned in accordance with the terms of this warranty. -
Page 4: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! CAUTION!! Please be careful when unpacking the carton. FB150 Folding Bike... -
Page 5: Before You Begin
Bike provides an impressive selection of features designed to make your workouts at home more effective and enjoyable. For your benefit, read this manual carefully before you use the FB150 Fitness Folding Bike. To help us assist you, note the product model number and serial number before contacting us. Before reading further, please familiarize yourself with the parts that are labeled in the drawing below. -
Page 6: Fb150 Assembly Instructions
FB150 Assembly Pack Checklist Part No. Description Q’TY Main Frame Seat Support Tube Handlebar Tube Front Stabilizer Rear Stabilizer Seat Computer Pedal (L/R) Hardware Bag Manual FB150 Folding Bike... - Page 7 FB150 Assembly Pack Checklist Part No Description Q’ty Club Knob Allen Key Hex Head Wrench Note: Above parts are all needed to assemble this machine. Before you start to assemble, please check the hardware packing to make sure they are included.
- Page 8 FB150 Assembly Instructions Front Stabilizer and Rear Stabilizer Hardware Step 1 Pre-assembled on Main Frame: 1 Lock pin (#11) Pre-assembled on Front & Rear Stabilizer: 4 Curved washers (#13) 4 Domed nuts (#14) 1. Pull out the lock pin (11) from the main frame (01) and adjust main frame (01) to the correct position then insert lock pin (11) to tighten the main frame (01).
- Page 9 (15L&15R). The right pedal is on the right hand side of the cycle as you sit on it. 2. Note that the right pedal (09R) should be threaded on clockwise and the left pedal (09L) on counter-clockwise. FB150 Folding Bike...
- Page 10 (07).Attach the seat (07) to the seat post tube (03), tighten with3 flat washers (16) and 3 nylon nuts (17). 2. Insert the seat support tube (3) to the main frame (01), fasten with a club knob (10). FB150 Folding Bike...
- Page 11 Handlebar Hardware Step 4 Pre-assembled on main frame: 2 Allen Screws (#12) 1. Remove 2 allen screws (12) from main frame (01).Attach the handlebar (04) to main frame (01) tighten with 2 allen screws (12). FB150 Folding Bike...
- Page 12 Console 1. Insert the computer wire (8) into the handlebar (4), connect the middle sensor wire (19) with the computer (08). 2. Plug hand pulse wire (18) into the back of computer (8). FB150 Folding Bike...
-
Page 13: Operation Of Your Console
3. SPEED: Display current speed. The maximum value is 999.9 M/H 4. DISTANCE: Count the distance from exercise start to end. The maximum value is 99.99 MILE. 5. CALORIE: Count the total calories from exercise start to end. The maximum value is 999. FB150 Folding Bike... - Page 14 • Should a part become defective, replace it immediately. Do not allow use of the equipment until it has been repaired. Cleaning A damp cloth is sufficient to clean most surfaces of this unit. Be careful not to drip water on the monitor. A mild liquid soap may be added if needed. FB150 Folding Bike...
-
Page 15: Manufacturer's Limited Warranty
Effective August 4, 2016 - Folding Bike LIMITED WARRANTY XTERRA Fitness Inc. warrants all its home use Folding Bike parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’... - Page 16 3000 Nestle Road Jonesboro, AR 72401 - Phone:870-333-5500 - Fax:870-935-7611 www.xterrafitness.com ©2016 All RIghts Reserved. FB150 Owner’s Manual...
Need help?
Do you have a question about the FB150 and is the answer not in the manual?
Questions and answers
My xterra tension knob sticks sometimes
To fix a sticking tension knob on an Xterra FB150, remove the casing and check if the spring has come off during shipping or use. If the spring is stuck between the wheel and magnetic strip, retrieve it and reattach it to the correct place on the metal wire that the adjuster moves. Once properly positioned, the tension knob should function correctly. Consider securing the spring with glue to prevent it from coming loose again.
