Kichler
Lighting
®
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
KHA9090103
Designed to coordinate with a popular Kichler Lighting collection.
Includes our new
CoolTouch
Control System
TM
Looks permanent, but goes wherever you go!
U.S. Patent Pending

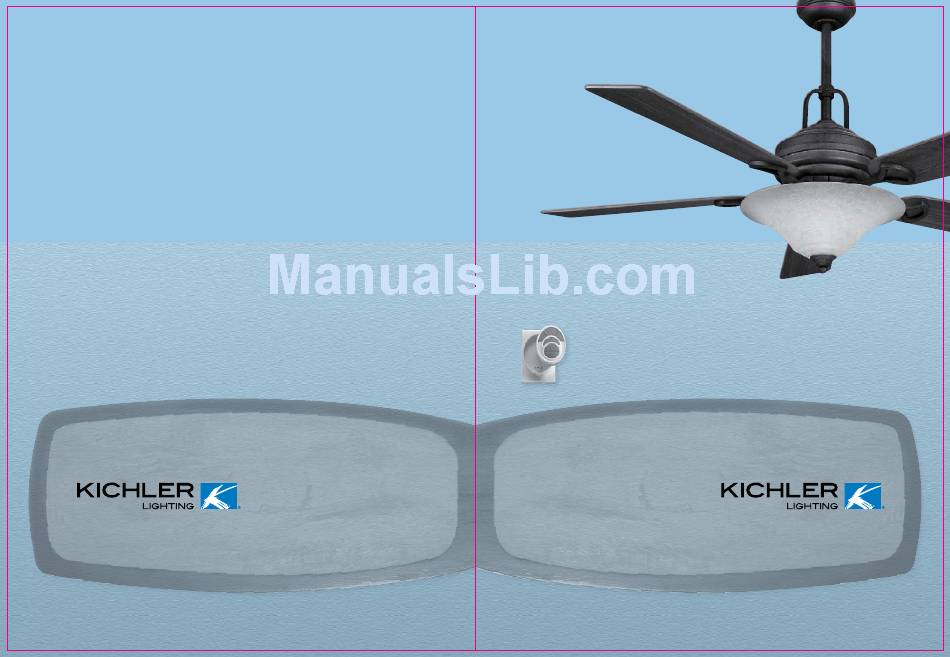

Instruction Manual
Meredith
TM
A Kichler
®
Décor
™
ceiling fan
Advertisement
Table of Contents
Related Manuals for Kichler Lighting Meredith
Summary of Contents for Kichler Lighting Meredith
- Page 1 Meredith A Kichler ® Décor ™ ceiling fan Designed to coordinate with a popular Kichler Lighting collection. Includes our new CoolTouch Control System Looks permanent, but goes wherever you go! U.S. Patent Pending Kichler Lighting ® 7711 East Pleasant Valley Road P.O.
-
Page 2: Safety Rules
1. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before cleaning and maintenace, or attempting Installation. 9. -
Page 3: Tools And Materials Required
Meredith 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Slot screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (5) Mounting bracket... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL ( CUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. -
Page 5: Hanging The Fan
Meredith 5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Screw Step 1. Remove the fan motor and housing shipping block assembly from the protective plastic bag and take the lower styrofoam packing pad out of the carton. - Page 6 Step 6. Slip the coupling cover, decorative arm, canopy cover and canopy onto the downrod. Reinstall the hanger ball onto the Downrod downrod and make sure the cross pin is in place and the set screw on hanger ball is Canopy tight.
-
Page 7: Installation Of Safety Support
Meredith 6. INSTALLATION OF SAFETY SUPPORT Flat Washer Wood Screw Support Brace ( For Canadian Installation ONLY ) Spring Washer Outlet Box A safety support cable is provided to help prevent Ceiling the ceiling fan from failing, please install it as follows. - Page 8 Step 3. Remote Receiver to Outlet Box Electri- cal Connections: Connect the black Outlex box (hot) wire from the ceiling to the black wire marked "AC in L" from the receiver. Connect Black (hot) White (neutral) the white(neutral) wire from the ceiling to the Green or bare white wire marked "AC in N"...
-
Page 9: Attaching The Fan Blades
Meredith 9. ATTACHING THE FAN BLADES Step 1 Attach the blade to the blade bracket Screw Metal washer using the screws, washers and fiber washers Silicon washer as shown in Figure 16. Start screw into bracket. Repeat for the two remaining screws. -
Page 10: Installing The Switch Housing
11. INSTALLING THE SWITCH HOUSING NOTE: Before continuing, make sure the power is disconnected by turning off the circuit breaker or removing the fuse at the circuit box. Mounting plate Step 1. Loosen the 3 screws on the switch house mounting plate. Connection plug Step 2. - Page 11 Meredith Step 4. Connect the black wire connectors from the light fixture and switch housing by pushing them together. Follow the same procedure with the white wire connectors. Connection plug Step 5. The square plastic wiring connector from the ceiling fan and the light fixture will Light kit only fit together one way.
- Page 12 14. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = low speed = medium speed = high speed button: This button turns the fan off. Fig.
