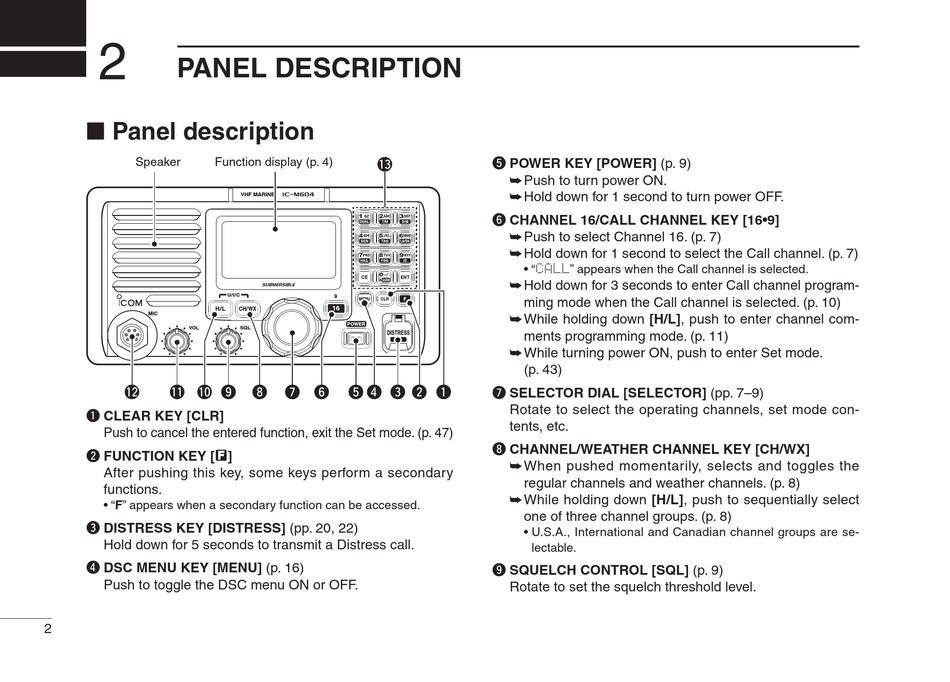

PANEL DESCRIPTION

■ Panel description
Speaker Function display (p. 4)
H/L
MIC
VOL
!2 !1 !0 o
q CLEAR KEY [CLR]
Push to cancel the entered function, exit the Set mode. (p. 47)
w FUNCTION KEY [O]
After pushing this key, some keys perform a secondary
functions.
• "F" appears when a secondary function can be accessed.
e DISTRESS KEY [DISTRESS] (pp. 20, 22)
Hold down for 5 seconds to transmit a Distress call.
r DSC MENU KEY [MENU] (p. 16)
Push to toggle the DSC menu ON or OFF.
2
!3
iM604
VHF MARINE
U/I/C
9
CH/WX 16
SQL
DISTRESS
i u y t r e w
t POWER KEY [POWER] (p. 9)
➥ Push to turn power ON.
➥ Hold down for 1 second to turn power OFF.
y CHANNEL 16/CALL CHANNEL KEY [16•9]
➥ Push to select Channel 16. (p. 7)
➥ Hold down for 1 second to select the Call channel. (p. 7)
• " " appears when the Call channel is selected.
➥ Hold down for 3 seconds to enter Call channel program-
ming mode when the Call channel is selected. (p. 10)
➥ While holding down [H/L], push to enter channel com-
ments programming mode. (p. 11)
➥ While turning power ON, push to enter Set mode.
(p. 43)
q
u SELECTOR DIAL [SELECTOR] (pp. 7–9)
Rotate to select the operating channels, set mode con-
tents, etc.
i CHANNEL/WEATHER CHANNEL KEY [CH/WX]
➥ When pushed momentarily, selects and toggles the
regular channels and weather channels. (p. 8)
➥ While holding down [H/L], push to sequentially select
one of three channel groups. (p. 8)
• U.S.A., International and Canadian channel groups are se-
lectable.
o SQUELCH CONTROL [SQL] (p. 9)
Rotate to set the squelch threshold level.
