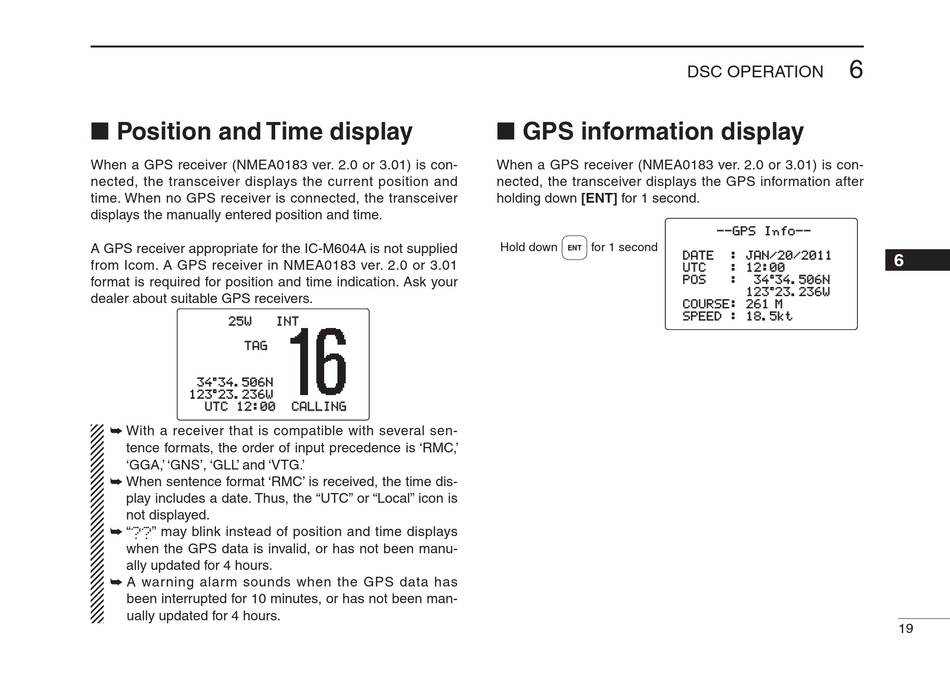

■ Position and Time display

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the current position and
time. When no GPS receiver is connected, the transceiver
displays the manually entered position and time.
A GPS receiver appropriate for the IC-M604A is not supplied
from Icom. A GPS receiver in NMEA0183 ver. 2.0 or 3.01
format is required for position and time indication. Ask your
dealer about suitable GPS receivers.
9 9
6#) 6#)
’0 ’0
’9 ’9
76% 76%
➥ With a receiver that is compatible with several sen-
tence formats, the order of input precedence is 'RMC,'
'GGA,' 'GNS', 'GLL' and 'VTG.'
➥ When sentence format 'RMC' is received, the time dis-
play includes a date. Thus, the "UTC" or "Local" icon is
not displayed.
➥ "??" may blink instead of position and time displays
when the GPS data is invalid, or has not been manu-
ally updated for 4 hours.
➥ A warning alarm sounds when the GPS data has
been interrupted for 10 minutes, or has not been man-
ually updated for 4 hours.
+06 +06
%#..+0) %#..+0)

■ GPS information display

When a GPS receiver (NMEA0183 ver. 2.0 or 3.01) is con-
nected, the transceiver displays the GPS information after
holding down [ENT] for 1 second.
Hold down for 1 second
6
DSC OPERATION
)25 )25 +PHQ +PHQ
&#6' &#6' ,#0 ,#0
76% 76%
215 215 ’0 ’0
’9 ’9
%1745' ’/ %1745' ’/
52''& MV 52''& MV
6
19
