9
CONNECTIONS AND MAINTENANCE

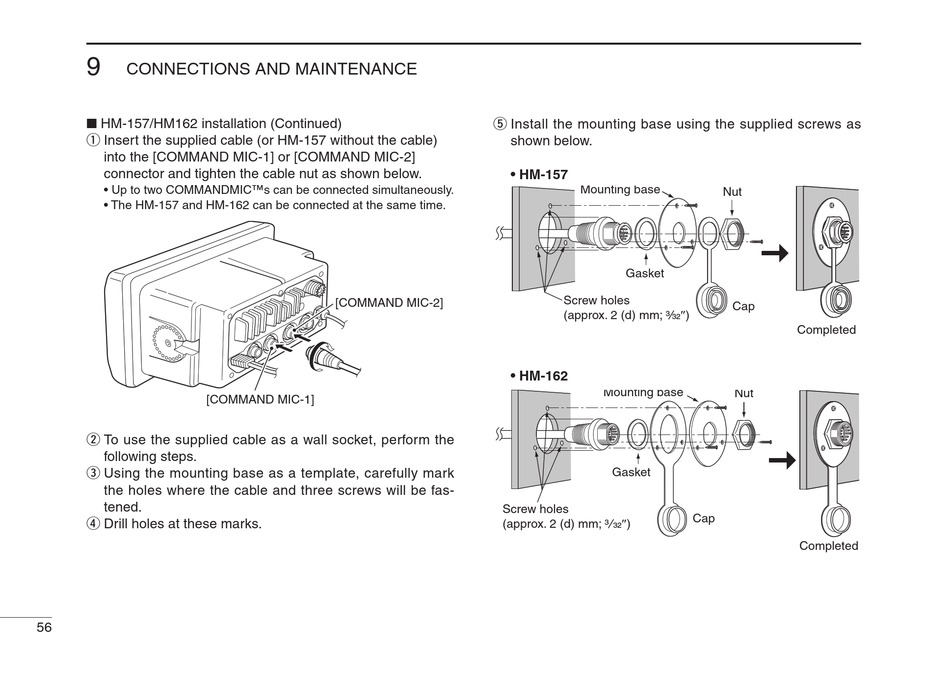

■ HM-157/HM162 installation (Continued)
q Insert the supplied cable (or HM-157 without the cable)
into the [COMMAND MIC-1] or [COMMAND MIC-2]
connector and tighten the cable nut as shown below.
• Up to two COMMANDMIC™s can be connected simultaneously.
• The HM-157 and HM-162 can be connected at the same time.
[COMMAND MIC-1]
w To use the supplied cable as a wall socket, perform the
following steps.
e Using the mounting base as a template, carefully mark
the holes where the cable and three screws will be fas-
tened.
r Drill holes at these marks.
56
t Install the mounting base using the supplied screws as
shown below.
• HM-157
[COMMAND MIC-2]
• HM-162
Screw holes
(approx. 2 (d) mm;
Mounting base
Nut
Gasket
Screw holes
Cap
")
(approx. 2 (d) mm; 3 32
Mounting base
Nut
Gasket
Cap
")
3 32
Completed
Completed
