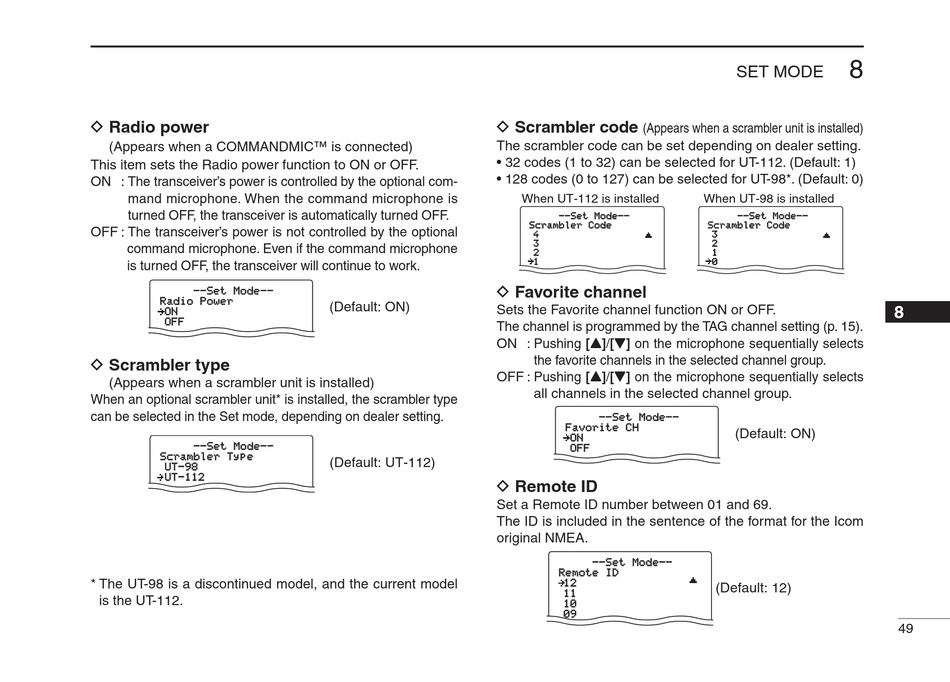

Icom IC-M604A Instruction Manual page 55

D Radio power
(Appears when a COMMANDMIC™ is connected)
This item sets the Radio power function to ON or OFF.
ON : The transceiver's power is controlled by the optional com-
mand microphone. When the command microphone is
turned OFF, the transceiver is automatically turned OFF.
OFF : The transceiver's power is not controlled by the optional
command microphone. Even if the command microphone
is turned OFF, the transceiver will continue to work.
5GV 5GV /QFG /QFG
4CFKQ 4CFKQ 2QYGT 2QYGT
10 10
1(( 1((
D Scrambler type
(Appears when a scrambler unit is installed)
When an optional scrambler unit* is installed, the scrambler type
can be selected in the Set mode, depending on dealer setting.
5GV 5GV /QFG /QFG
5ETCODNGT 6[RG 5ETCODNGT 6[RG
76 76
76 76
* The UT-98 is a discontinued model, and the current model
is the UT-112.
D Scrambler code
The scrambler code can be set depending on dealer setting.
• 32 codes (1 to 32) can be selected for UT-112. (Default: 1)
• 128 codes (0 to 127) can be selected for UT-98*. (Default: 0)
D Favorite channel
(Default: ON)
Sets the Favorite channel function ON or OFF.
The channel is programmed by the TAG channel setting (p. 15).
ON : Pushing [Y]/[Z] on the microphone sequentially selects
OFF : Pushing [Y]/[Z] on the microphone sequentially selects
(Default: UT-112)
D Remote ID
Set a Remote ID number between 01 and 69.
The ID is included in the sentence of the format for the Icom
original NMEA.
(Appears when a scrambler unit is installed)
When UT-112 is installed
5GV /QFG 5GV /QFG
5ETCODNGT 5ETCODNGT %QFG %QFG




the favorite channels in the selected channel group.
all channels in the selected channel group.
5GV 5GV /QFG /QFG
(CXQTKVG (CXQTKVG %* %*
10 10
1(( 1((
5GV /QFG 5GV /QFG
4GOQVG 4GOQVG +& +&




%.4 'ZKV  '06 1-
8
SET MODE
When UT-98 is installed
5GV /QFG 5GV /QFG
5ETCODNGT %QFG 5ETCODNGT %QFG




(Default: ON)
(Default: 12)
8
49
