Dynascan DS32CR User Manual
  1. Manuals
  2. Brands
  3. Dynascan Manuals
  4. Monitor
  5. DS32CR
  6. User manual

Dynascan DS32CR User Manual

Professional lcds public information display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Professional LCDs
Professional LCDs

User Manual

Version 4.00
The use of diagrams and illustrations in the manual for reference only, actual product may be different.
Product design and specifications are subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS32CR and is the answer not in the manual?

Questions and answers

Related Manuals for Dynascan DS32CR

Summary of Contents for Dynascan DS32CR

  • Page 1: User Manual

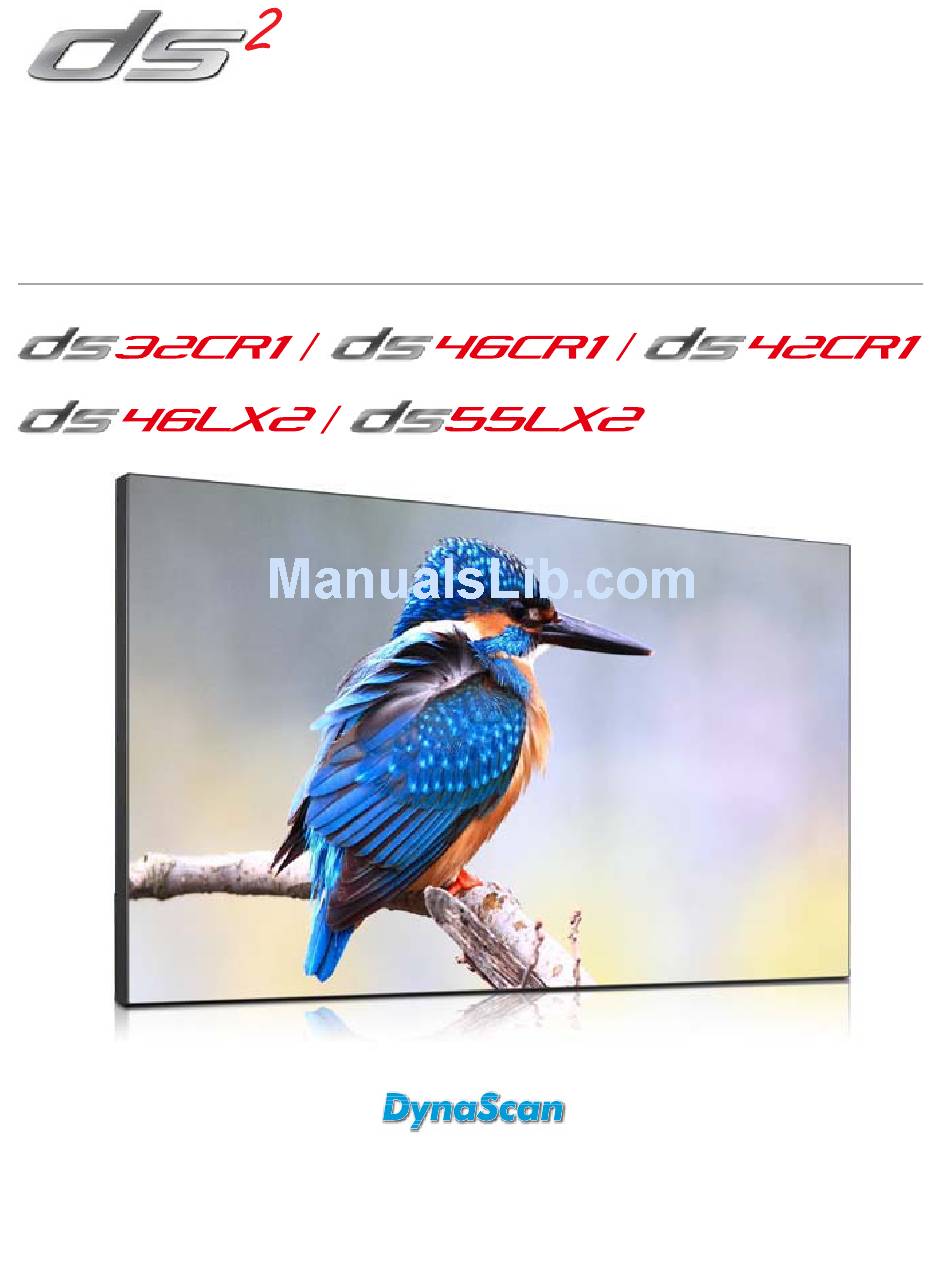

    Professional LCDs Professional LCDs User Manual Version 4.00 The use of diagrams and illustrations in the manual for reference only, actual product may be different. Product design and specifications are subject to change without notice...
  • Page 2 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series...

  • Page 3: Safety Instructions

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Safety Instructions Warnings and Precautions Read and follow these instructions when connecting and using your Public Information Display: KNOW THESE SAFETY SYMBOLS • Unplug the display if you are not going to use it for an extensive period of time.

  • Page 4: Regulatory Information

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Regulatory Information CE Declaration of Conformity Polish Center for Testing and Certification Notice We declare under our responsibility that the product is in conformity with the following standards: The equipment should draw power from a socket with an attached protection circuit (a three-prong socket).
  • Page 5 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. How to connect a plug: Important: The wires in the mains lead are coloured in accordance with the following code: This apparatus is supplied with an approved moulded 13A plug.
  • Page 6 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series China RoHS 中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有毒有害物质或元素 的名称及含量 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr 6+) (PBB) (PBDE) 外壳 液晶面板 电路板组件 附件 (遥控器， 电源线， 连接线) 遥控器电池 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下. X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要...
  • Page 7 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series North Europe (Nordic Countries) Information Waste Electrical and Electronie Equipment- WEEE Placering/Ventilation Attention users in European Union private VARNING: households FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH This marking on the product or on its packaging UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN...

  • Page 8: Table Of Contents

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Table Of Contents Unpacking and Installation ......................1 1.1. Unpacking ..........................1 1.2. Package Contents ........................1 1.3. Installation Notes ........................1 1.4. Installing and Removing Table Stands (optional) ..............2 1.5. Mounting on a Wall ........................3 Parts and Functions ........................5 2.1.
  • Page 9 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 4.2.5. CONFIGURATION1 menu ...................18 4.2.6. CONFIGURATION2 menu ...................19 4.2.7. CONFIGURATION3 menu ...................20 4.2.8. ADVANCED OPTION menu ..................21 Input Mode .............................23 Cleaning and Troubleshooting ....................24 6.1. Cleaning ..........................24 6.2. Troubleshooting ........................25 Technical Specifications ......................26...

  • Page 10: Unpacking And Installation

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it.

  • Page 11: Installing And Removing Table Stands (Optional)

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Power off the display. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. After inserting the stand in the guide block, tighten the screws on both sides of the display.

  • Page 12: Mounting On A Wall

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series To remove table stands: 1. Power off the display. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet. 4. Remove screws using a screwdriver and place them in a safe place for reuse.
  • Page 13 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).

  • Page 14: Parts And Functions

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Parts and Functions 2.1. Control Panel MUTE INPUT MENU MUTE INPUT MENU DS46LX2 DS32CR \DS42CR \DS46CR series MENU DS55LX2 POWER button MENU button Use this button to turn the display on or put the display to Return to previous menu while OSD menu is on, or to standby.

  • Page 15: Input/Output Terminals

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 2.2. Input/Output Terminals DS32CR1 DS42CR1 /DS46CR1 DS46LX2 DS55LX2 DS32CR1 (OUT) (OUT) (OUT) (IN) (IN) (IN) DS42CR1 /DS46CR1 /DS46LX2 /DS55LX2 (OUT) (OUT) (OUT) (IN) (IN) (IN) MAIN POWER SWITCH AUDIO IN 1, 2, 3 Press to switch the main power on/off.

  • Page 16: Remote Control

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 2.3. Remote Control [DISPLAY] button Press to turn on/off the information OSD displayed on the upper right corner of the screen. 2.3.1. General functions [ ] button • Press to move the selection left in OSD menu.

  • Page 17: Inserting The Batteries In The Remote Control

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 2.3.2. Inserting the batteries in the remote 2.3.4. Operating range of the remote control control Point the top of the remote control toward the display’s remote control sensor when pressing a button. The remote control is powered by two 1.5V AAA batteries.

  • Page 18: Connecting External Equipment

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Connecting External Equipment 3.1. Using the Switch Cover A cover for the power switch is provided to prevent the display from being turned on or off accidentally. To lock the cover into position: 1. Align and insert the cover to the indentation located beside the main switch.

  • Page 19: Connecting External Equipment (Dvd/Vcr/Vcd)

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 3.2. Connecting External Equipment (DVD/VCR/VCD) 3.2.1. Using COMPONENT video input COMPONENT (YPbPr) Audio Output DVD / VCR / VCD COMPONENT (YPbPr) To [AUDIO IN 2, 3] 3.2.2. Using HDMI video input DVD / VCR / VCD...

  • Page 20: Connecting A Pc

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 3.3. Connecting a PC 3.3.1. Using VGA input From analog VGA output Mini D-Sub 15 pin From audio output PC or IBM compatible To [AUDIO IN 1, 2, 3] To [VGA IN] 3.3.2. Using DVI input...

  • Page 21: Using Hdmi Input

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 3.3.3. Using HDMI input From HDMI output PC or IBM compatible To [HDMI IN]...

  • Page 22: External Audio Connection

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 3.4. External Audio Connection 3.4.1. Connecting external speakers External speaker 3.4.2. Connecting an external audio device To [AUDIO OUT] Audio In Stereo Amplifier...

  • Page 23: Connecting Multiple Displays In A Daisy-Chain Configuration

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 3.5. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.5.1. Video connection Connect one of the following: • Connect the [RS232C OUT] connector of display 1 to the [RS232C IN] connector of display 2.

  • Page 24: Osd Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series OSD Menu 4.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is 4.2.1. PICTURE menu shown below. You can use it as a reference for further adjusting your display. 4.1.

  • Page 25: Screen Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series GAMMA SELECTION H POSITION Gamma is what controls the overall brightness of an image. Press the [ ] button to move the image to the right, or [ ] to Images which are not corrected properly can appear too white move the image to the left.

  • Page 26: Audio Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series AUDIO RESET H ZOOM Expands the horizontal size of the image Reset all settings in the AUDIO menu to factory preset values. only. 4.2.4. PIP menu V ZOOM Expands the vertical size of the image only.

  • Page 27: Configuration1 Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series (O: PIP function available, X: PIP function unavailable) SCHEDULE By pressing the [PIP ON/OFF] button on the remote control, you can change the mode in the order shown below: TODAY 2011 . 08 . 04...

  • Page 28: Configuration2 Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series DATE AND TIME OSD V POSITION Adjust the current date and time for the display’s internal clock. Adjust the vertical position of the OSD menu. INFORMATION OSD DATE AND TIME Set the period of time the information OSD displayed on the...

  • Page 29: Configuration3 Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Example: 5 x 5 screen matrix (25 displays) not compliant with it, images may not be displayed H MONITORS = 5 displays correctly. V MONITORS = 5 displays CONFIGURATION2 RESET H MONITORS Reset all settings in the CONFIGURATION2 menu to factory preset values.

  • Page 30: Advanced Option Menu

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series • {DVI MODE}: Used for DVI-D signal. SCREEN SAVER • Select {DVI-PC} when the source device is a PC. COOLING FAN AUTO • Select {DVI-HD} when the source device is a video device. BRIGHTNESS MOTION • {HDMI SIGNAL}: Used for HDMI signal.
  • Page 31 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series LAN SETTING DHCP CLIENT IP ADDRESS SUBNET MASK DEFAULT GATEWAY :SEL +-:ADJ :RETURN :EXIT MENU EXIT MENU • DHCP - Choose to enable or disable the DHCP function. If enabled, the display will be assigned IP address, Subnet mask and Default gateway automatically.

  • Page 32: Input Mode

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz...

  • Page 33: Cleaning And Troubleshooting

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Cleaning and Troubleshooting 6.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 34: Troubleshooting

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 6.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is switched the display is not switched on.

  • Page 35: Technical Specifications

    DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Technical Specifications DS32CR1 Display: Item Specifications Screen Size (Active Area) 32” LCD Aspect ratio 16:9 Number of pixels 1366 (H) x 768 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors...
  • Page 36 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Weight (With Stand) 14 Kg Weight (Without Stand) 12.8 Kg Gross Weight 17 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation)
  • Page 37 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series DS42CR1 Display: Item Specifications Screen Size (Active Area) 42” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors Brightness (typical)
  • Page 38 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 39 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series DS46CR1 Display: Item Specifications Screen Size (Active Area) 46” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 16.7M colors Brightness (typical)
  • Page 40 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 41 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series DS46LX2 Display: Item Specifications Screen Size (Active Area) 46” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.176 (H) x 0.176 (V) [mm] Displayable colors 16.7M colors Brightness (typical)
  • Page 42 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 43 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series DS55LX2 Display: Item Specifications Screen Size (Active Area) 55” LCD Aspect ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.63 (H) x 0.63 (V) [mm] Displayable colors 16.7M colors Brightness (typical)
  • Page 44 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 45 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series 2012 © All rights reserved. Specifications are subject to change without notice.
  • Page 46 DS32CR \DS42CR \DS46CR \DS46LX \DS55LX Series...

This manual is also suitable for:

Ds42crDs46crDs46lxDs55lxDs32cr1Ds46cr1 ... Show all

Table of Contents
