75DRV/75DRV-X

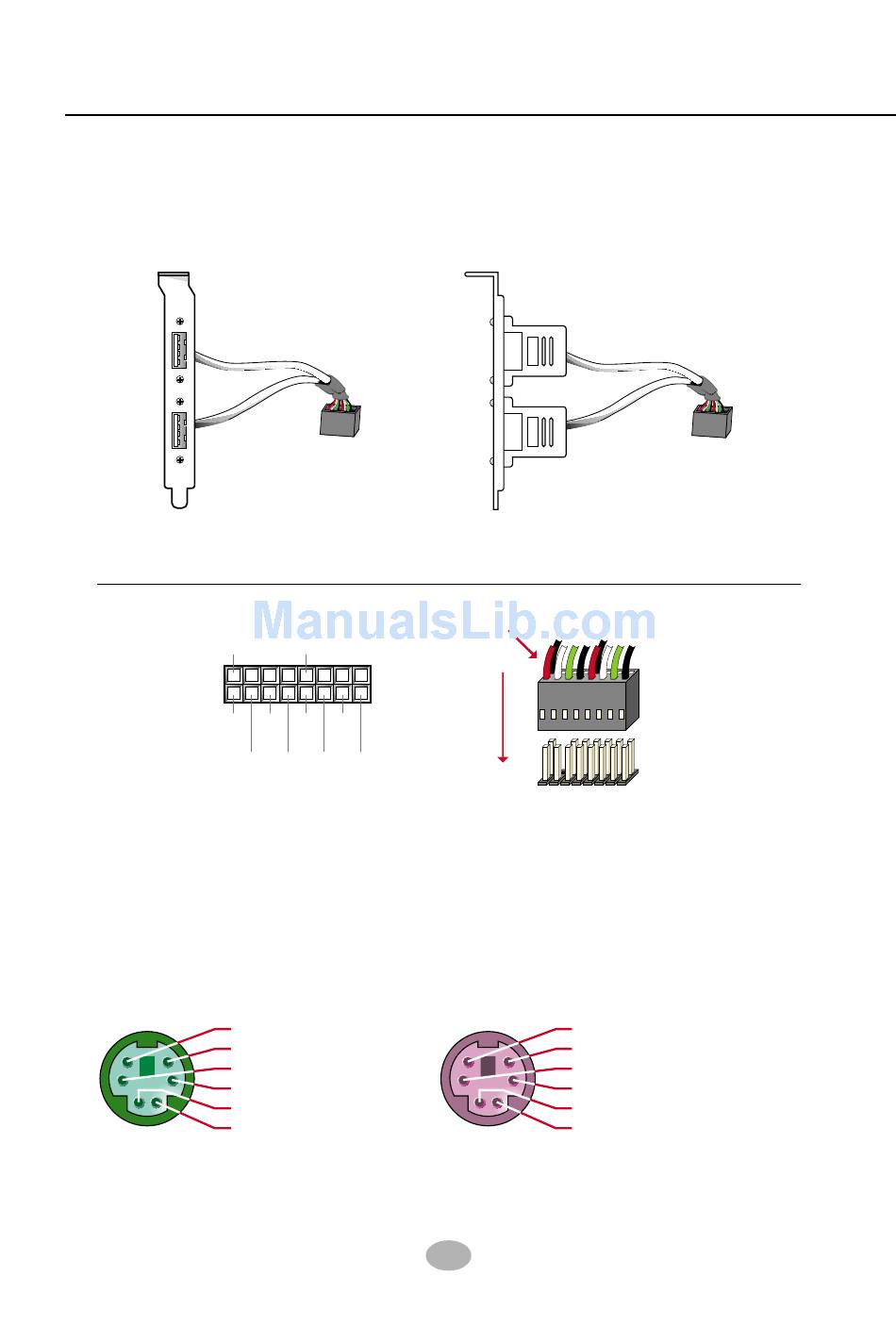

2-7.10 USB Header (USB2/USB3 Header)

• This header is for connecting the additional USB cable to provides you
additional two USB ports. User can order the additional USB cable from
your mainboard dealer and vender.
Additional USB Cable (Optional)
GND
Black
1
Red Green
VCC DO+
White
DO-
USB 2 / USB3 Header
• When plugging the USB cable into USB2/USB3 HEADER, users must
make sure the red wire is connected to the first pin.

2-7.11 PS/2 Mouse And PS/2 Keyboard

PIN 6 : None
PIN 5 : Mouse Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Mouse Data
PS/2 MOUSE
GND
Black
16
Red Green
DO+
VCC
Black White Black
GND DO- GND
40
red wire
1
1
USB 2 / USB 3 Header
PIN 6 : None
PIN 5 : Keyboard Clock
PIN 4 : Vcc
PIN 3 : GND
PIN 2 : None
PIN 1 : Keyboard Data
PS/2 KEYBOARD
16
